Transmission Housing Sound Insulator Removal (MHS)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

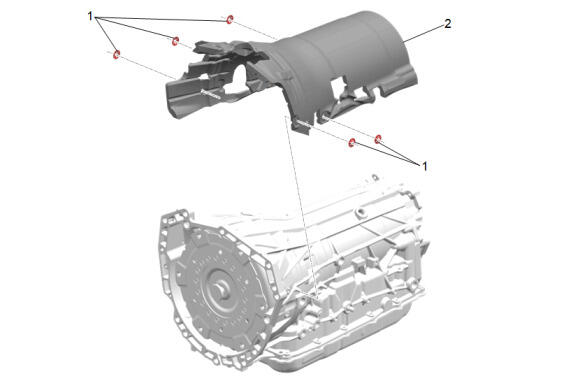

  1. GM6001734Courtesy of GENERAL MOTORS COMPANY

    Transmission Nut (1) - Remove [5x]

  2. Transmission Housing Sound Insulator (2) - Remove
