Transmission Housing Sound Insulator Installation (MHX MQ2)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

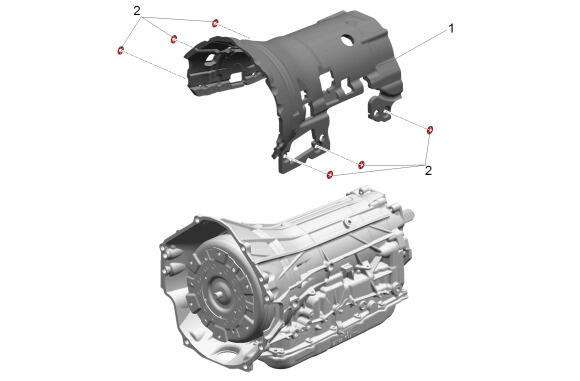

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Transmission Housing Sound Insulator |
| 2 |
Transmission Housing Sound Insulator Retaining Clip [6x]
NOTE:
10L80 Retaining Clip Qty [5x], 10L90 Retaining Clip Qty [6x].
|
