Transmission Housing Sound Insulator Installation (MHS)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

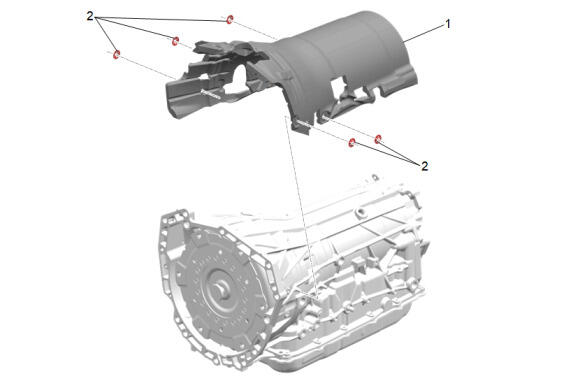

  1. GM6001735Courtesy of GENERAL MOTORS COMPANY

    Transmission Housing Sound Insulator (1) - Install

  2. Transmission Nut (2) - Install [5x]
