Output Carrier Assembly and Output Carrier Thrust Bearings Removal (2WD)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

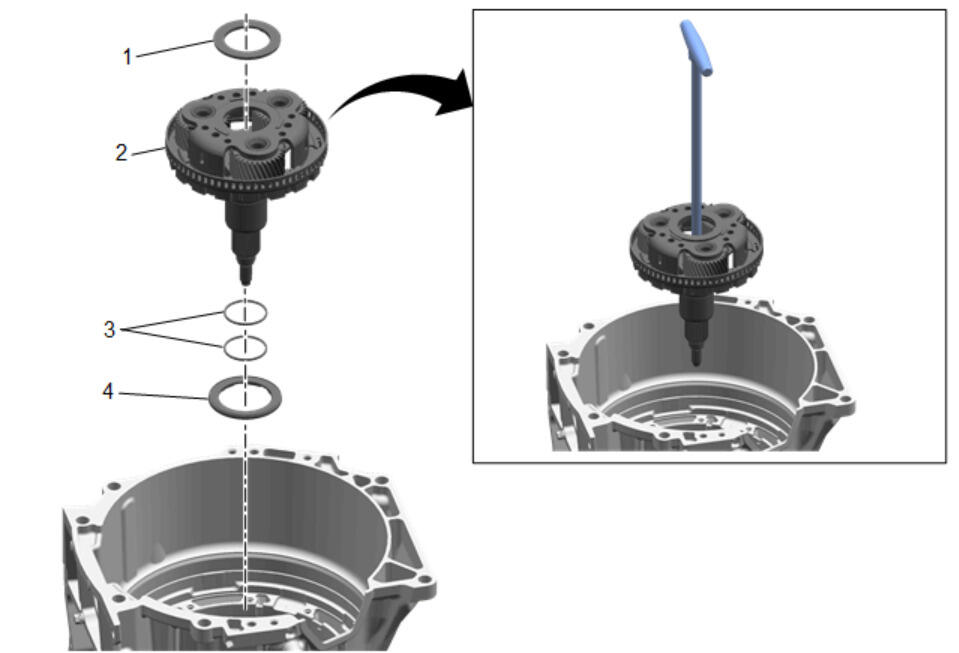

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Output Carrier Thrust Bearing Assembly |
| 2 | Output Carrier Assembly Special Tools DT-50921 Output Carrier Lifter Equivalent regional tools: Special Tools |
| 3 | Output Shaft Seal Procedure DISCARD the seals. |
| 4 | Output Carrier Thrust Bearing Assembly |
