Output Carrier Assembly and Output Carrier Thrust Bearings Installation (2WD)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

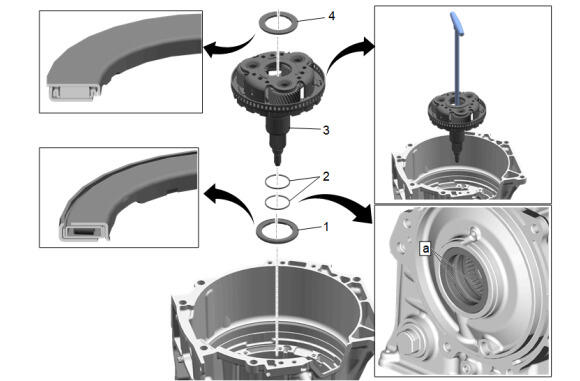

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Output Carrier Thrust Bearing Assembly Procedure Ensure proper orientation.
2	Output Shaft Seal Procedure Use NEW seals.
3	Output Carrier Assembly Procedure Apply DT-36850 Transjel Lubricant to the dog bone and bearing (a) before installing the carrier into the case. Ensure transmission is NOT in Park, this will ease in installation. Special Tools DT-36850 Transjel Lubricant DT-50921 Output Carrier Lifter Equivalent regional tools: Special Tools
4	Output Carrier Thrust Bearing Assembly Procedure Ensure proper orientation.
