Auxiliary Fluid Pump Installation
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

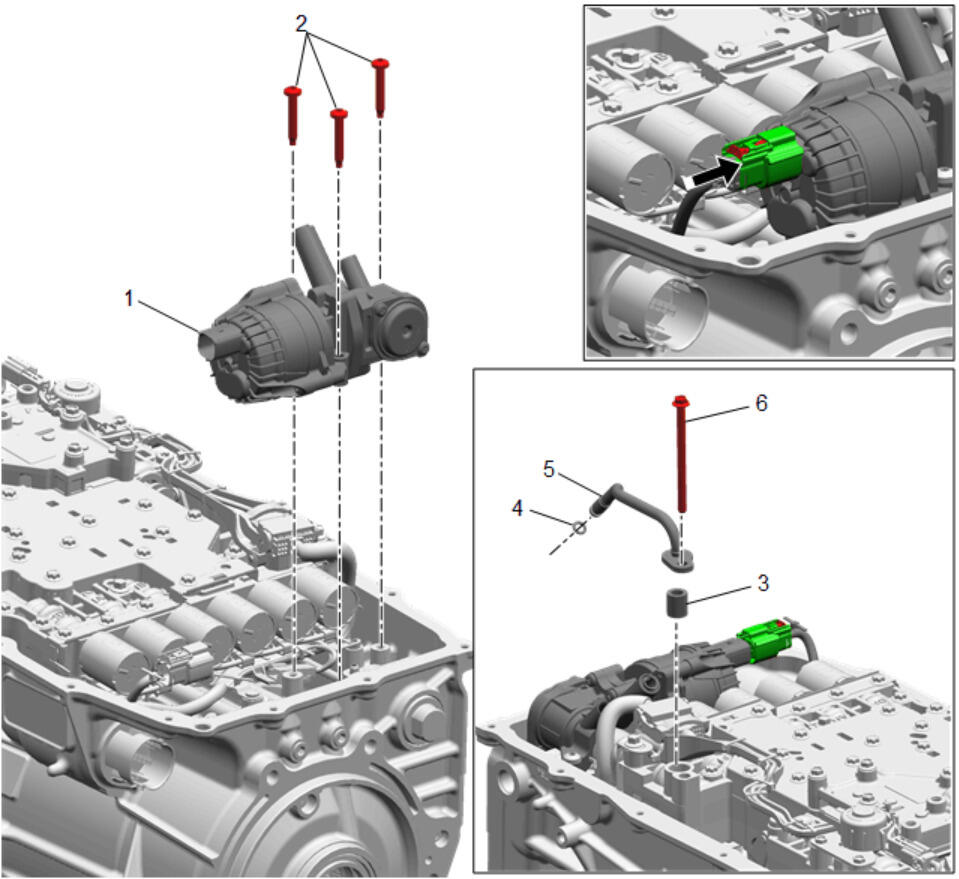

Automatic Transmission Auxiliary Fluid Pump (1) - Install
- Connect the electrical connector.
- Automatic Transmission Auxiliary Fluid Pump Bolt (2) - Install and tighten [3x]10.5 N.m (93 lb in)
- Automatic Transmission Auxiliary Fluid Pump Seal (3) - Install NEW
- Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (4) - Install NEW
- Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (5) - Install
- Control Valve Upper Body Bolt (6) - Install and tighten9 N.m (80 lb in)
CAUTION:
Refer to Fastener Caution .
