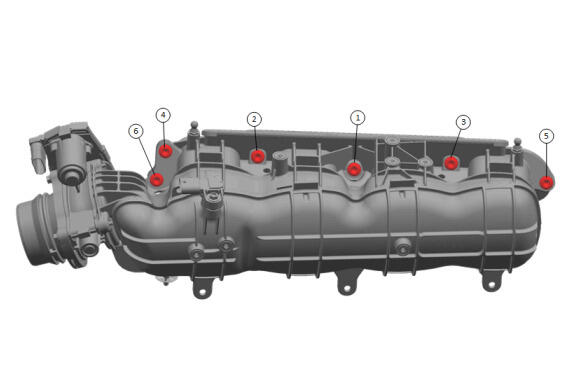

Intake Manifold Bolt Sequence
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Intake Manifold Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Intake Manifold Bolt [6x] | - | - | First Pass: 5 N.m (44 lb in) Final Pass: 15 N.m (11 lb ft) |
Intake Manifold Replacement |
