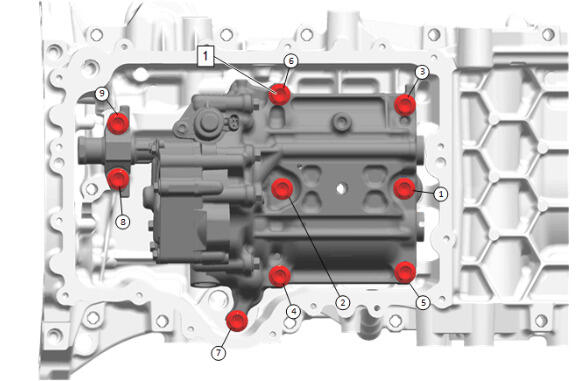

Balancer Shaft Housing Bolt Sequence
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Balancer Shaft Housing Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Balancer Shaft Housing Bolt [9x] | - | - | 25 N.m (18 lb ft) | Lower Crankcase Extension Overhaul (RWD) , or Lower Crankcase Extension Overhaul (AWD) |
