Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

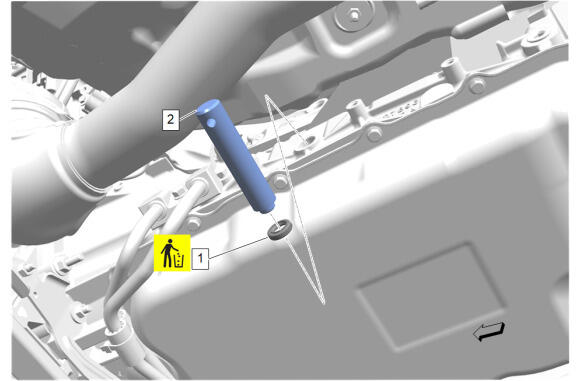

  1. GM6043699Courtesy of GENERAL MOTORS COMPANY

    Using the DT-47770  seal installer (2) Install a NEW seal.

  2. GM5672342Courtesy of GENERAL MOTORS COMPANY

    Manual Shift Shaft (1) - Install - Manual Shift Shaft Replacement (LSY with AWD) , or Manual Shift Shaft Replacement (LGY with RWD) , or Manual Shift Shaft Replacement (LGY with AWD) , or Manual Shift Shaft Replacement
