Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

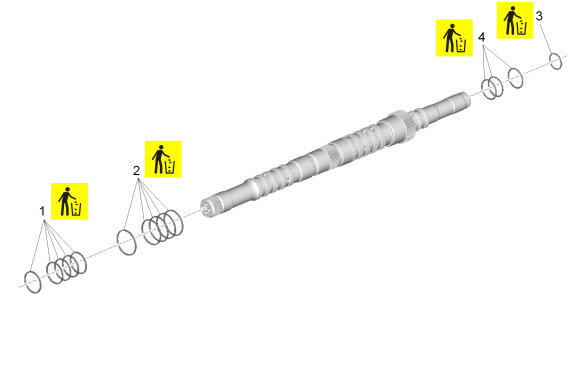

  1. GM5448364Courtesy of GENERAL MOTORS COMPANY

    Turbine Shaft Seal (1) - Remove and DISCARD [5x]

  2. Turbine Shaft Seal (2) - Remove and DISCARD [5x]
  3. Turbine Shaft Seal (3) - Remove and DISCARD
  4. Turbine Shaft Seal (4) - Remove and DISCARD [3x]
