Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

DT-47770  Seal Installer

Equivalent regional tools: Special Tools

  1. GM5112003Courtesy of GENERAL MOTORS COMPANY

    Park Pawl Actuator Assembly (1) - Install

  2. Park Release Lever (2) - Install
  3. Manual Shift Shaft (3) - Install
    4. NOTE:

    Install the NEW pin so equal amounts stick out from either side of the manual shaft.

  4. Manual Shift Shaft Pin (4) - Install NEW

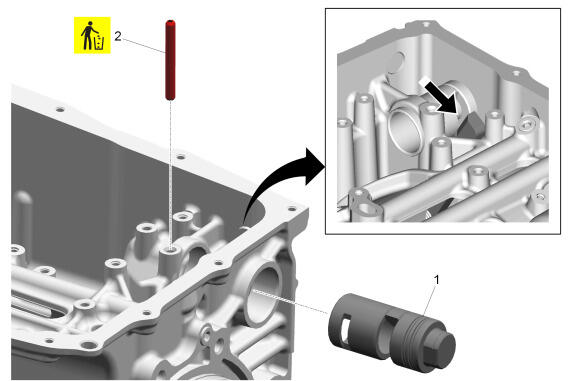

  1. GM5436520Courtesy of GENERAL MOTORS COMPANY

    Pull the park pawl away indicated by the arrow, then install the Park Pawl Actuator Guide Assembly (1) into the case.

  2. Park Pawl Actuator Guide Assembly (1) - Install
    3. CAUTION:

    Refer to Pin Reuse Caution

  3. Park Pawl Actuator Guide Pin (2) - Install NEW

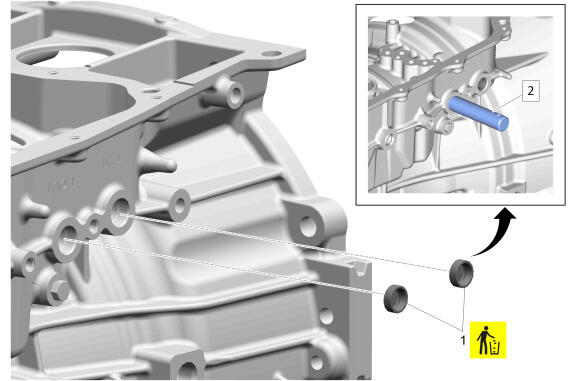

  1. GM5428727Courtesy of GENERAL MOTORS COMPANY

    Use DT-47770  Seal Installer (2) to install the Transmission Fluid Cooler Pipe Fitting Seal (1).

  2. Transmission Fluid Cooler Pipe Fitting Seal (1) - Install NEW [2x]
