Special Tools
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- DT-50921
Output Carrier Lifter
- J-26941
Bushing and Bearing Remover
Equivalent regional tools: Special Tools
 Courtesy of GENERAL MOTORS COMPANY
|

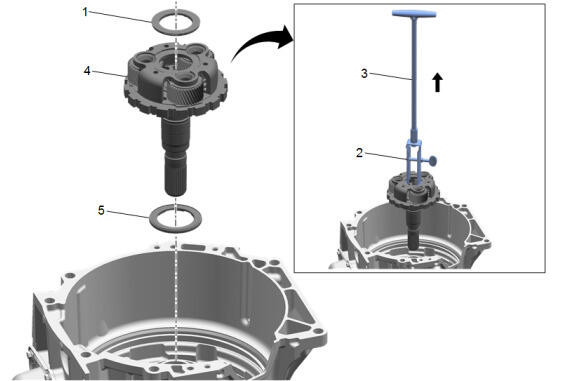

Output Carrier Thrust Bearing Assembly (1) - Remove
- Install DT-50921
Output Carrier Lifter (3) and J-26941
Bushing and Bearing Remover (2) to the Output Carrier Assembly (4).
- Output Carrier Assembly (4) - Remove
- Output Carrier Thrust Bearing Assembly (5) - Remove
 Courtesy of GENERAL MOTORS COMPANY
|
Output Shaft Seal (1) - Remove and DISCARD [2x]
