Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

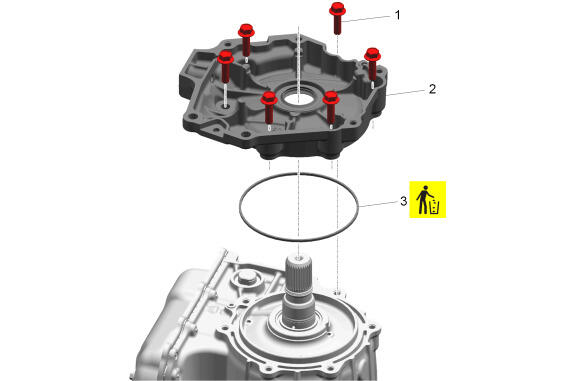

  1. GM5404936Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Case Extension Bolt (1) - Remove [6x]

  2. Allow any remaining transmission fluid to drain from the case extension.
  3. Automatic Transmission Case Extension (2) - Remove
  4. Automatic Transmission Case Extension Seal (3) - Remove and DISCARD
