Special Tools
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- DT-50897 Bearing Installer
- DT-8092 Driver Handle
- J-38869 Seal Installer
Equivalent regional tools: Special Tools

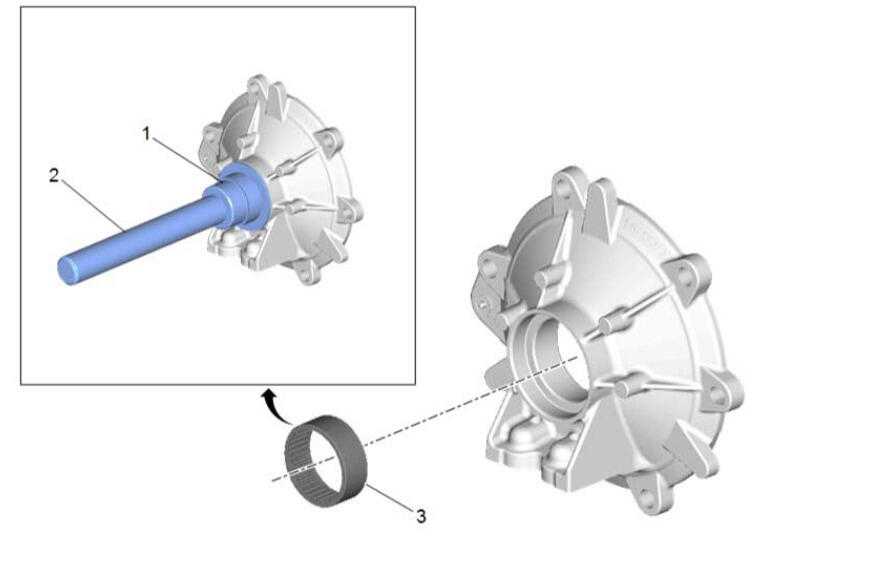

Use the DT-50897 Bearing Installer (1) and the DT-8092 Driver Handle (2) to install the Output Shaft Bearing (3) with an arbor press.
- Output Shaft Bearing (3) - Install

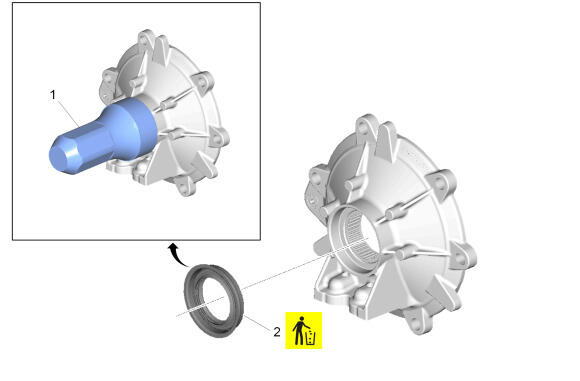

Use the J-38869 Seal Installer (1) to install the Propeller Shaft Transmission Flange Fluid Seal (2).
- Propeller Shaft Transmission Flange Fluid Seal (2) - Install NEW
