Timing Chain Upper Cover Bolt Sequence

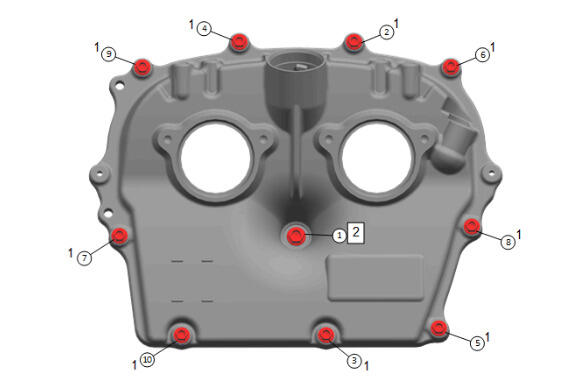

Timing Chain Upper Cover Bolt Sequence
GM5903240Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Timing Chain Upper Cover Bolt - M5 [9x] - - 8.5 N.m (75 lb in) TIMING CHAIN UPPER COVER REPLACEMENT
2 Timing Chain Upper Cover Bolt - M6 - - 15 N.m (11 lb ft) TIMING CHAIN UPPER COVER REPLACEMENT
