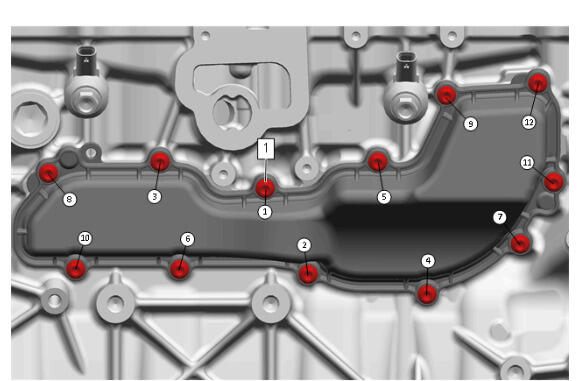

Positive Crankcase Ventilation Baffle Bolt Sequence

GM5026491Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification
Metric (English)		 Procedure Link
1 Positive Crankcase Ventilation Oil Separator Cover Bolt [11x] - - 8.5 Y (75 lb in) Positive Crankcase Ventilation Baffle Replacement
