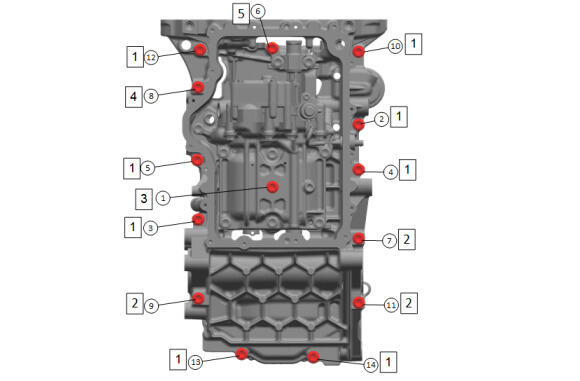

Lower Crankcase Extension Bolt Sequence - AWD

Lower Crankcase Extension Bolt Sequence - AWD
Courtesy of GENERAL MOTORS COMPANY
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
				Metric (English)
1	Lower Crankcase Extension Bolt [8x]	-	-	36 N.m (27 lb ft)	LOWER CRANKCASE EXTENSION REPLACEMENT (AWD)
2	Lower Crankcase Extension Bolt [3x]	-	-	36 N.m (27 lb ft)	LOWER CRANKCASE EXTENSION REPLACEMENT (AWD)
3	Lower Crankcase Extension Bolt	-	-	36 N.m (27 lb ft)	LOWER CRANKCASE EXTENSION REPLACEMENT (AWD)
4	Lower Crankcase Extension Bolt	-	-	36 N.m (27 lb ft)	LOWER CRANKCASE EXTENSION REPLACEMENT (AWD)
5	Lower Crankcase Extension Bolt	-	-	36 N.m (27 lb ft)	LOWER CRANKCASE EXTENSION REPLACEMENT (AWD)
