Intake Manifold Bolt Sequence

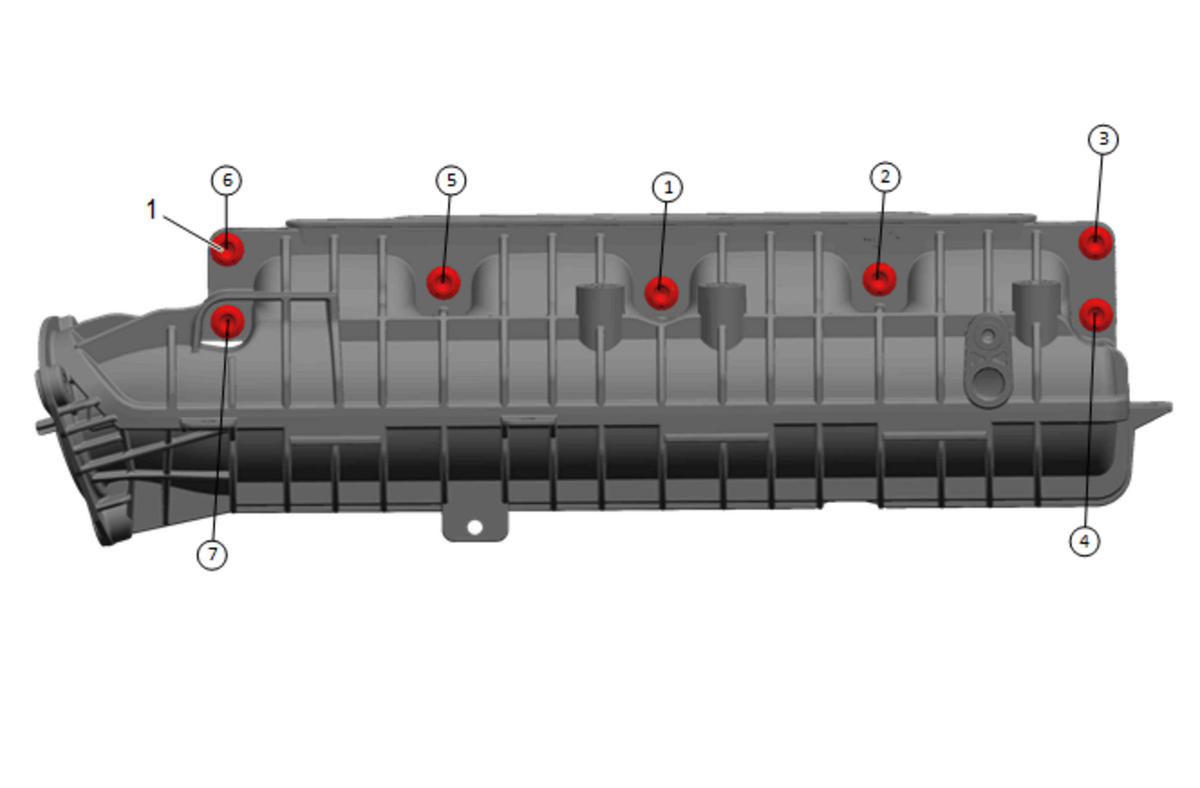

Intake Manifold Bolt Sequence
GM5087340Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intake Manifold Bolt [7x] - - First Pass: 5 N.m (44 lb in)
Final Pass: 15 N.m (11 lb ft)		 Intake Manifold Replacement
