Engine Front Cover Bolt Bolt Sequence

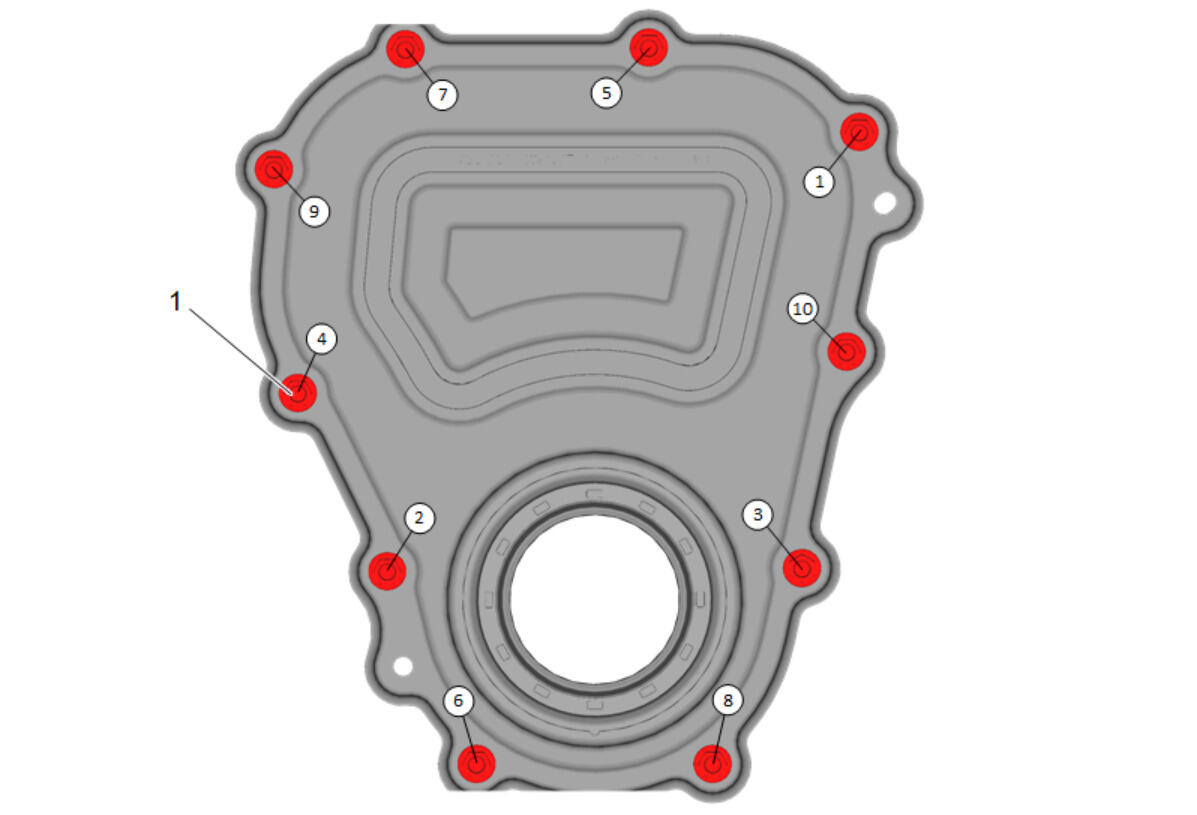

Engine Front Cover Bolt Bolt Sequence
GM5021113Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Front Cover Bolt [10x] - - 8.5 N.m (75 lb in) Engine Front Cover Replacement
