Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the oil fill cap.
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT remove oil filter.

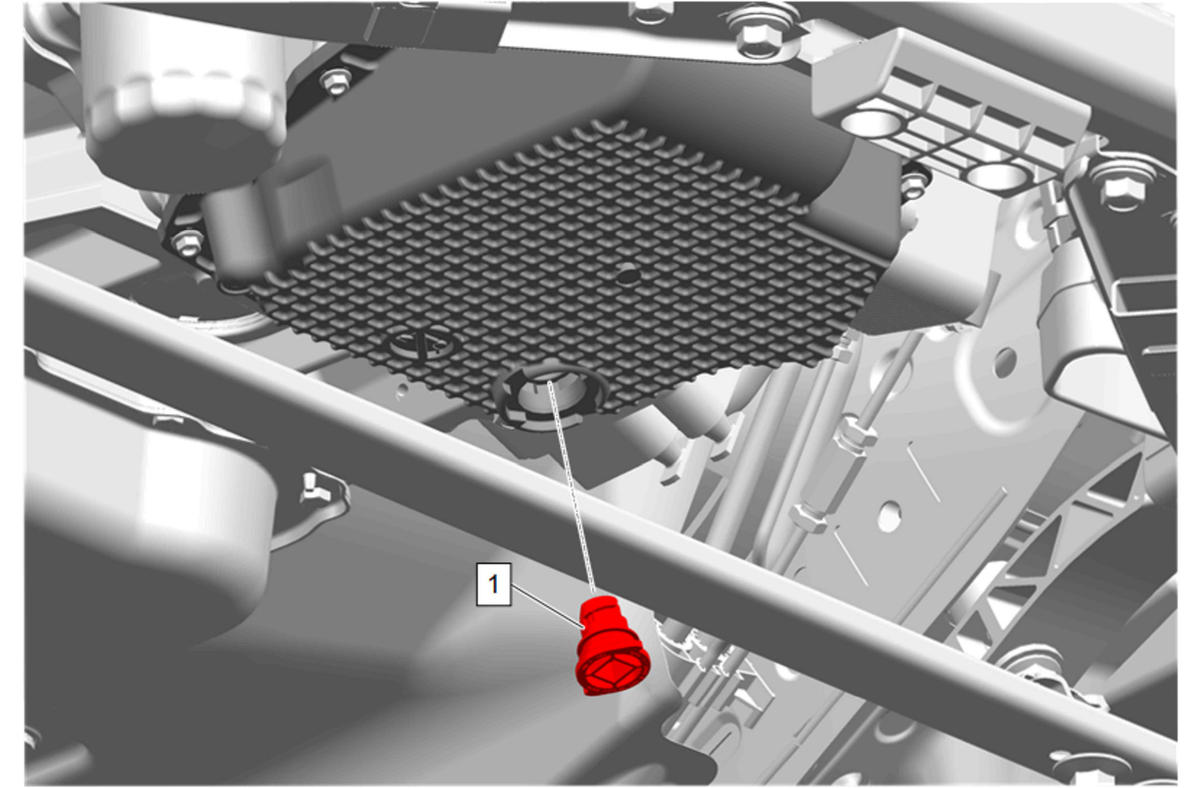

Oil Pan Drain Plug (1) - Remove
Drain the engine oil into a suitable container.
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Front Crossmember Brace Nut (1) - Remove [4x]
{If equipped} Front Crossmember Brace (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

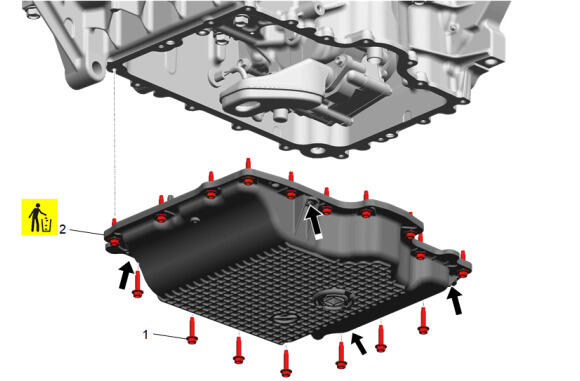

Lower Oil Pan Bolt (1) - Remove [17x]

NOTE:

Do not pry on the oil pan to lower crankcase extension as the sealing surface will become damaged.

Locate the four threaded insert jack screw locations on the lower oil pan. Use four lower oil pan bolts in these locations, and tighten the bolts by hand 1 to 2 turns each in a uniform manner, rotating between bolts until the oil pan has full separation from the lower crankcase extension.
Oil Pan (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Oil Pump Suction Pipe Bolt (1) - Remove
Oil Pump Suction Pipe (2) - Remove
Oil Pump Suction Pipe Gasket (3) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

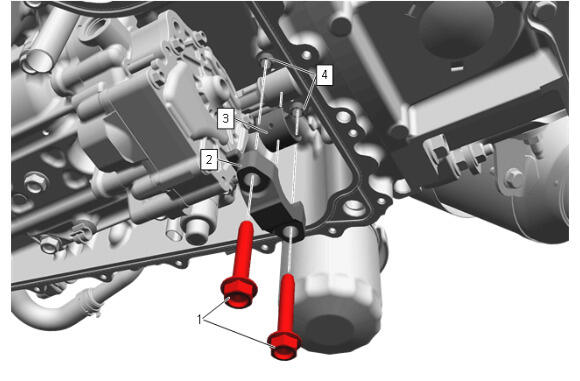

Balancer Shaft Housing Bolt (1) - Remove [2x]
Balancer Shaft Bearing Cap (2) - Remove
Balancer Shaft Bearing (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Leave one oil pump bolt threaded into the oil pump to assist with oil pump removal.

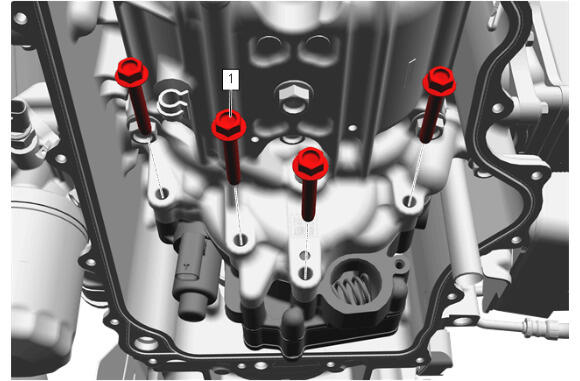

Oil Pump Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:

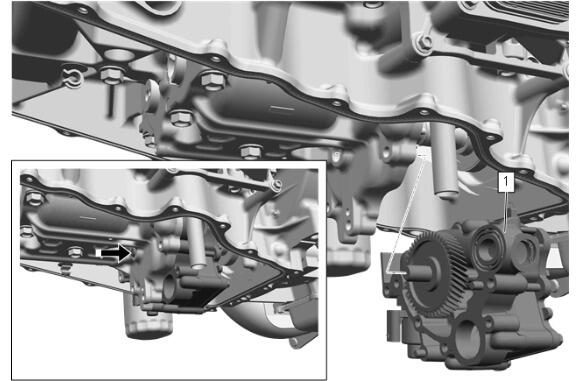

Apply pressure on the oil pump drive shaft as indicated by the arrow to keep the oil pump drive shaft inside of the oil pump while removing the oil pump.

Oil Pump (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

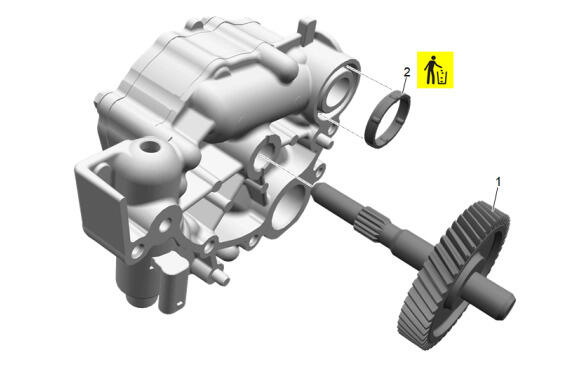

Oil Pump Drive Shaft (1) - Remove
Oil Pump Gasket (2) - Remove and DISCARD
