Special Tools
EN-45299 Engine Preluber
Equivalent regional tools: Special Tools
- Remove the oil fill cap.
Intake Manifold Cover Bolt (1) - Remove [2x]
- Lift up on the front of the intake manifold cover (2).
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Disconnect the electrical connector.

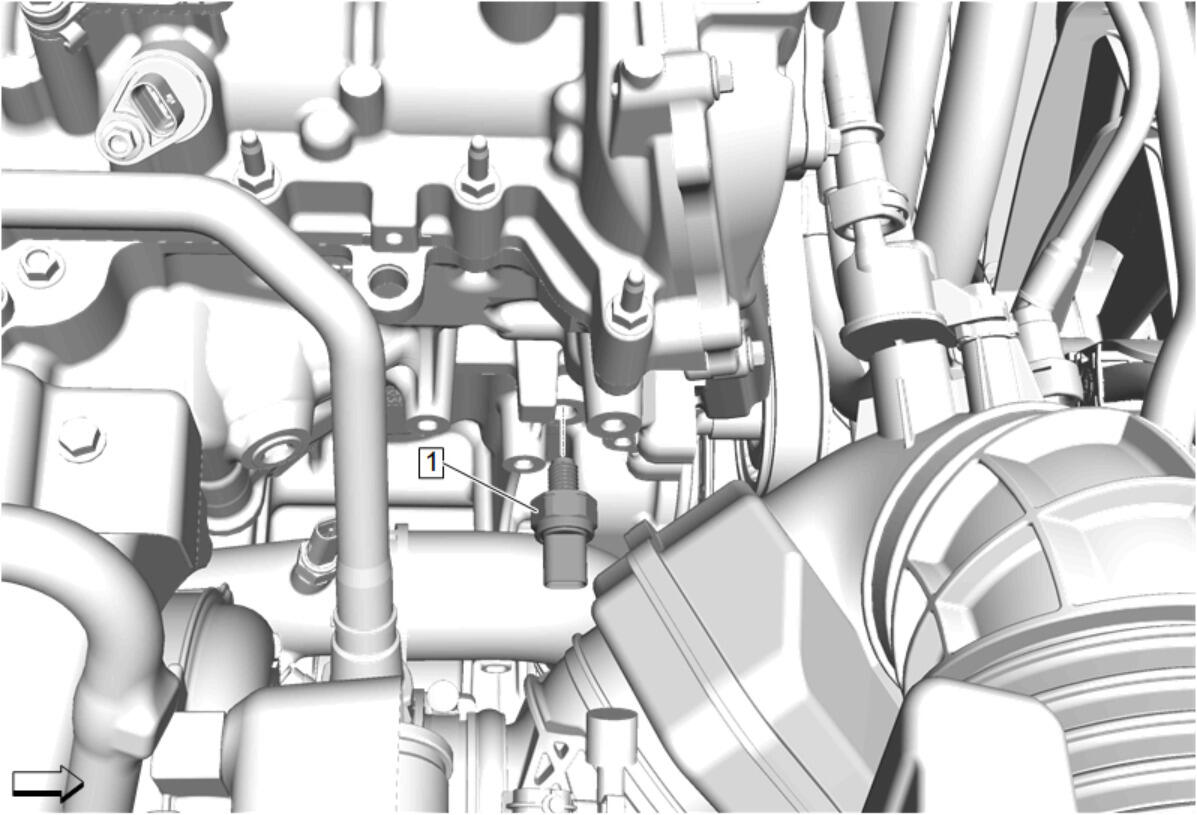

- Engine Oil Pressure Sensor (1) - Remove
- Install the M12 x 1.75 adapter.
Install the flexible hose to the adapter and open the valve.
- Pump the handle on the EN-45299 Engine Preluber (1) in order to flow a minimum of 1 - 1.9 liters (1 - 2 quarts) of engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
- Close the valve and remove the flexible hose and adapter from the engine.
- CAUTION:
Refer to Component Fastener Tightening Caution .
Engine Oil Pressure Sensor (1) - Install - Fastener Specifications
- Connect the electrical connector.
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Push down on the front of the intake manifold cover (2).
- Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the oil fill cap.
- Fill the engine oil to the proper level with NEW engine oil.
If any malfunction is experienced which may cause debris to enter the oil supply, you must replace the engine oil cooler and hoses if equipped. Debris in the engine oil cooler and oil cooler hoses may be pulled back into the engine causing severe engine damage.
A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Ensure an approved engine oil is used, as specified in the owners manual.
Refer to Fastener Caution .
