Disassemble Procedure

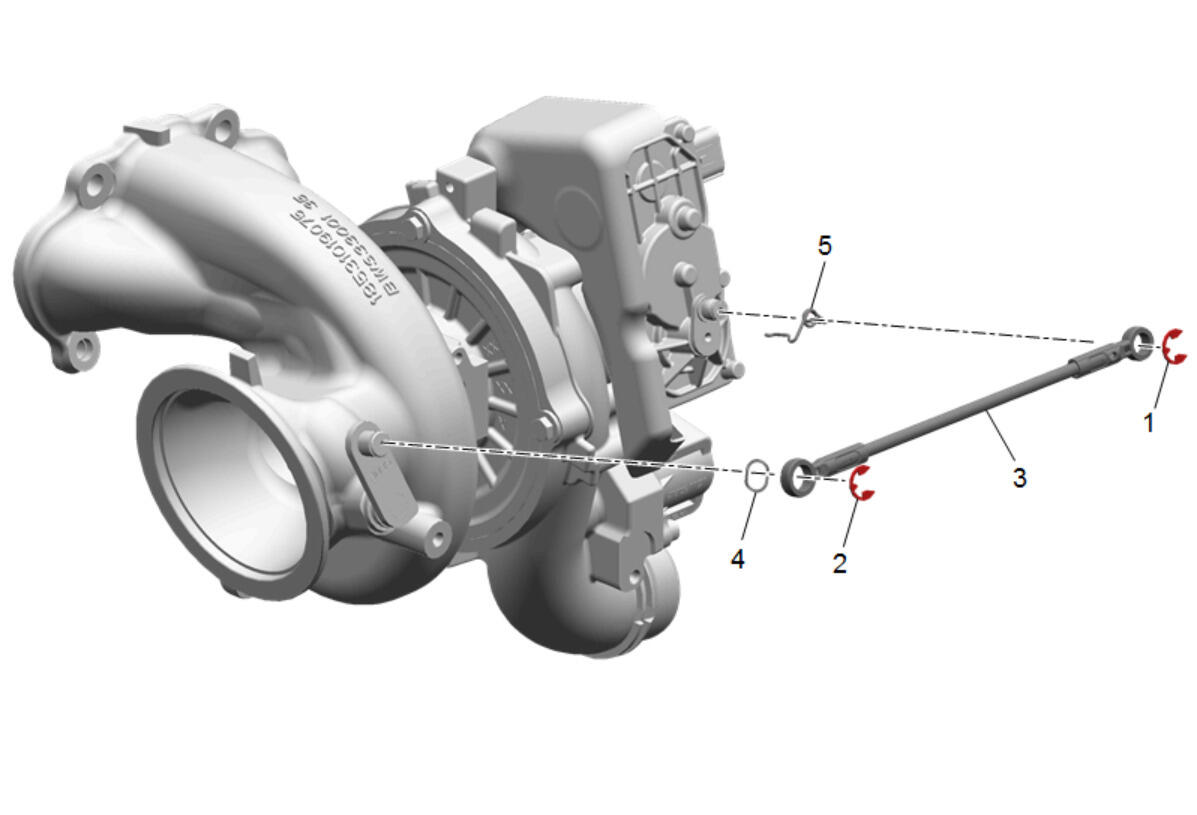

  1. GM5043400Courtesy of GENERAL MOTORS COMPANY

    Compressor Air Intake Turbocharger Wastegate Valve Link Clip (1) - Remove

  2. Compressor Air Intake Turbocharger Wastegate Actuator Link Clip (2) - Remove
  3. Compressor Air Intake Turbocharger Wastegate Actuator Rod (3) - Remove
  4. Compressor Air Intake Turbocharger Wastegate Actuator Link Spring (4) - Remove
  5. Compressor Air Intake Turbocharger Wastegate Valve Link Spring (5) - Remove

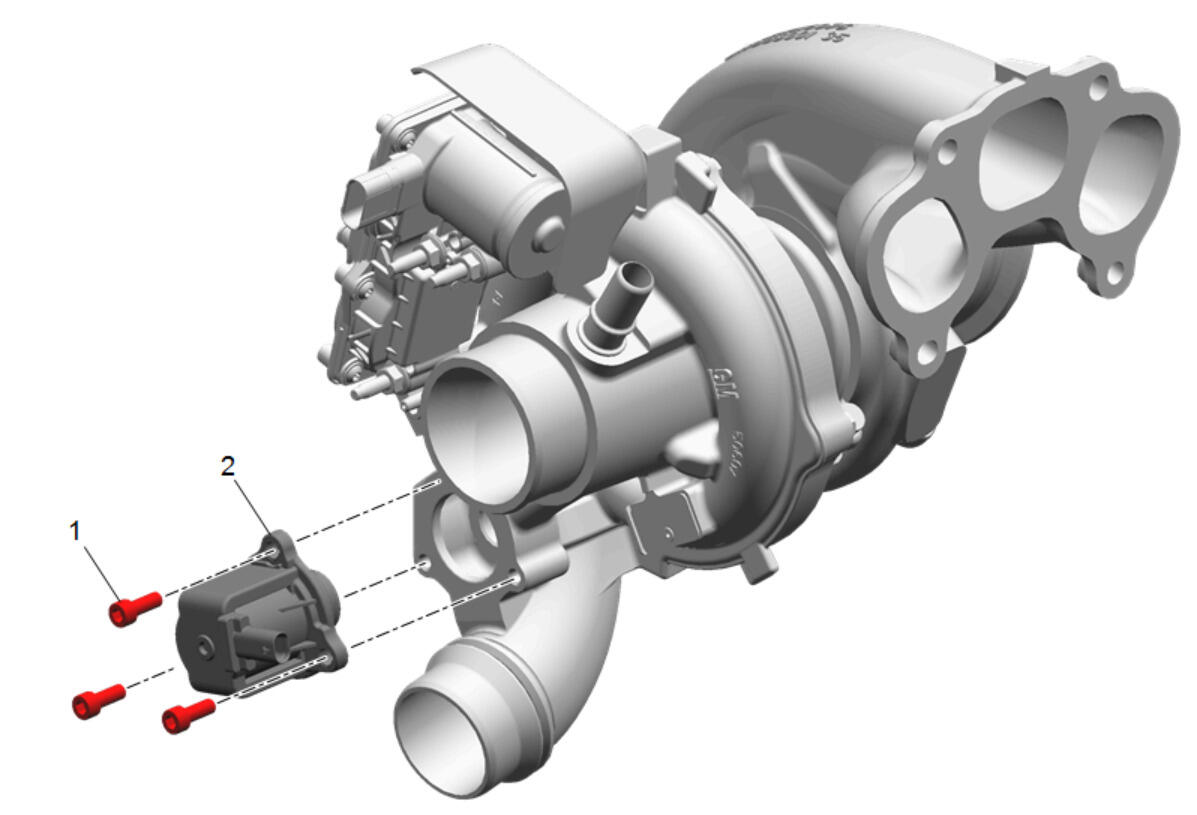

  6. GM5043402Courtesy of GENERAL MOTORS COMPANY
  7. Compressor Air Intake Turbocharger Bypass Valve Solenoid Bolt (1) - Remove [3x]
  8. Turbocharger Bypass Valve Solenoid (2) - Remove

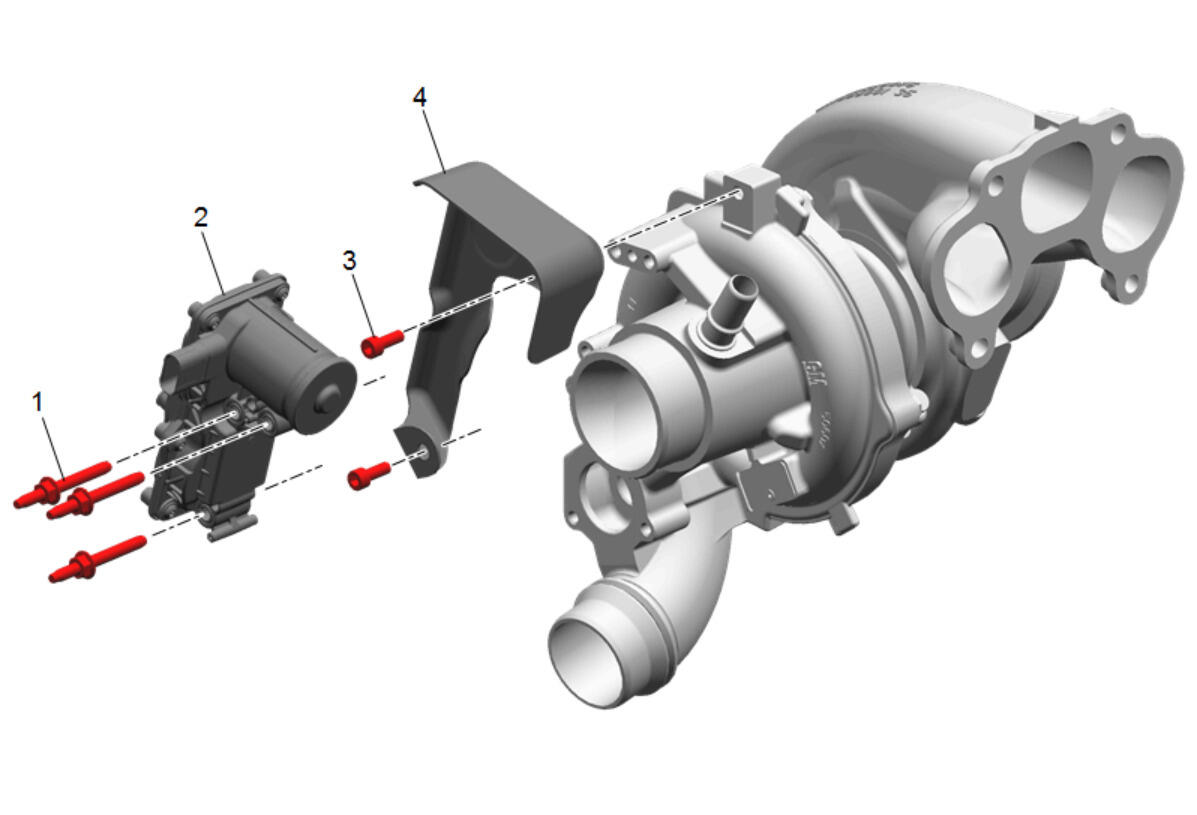

  9. GM5043405Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Bolt (1) - Remove [3x]

  10. Turbocharger Wastegate Actuator (2) - Remove
  11. Turbocharger Wastegate Actuator Heat Shield Bolt (3) - Remove [2x]
  12. Turbocharger Wastegate Actuator Heat Shield (4) - Remove
