Removal Procedure

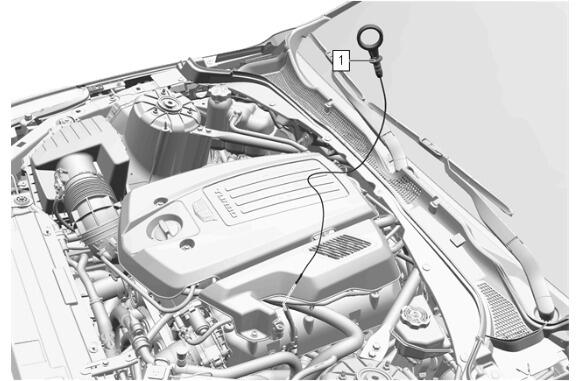

  1. GM5517313Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator (1) - Remove

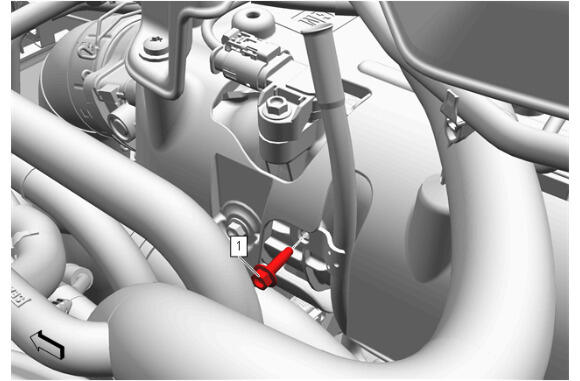

  2. GM5517312Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

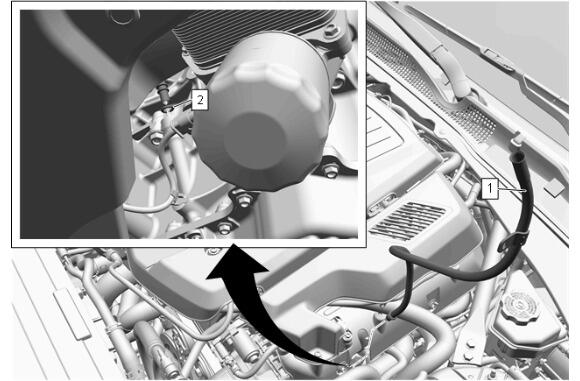

  3. GM5517311Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove

  4. Inspect the oil level indicator tube seal (2) and replace as necessary.
