Installation Procedure

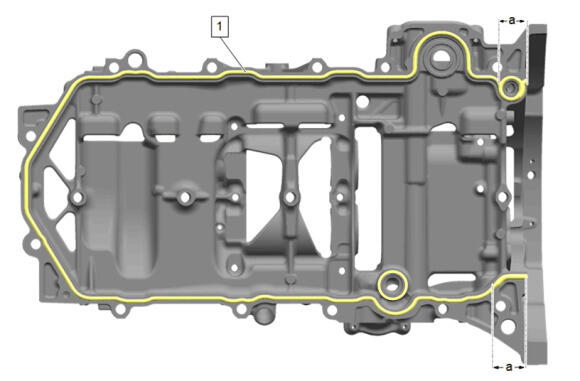

  1. GM5947127Courtesy of GENERAL MOTORS COMPANY

    Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

  2. Clean the engine block sealing surface and ensure the bolt threads are free of RTV and debris prior to RTV bead application.
  3. Clean the lower crankcase extension housing and ensure the housing is free of oils and finger prints prior to RTV bead application.
  4. NOTE:

    DO NOT allow the RTV to skim over, the crankcase extension housing must be installed within 8 minutes of RTV being applied.

  5. Apply a 4 mm bead of sealant (1) to the crankshaft rear oil seal housing.
  6. Apply 6 mm bead of sealant to the locations indicated, dimension a.

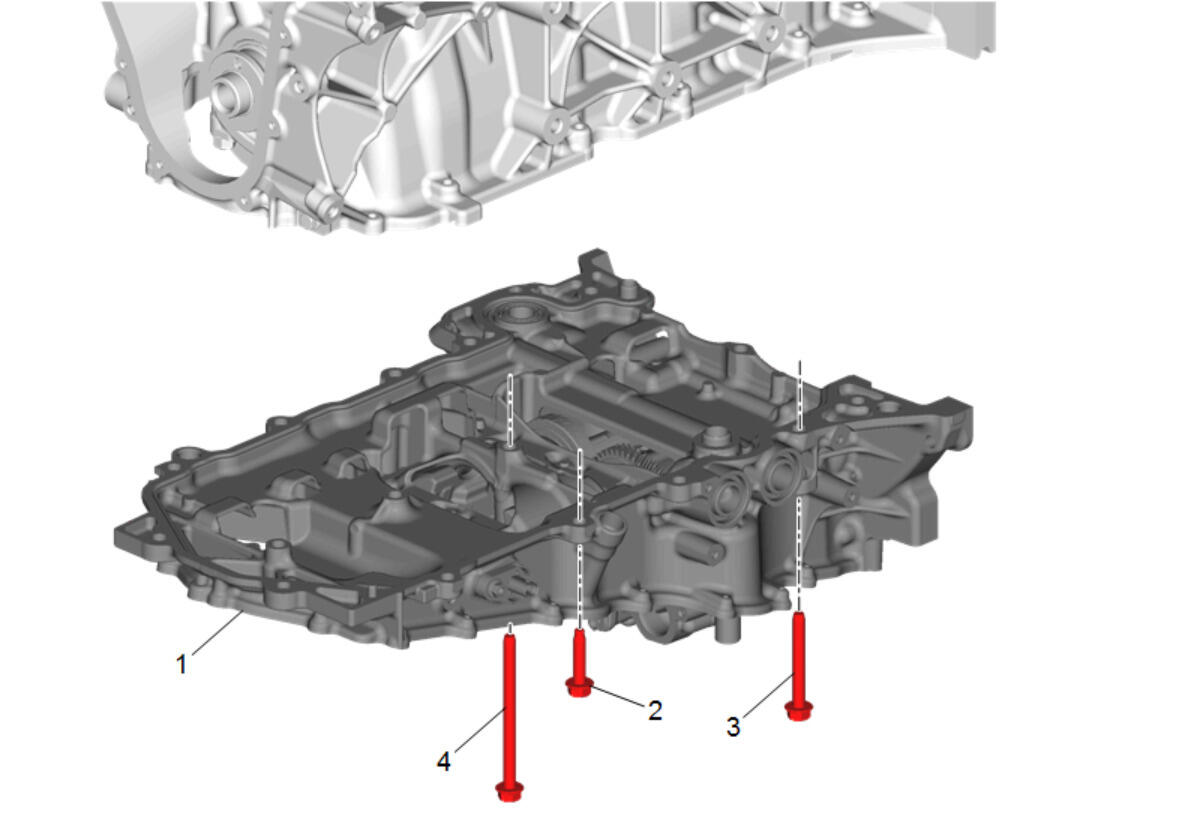

  7. GM5020698Courtesy of GENERAL MOTORS COMPANY

    Lower Crankcase Extension (1) - Install

  8. CAUTION:

    Refer to Fastener Caution

  9. Lower Crankcase Extension Bolt (3) - Install and tighten [5x] - Fastener Specifications
  10. Lower Crankcase Extension Bolt (2) - Install and tighten [10x] - Fastener Specifications
  11. Lower Crankcase Extension Bolt (4) - Install and tighten - Fastener Specifications

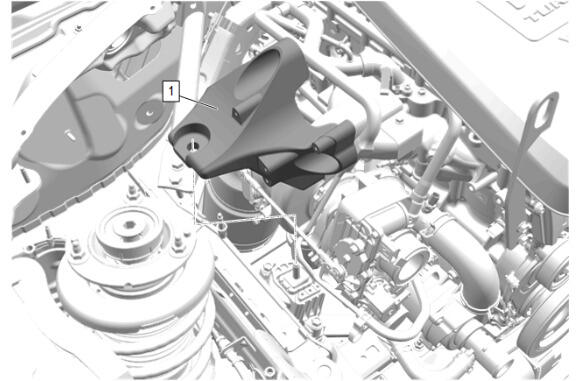

  12. GM5893532Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket (1) - Install

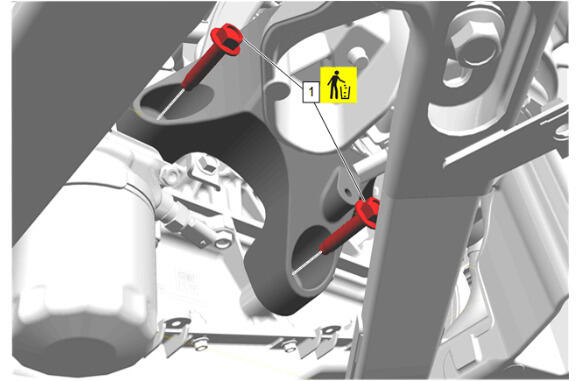

  13. GM5893533Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket Bolt (1) - Install NEW and tighten [2x] -Fastener Specifications

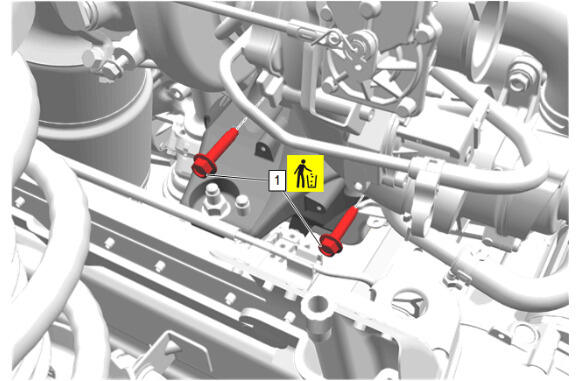

  14. GM5893535Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications

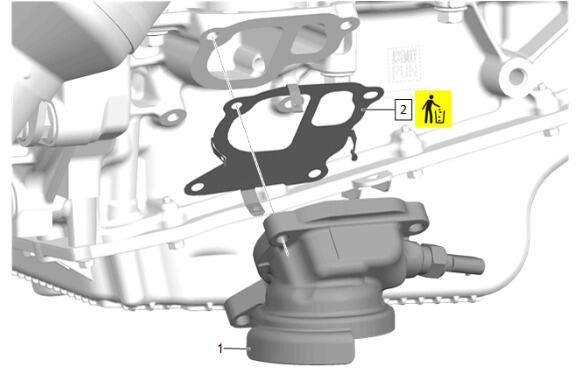

  15. GM5138395Courtesy of GENERAL MOTORS COMPANY

    Oil Filter Adapter Gasket (2) - Install NEW

  16. Oil Filter Adapter (1) - Install

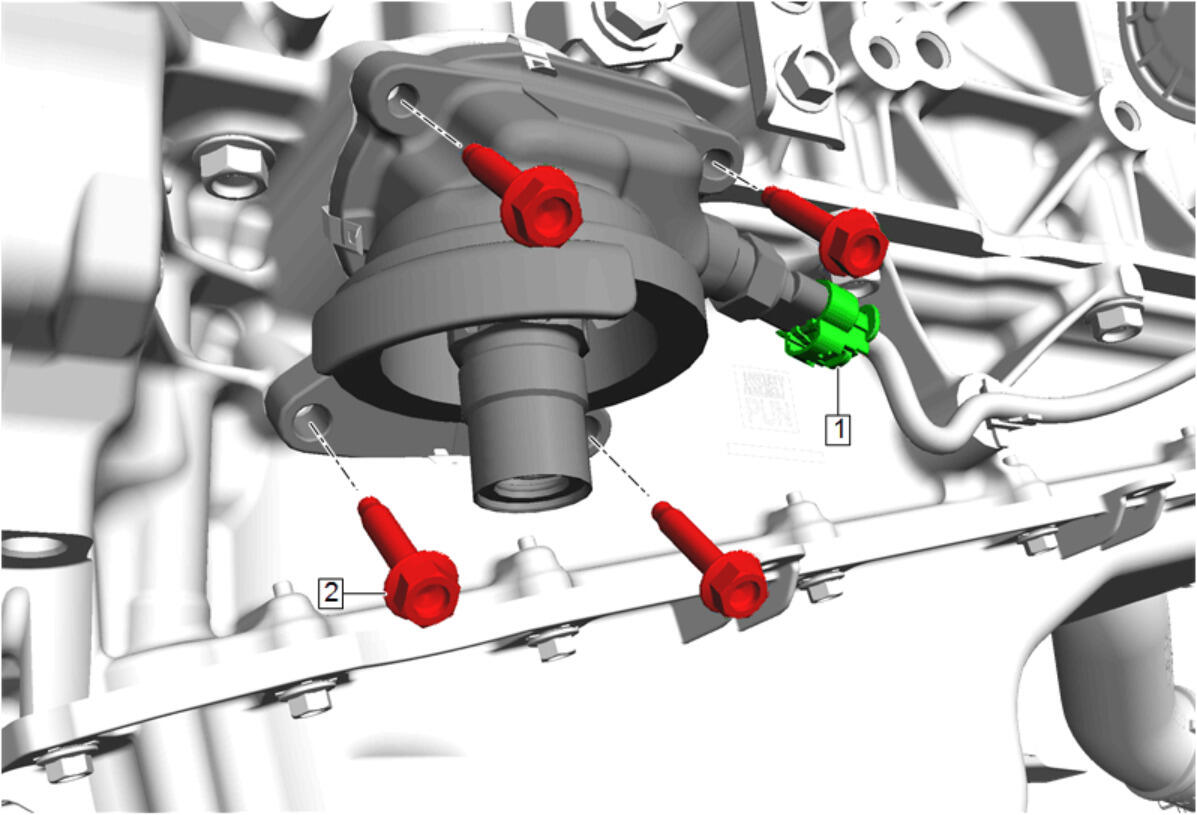

  17. GM5138393Courtesy of GENERAL MOTORS COMPANY

    Oil Filter Adapter Bolt (2) - Install and tighten [4x] - Fastener Specifications

  18. Engine Oil Temperature Sensor (1) - Connect

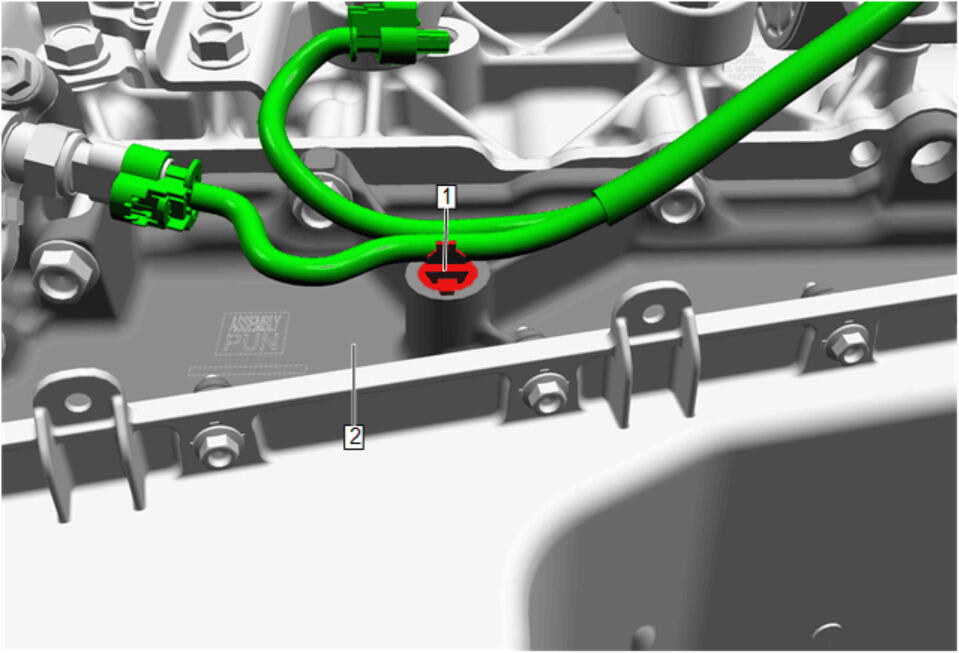

  19. GM5159585Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Lower Crankcase Extension (2) Install

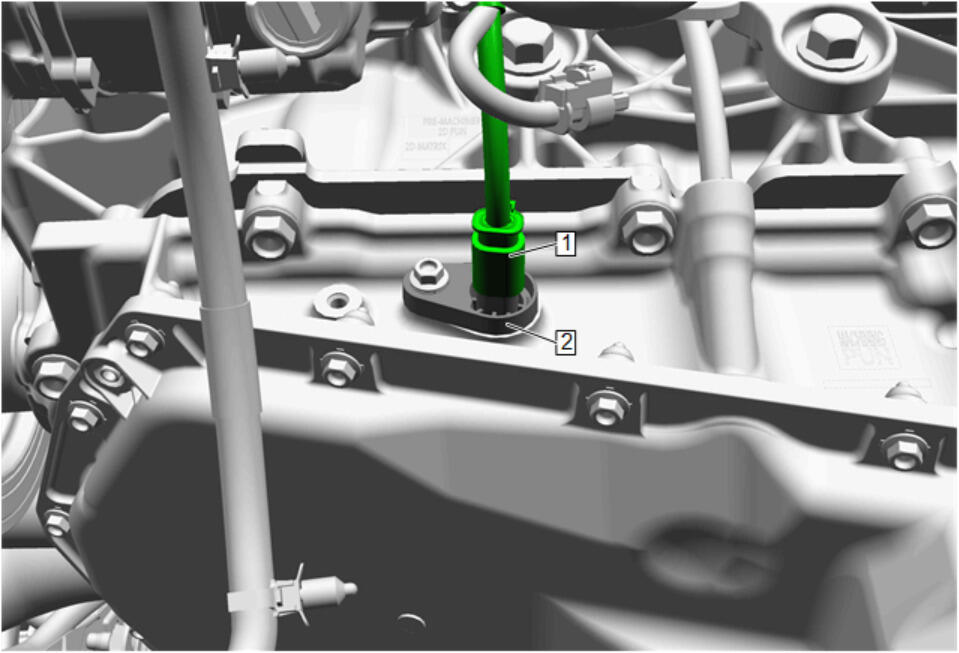

  20. GM5159583Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Oil Pump Flow Control Solenoid Valve Harness (2) - Connect

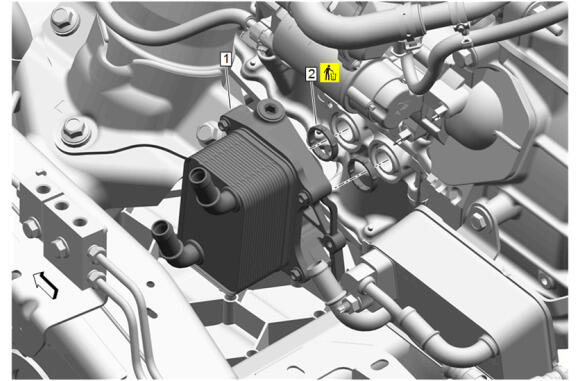

  21. GM5144290Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Seal (2) - Install NEW [2x]

  22. Engine Oil Cooler (1) - Install

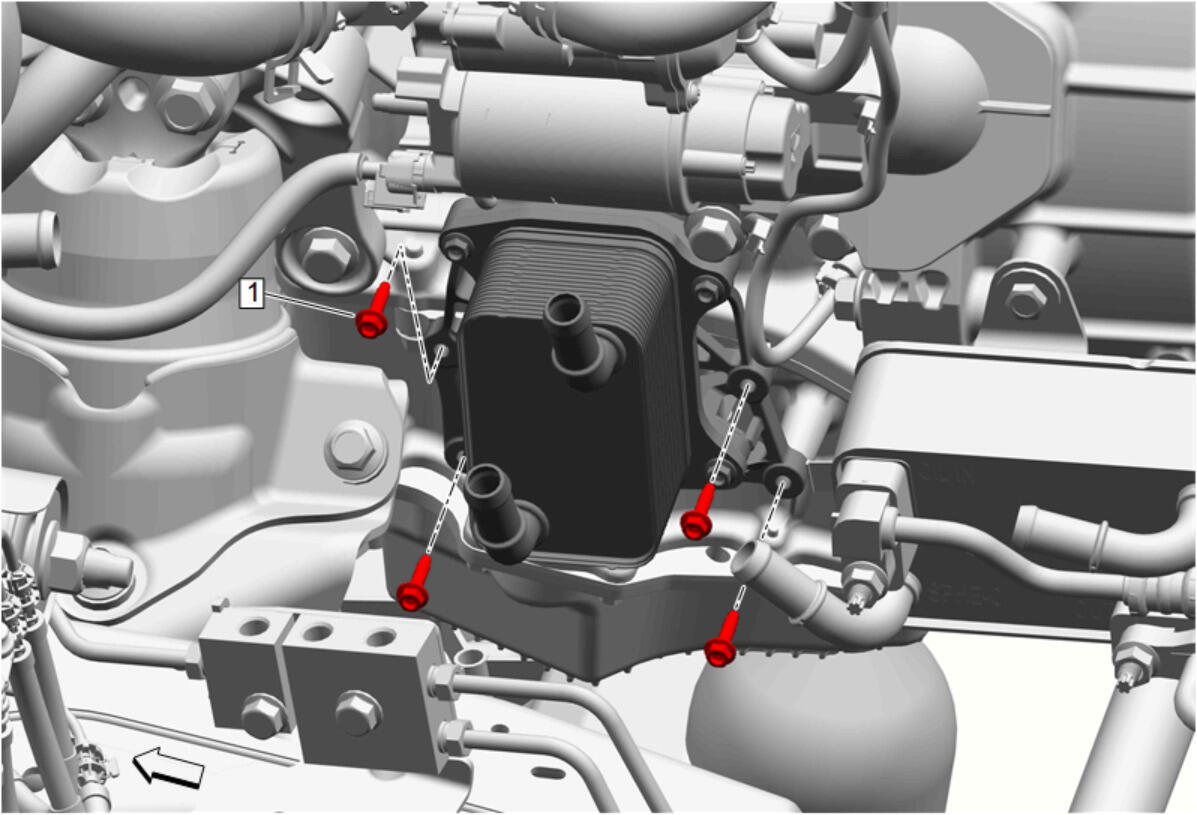

  23. GM5144284Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications

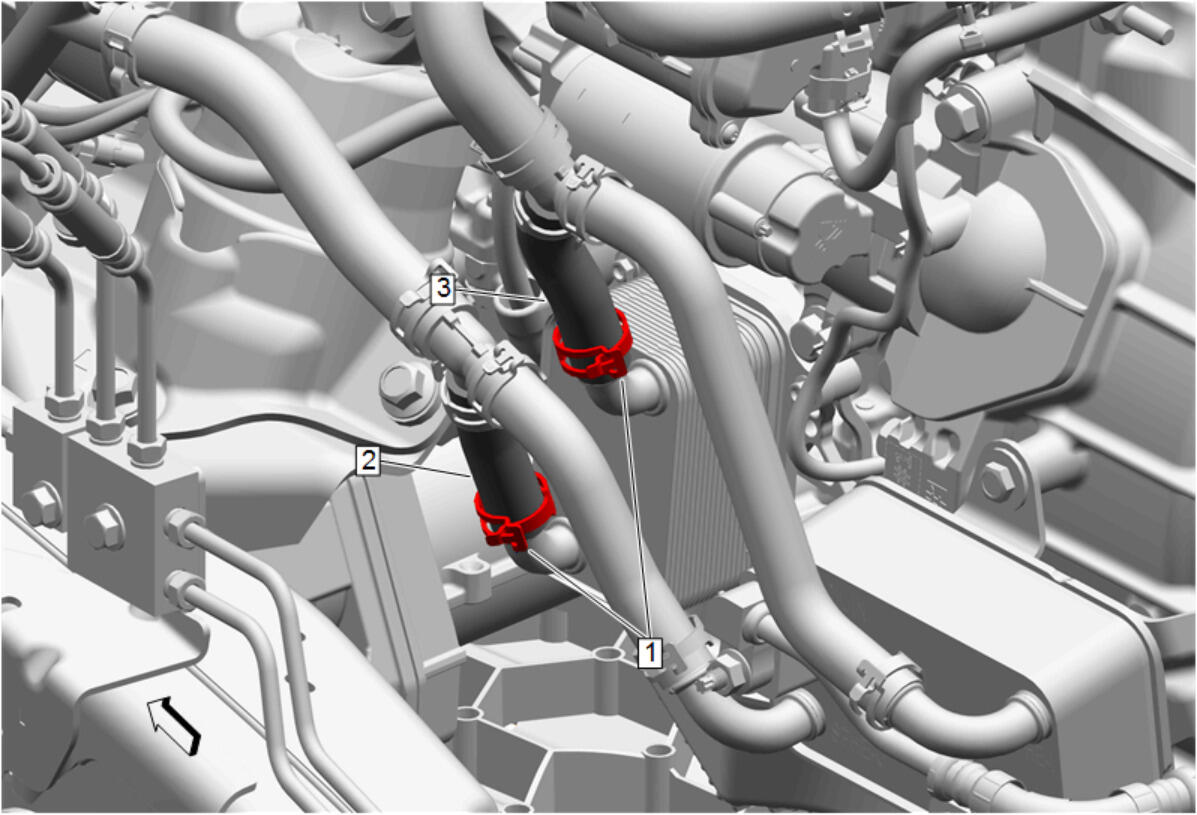

  24. GM5144281Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Coolant Inlet Hose (3) @ Engine Oil Cooler - Install

  25. Engine Oil Cooler Coolant Outlet Hose (2) @ Engine Oil Cooler - Install
  26. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  27. GM5902206Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Balancer shaft driven sprocket is keyed to fit one way on the balancer driven shaft.

    Install the balancer chain and balancer shaft driven sprocket to the balancer driven shaft.

    1. Ensure the marks on the balancer driven shaft (2) face each other.
    2. Align the double yellow links (4) on the balancer shaft chain to the double timing marks on the balancer shaft driven sprocket (3).
    3. Align the pink link (1) to the timing mark on the crankshaft sprocket (5).
  28. GM5153224Courtesy of GENERAL MOTORS COMPANY

    Balancer Shaft Sprocket Bolt (1) - Install NEW and tighten - Fastener Specifications

  29. GM5153495Courtesy of GENERAL MOTORS COMPANY

    Balancer Chain Guide (3) - Install

  30. Timing Chain Guide Bolt (2) - Install and tighten [2x] - Fastener Specifications
  31. GM5573763Courtesy of GENERAL MOTORS COMPANY

    If the balancer chain tensioner (1) needs to be assembled, install the check ball spring (2), plunger orifice (3), main spring (4) and the plunger (5). then install the EN-955-10-A  Locking Pin to reset the tensioner.

  32. GM5153597Courtesy of GENERAL MOTORS COMPANY

    Balancer Chain Tensioner (2) - Install

  33. Balancer Chain Tensioner Bolt (1) - Install and tighten [2x] - Fastener Specifications
  34. GM5153596Courtesy of GENERAL MOTORS COMPANY

    EN-52593  Chain Tensioner Retention Pin (2) - Remove

  35. GM5021095Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal Housing Locating Pin (1) - Install [2x]

  36. EN-52483  Cover Installation Guide Pins - Install
  37. GM5045205Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the sealing surface is clear of oil, grease and old sealant material.

    NOTE:

    Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

    NOTE:

    The rear oil seal housing must be installed within 8 minutes of applying the RTV sealant application.

    Apply a bead of room temperature vulcanizing sealant (1) as shown. Adhesives, Fluids, Lubricants, and Sealers

  38. GM5021095Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Leave the seal protector that ships installed onto the NEW crankshaft rear oil seal housing on.

    Install the NEW rear crankshaft rear oil seal housing (2) until the seal protector is flush with the end of the crankshaft.

  39. Press the center of the crankshaft NEW rear oil seal housing in, allowing the crankshaft to push out the seal protector.
  40. DISCARD the seal protector.
  41. Once the NEW rear oil seal housing is completely seated, inspect the seal around the crankshaft to ensure it has not folded over itself.
  42. EN-52483  Cover Installation Guide Pins - Remove
  43. GM5614500Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal Housing Bolt (1) - Install and hand tighten [14x]

  44. Crankshaft Rear Oil Seal Housing Bolt (1) - Tighten in sequence [14x] - Fastener Specifications
  45. GM5511922Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Position Sensor (2) - Install

  46. Crankshaft Position Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
  47. GM5511921Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  48. GM5517355Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  49. GM5517356Courtesy of GENERAL MOTORS COMPANY

    Oil Pump Suction Pipe Gasket (3) - Install NEW

  50. Oil Pump Suction Pipe (2) - Install
  51. Oil Pump Suction Pipe Bolt (1) - Install and tighten - Fastener Specifications
  52. GM5021097Courtesy of GENERAL MOTORS COMPANY

    Wipe the oil pan surface with the Adhesion Plastic Pan Primer Promoter using a clean shop towel. Allow the cleaner to flash / evaporate. Wipe off the sealing surfaces with a lint free cloth. Do not touch the sealing surface after cleaning to avoid inducing containment debris to the bonding surface area. Adhesives, Fluids, Lubricants, and Sealers

  53. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
  54. NOTE:

    Do not allow sealant to skim over, the oil pan must be installed within 8 minutes of sealer application.

  55. Apply a 3 mm bead of sealant (1) around the seal bead path, as shown.
  56. GM5897694Courtesy of GENERAL MOTORS COMPANY

    Install EN-52483  Cover Installation Guide Pins in two locations to keep oil pan square and aid in alignment.

  57. Oil Pan (1) - Install NEW
  58. NOTE:

    Install some lower oil pan bolts to secure the oil pan.

  59. Lower Oil Pan Bolt (2) - Install and hand tighten [4x]
  60. EN-52483  Cover Installation Guide Pins - Remove [2x]
  61. NOTE:

    Install the remaining lower oil pan bolts.

  62. Lower Oil Pan Bolt (2) - Install and hand tighten [16x]
  63. Lower Oil Pan Bolt (2) - Tighten in sequence - [20x] Fastener Specifications
  64. GM5140979Courtesy of GENERAL MOTORS COMPANY

    Flywheel Locating Pin (2) - Install

  65. Crankshaft Position Sensor Reluctor Ring (1) - Install
  66. GM5517309Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate (2) - Install

  67. NOTE:

    Install NEW bolts. Do NOT reuse old bolts.

  68. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  69. Automatic Transmission Flex Plate Bolt (1) - Install NEW and tighten [8x] - Fastener Specifications
  70. GM5150614Courtesy of GENERAL MOTORS COMPANY

    Remove the EN-52476  Flywheel Lock and Alignment Tool

  71. Install the drivetrain and front suspension frame assembly. Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (RWD)
  72. Install the transmission. Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
