Installation Procedure

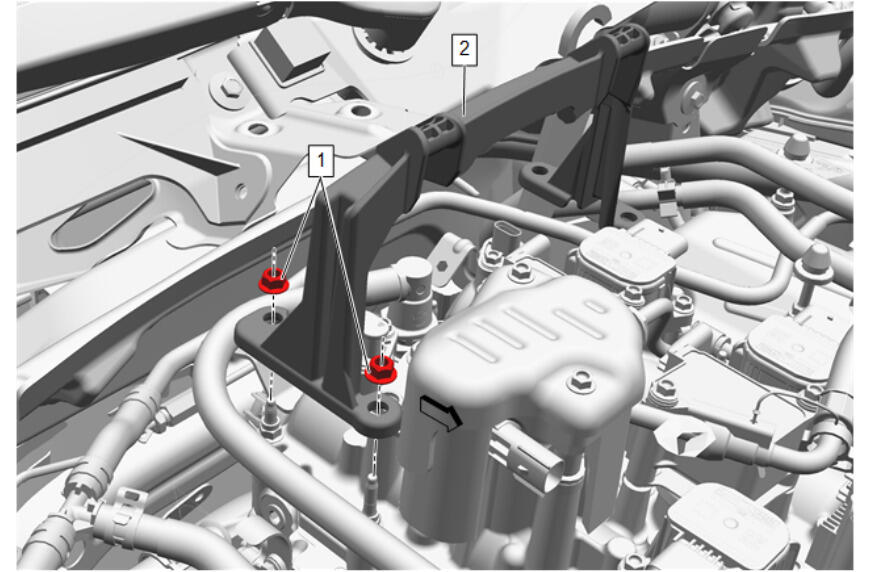

  1. GM5457786Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  3. Intake Manifold Brace Nut (1) - Install and tighten [2x] - Fastener Specifications

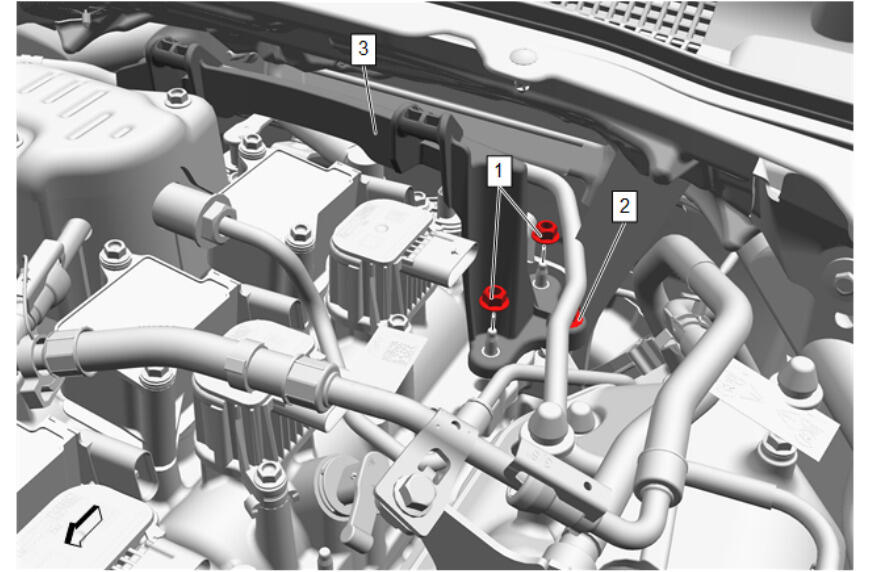

  4. GM5457857Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (2) @ Upper Intake Manifold Bracket (3) - Install

  5. Intake Manifold Brace Nut (1) - Install and tighten [2x] - Fastener Specifications

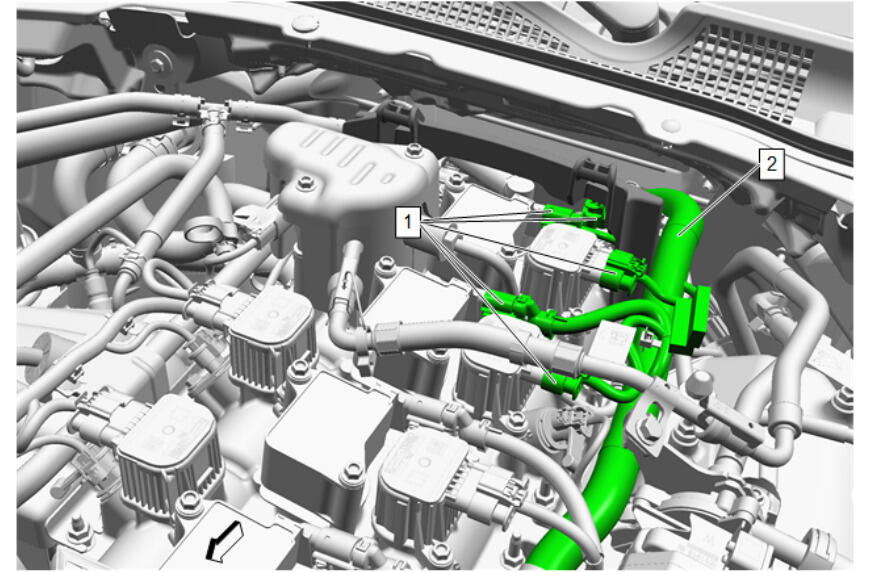

  6. GM5457059Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (2) - Reposition

  7. Electrical Connector (1) - Connect [5x]

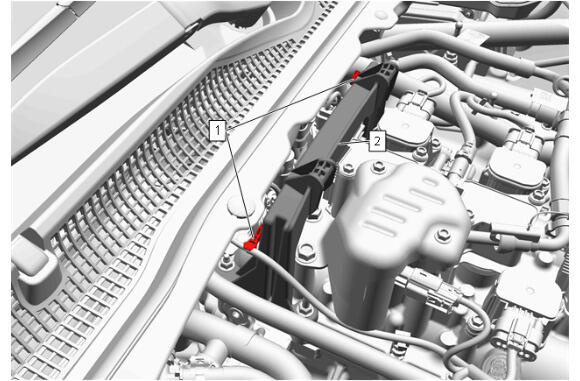

  8. GM5515361Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Upper Intake Manifold Bracket (2) - Connect [2x]

  9. GM5456829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the intake manifold cover insulator retainers fully engage the intake manifold cover studs.

    Intake Manifold Cover Insulator (1) - Install

  10. GM5456746Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Install - Fastener Specifications

  11. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  12. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  13. Intake Manifold Cover Bolt (1) - Install [2x] - Fastener Specifications
  14. Install the oil fill cap.
