Installation Procedure

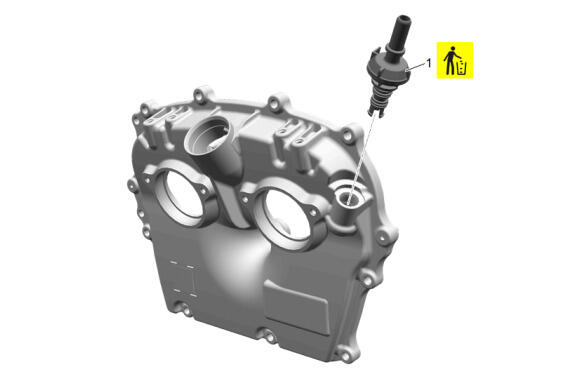

Positive Crankcase Ventilation Valve (1) - Install NEW
Ensure the 2 engine front cover locating pins (1) are in place.
- Timing Belt Front Upper Cover Seal (2) - Install NEW
- NOTE:
Ensure that the sealing surface is clear of oil, grease and old sealant material.
NOTE:Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
NOTE:The timing chain upper cover must be installed within 8 minutes of the RTV sealant application.
Apply room temperature vulcanizing (RTV) sealant at the seam between the camshaft housing and the cylinder head where indicated.
Timing Chain Upper Cover (3) - Install
- Timing Chain Upper Cover Bolt (4) - Install and hand tighten [9x]
- Timing Chain Upper Cover Bolt (5) - Install and hand tighten
- Timing Chain Upper Cover Bolt (4, 5) - Tighten in sequence [10x] - Fastener Specifications
Camshaft Position Actuator Magnet Gasket (3) - Install NEW [2x]
- Camshaft Position Actuator Magnet (2) - Install [2x]
- Camshaft Position Actuator Magnet Bolt (1) - Install and tighten [4x] - Fastener Specifications
Retainer (1) - Install
Positive Crankcase Ventilation Tube (4) - Connect - Plastic Collar Quick Connect Fitting Service
- Electrical Connector (1) - Connect [2x]
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Push down on the front of the intake manifold cover (2).
- Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the oil fill cap.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Refer to Fastener Caution .
