Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the oil fill cap.
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover Bolt (1) - Remove [2x]
Lift up on the front of the intake manifold cover (2).
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover Insulator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

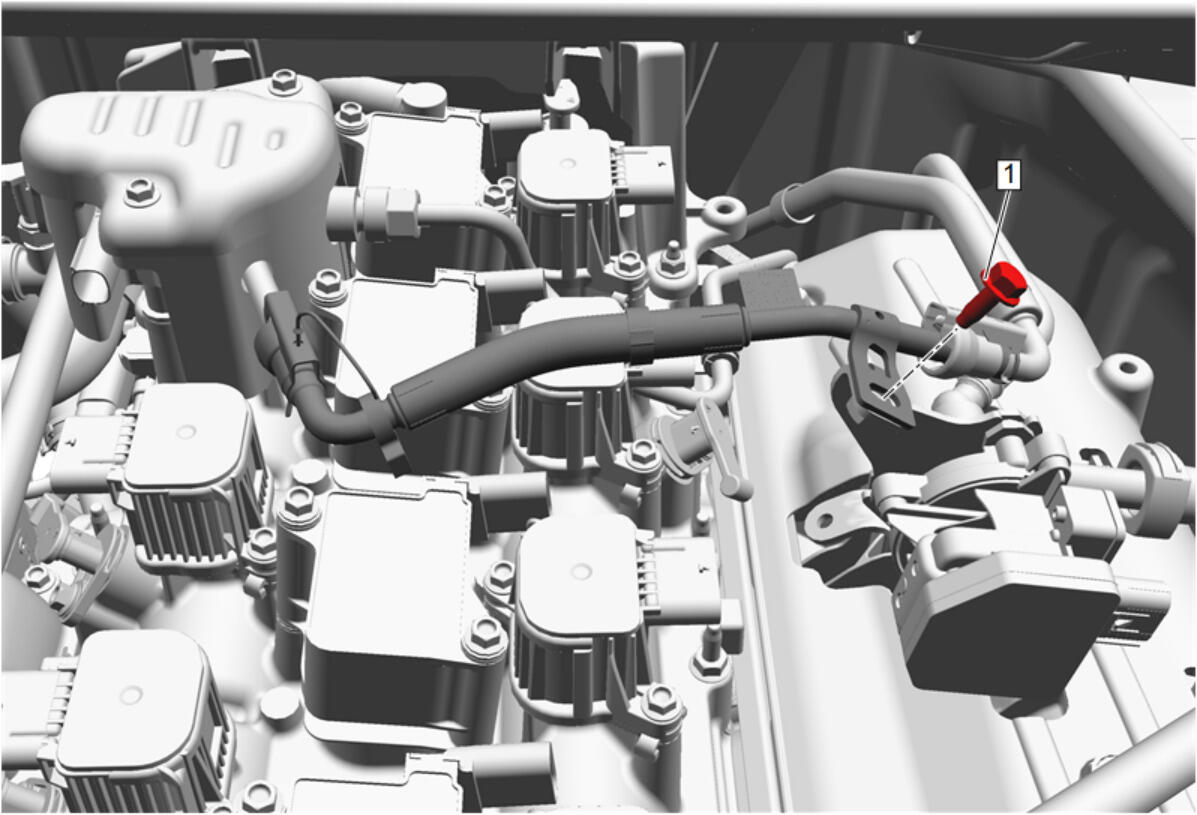

Fuel Feed Pipe Bolt (1) @ Evaporative Emission Canister Purge Pump - Remove
Courtesy of GENERAL MOTORS COMPANY

WARNING:
Refer to Diesel/Gasoline Vapors Warning .

WARNING:
Refer to Safety Glasses Warning .

Using the J-41769 Fuel Line Quick Disconnect Tool, disconnect and reposition the fuel feed pipe (1).
Evaporative Emission Pipe (2) - Disconnect and reposition
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Tube (1) - Disconnect and reposition
Retainer (2) - Unclip [3x]
Radiator Surge Tank Inlet Hose (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Throttle Body Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Bolt (1) - Remove
Electrical Connector (2) - Disconnect [2x]
Retainer (3) - Unclip [4x]
Engine Wiring Harness (4) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Pump Bolt (1) - Remove [3x]
Evaporative Emission Canister Purge Pump (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover Bolt (1) - Remove [2x]
Intake Manifold Cover Stud (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Upper Intake Manifold Cover (1) - Remove
