Installation Procedure

GM5003927Courtesy of GENERAL MOTORS COMPANY
  1. Crankshaft Balancer (2) - Install

    Prepare the NEW Crankshaft Balancer Bolt (1) for installation as follows.

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components.Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  2. CAUTION:

    Refer to Fastener Caution .

  3. Crankshaft Balancer Bolt - Install NEW and tighten - Fastener Specifications
    GM5164169Courtesy of GENERAL MOTORS COMPANY
  4. EN-52476  Flywheel Holding Tool (2) - Remove

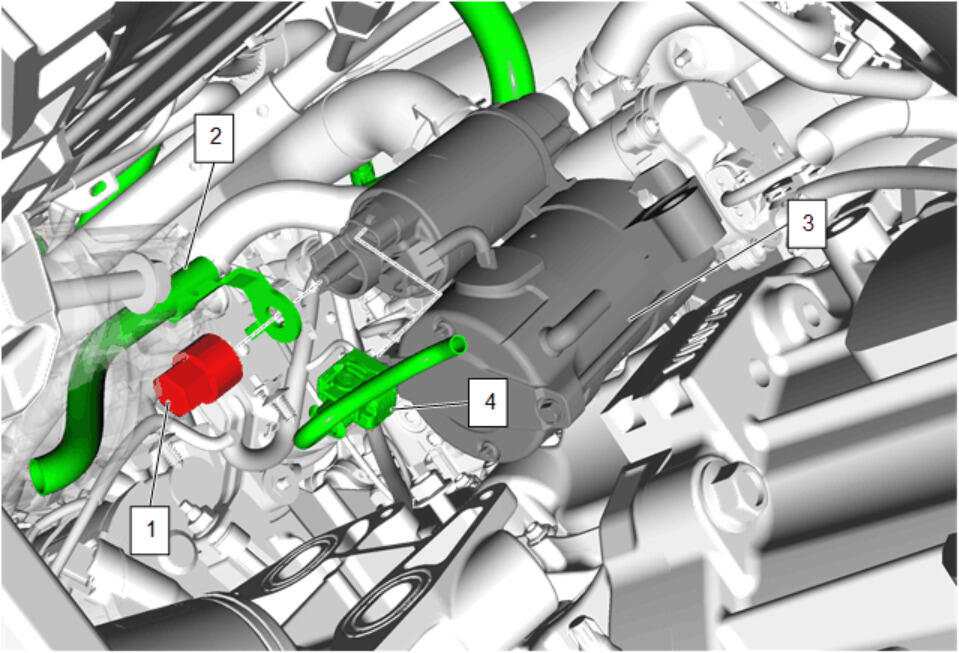

    GM5417288Courtesy of GENERAL MOTORS COMPANY
  5. Auxiliary Generator Battery Jumper Cable (2) - Install
  6. Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten - Fastener Specifications
  7. Electrical Connector (4) - Connect
  8. Starter (3) - Install

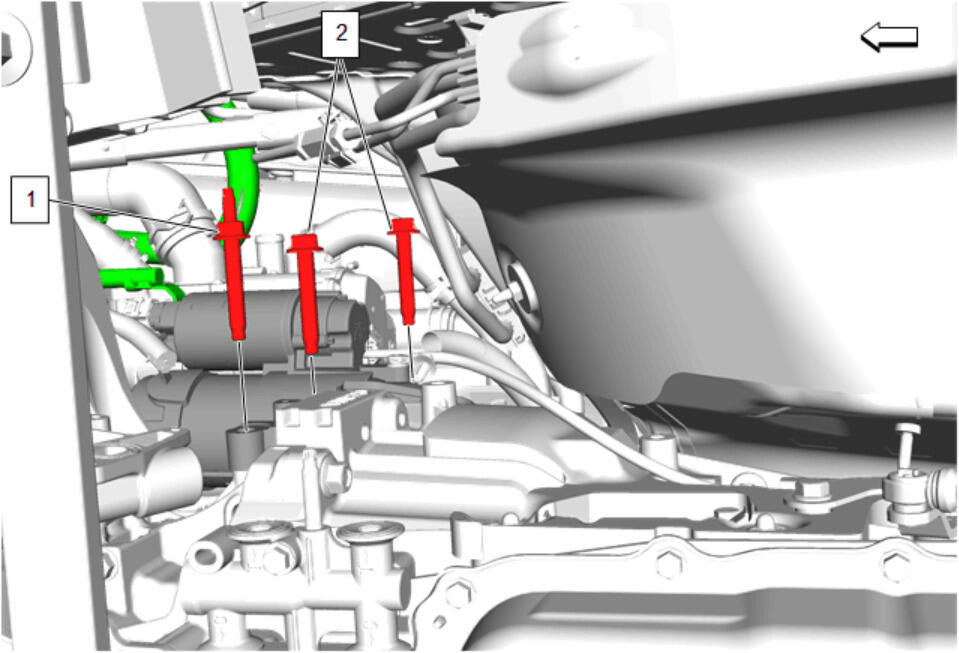

    GM5417249Courtesy of GENERAL MOTORS COMPANY
  9. Starter Bolt (2) - Install and tighten [2x] - Fastener Specifications
  10. Starter Stud (1) - Install and tighten - Fastener Specifications
    GM5417233Courtesy of GENERAL MOTORS COMPANY
  11. Auxiliary Generator Battery Jumper Cable (2) - Install
  12. Auxiliary Generator Battery Jumper Cable Terminal Nut (1) - Install and tighten - Fastener Specifications
  13. Retainer (3) - Engage

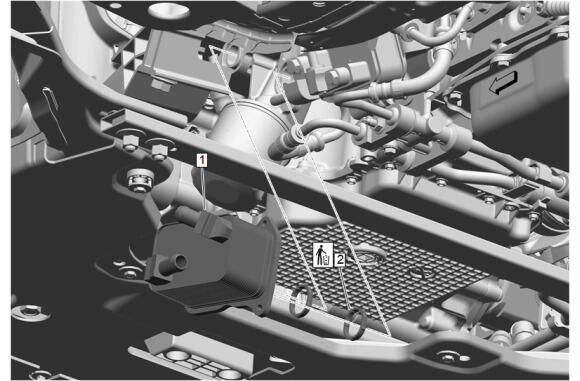

    GM5396466Courtesy of GENERAL MOTORS COMPANY
  14. Engine Oil Cooler Seal (2) - Install NEW [2x]
  15. Engine Oil Cooler (1) - Install

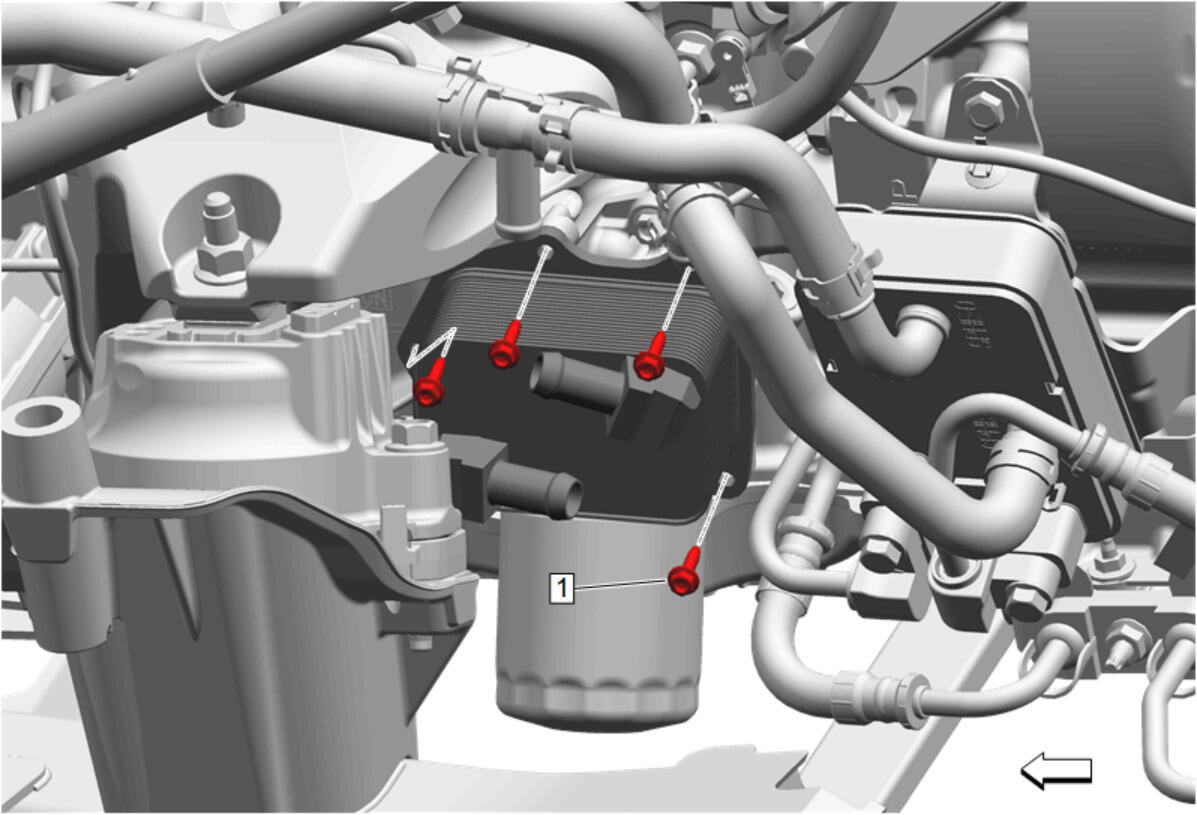

    GM5396459Courtesy of GENERAL MOTORS COMPANY
  16. Engine Oil Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications

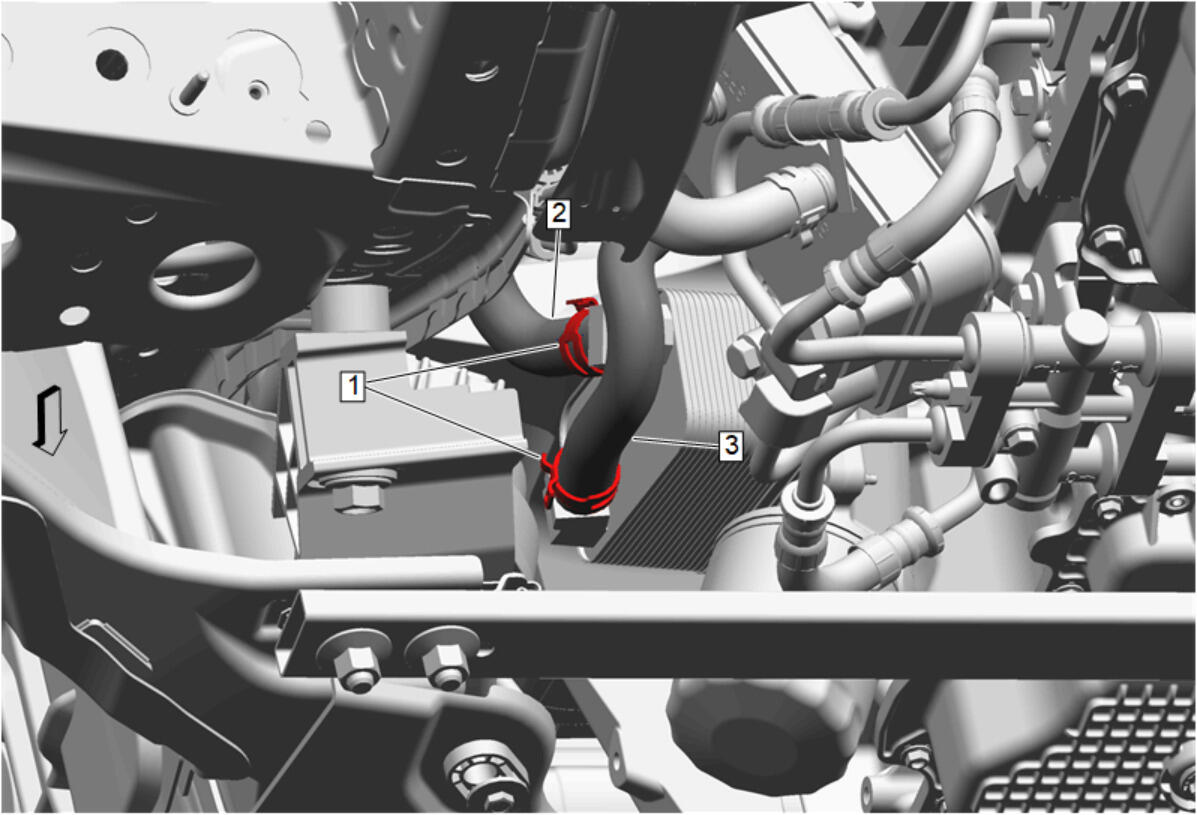

    GM5396452Courtesy of GENERAL MOTORS COMPANY
  17. Engine Oil Cooler Coolant Inlet Hose (3) @ Engine Oil Cooler - Install
  18. Engine Oil Cooler Coolant Outlet Hose (2) @ Engine Oil Cooler - Install
  19. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  20. Lower the vehicle.
  21. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement
  22. Fill the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
    GM5398004Courtesy of GENERAL MOTORS COMPANY
  23. Front Compartment Air Deflector (1) - Install
    GM5398001Courtesy of GENERAL MOTORS COMPANY
  24. Front Compartment Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
    CAUTION:

    Refer to Fastener Caution

    NOTE:

    Quantity of fasteners may vary based on option content.

    GM5398000Courtesy of GENERAL MOTORS COMPANY
  25. Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications
    NOTE:

    Quantity of fasteners may vary based on option content.

  26. Engine Front Splash Shield Retainer (2) - Install and tighten
  27. Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
    GM5397993Courtesy of GENERAL MOTORS COMPANY
  28. Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
    NOTE:

    Quantity of fasteners may vary based on option content.

  29. Engine Front Splash Shield Retainer (2) - Install
  30. Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications
    GM5397986Courtesy of GENERAL MOTORS COMPANY
  31. Front Bumper Fascia Center Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
  32. Front Bumper Fascia Center Air Deflector Retainer (2) - Install [2x]
  33. Lower the vehicle. Lifting and Jacking the Vehicle
    GM5156329Courtesy of GENERAL MOTORS COMPANY
  34. Position the accessory drive primary belt onto all of the pulleys except one idler pulley.
  35. Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise and hold.
  36. Accessory Drive Primary Belt (2) - Install
  37. Release the drive belt tensioner, inspect the accessory drive primary belt (2) to ensure it is centered on all pulleys.
    GM5432174Courtesy of GENERAL MOTORS COMPANY
  38. Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
    GM5432171Courtesy of GENERAL MOTORS COMPANY
  39. Push down on the front of the intake manifold cover (2).
  40. Intake Manifold Cover Bolt (1) - Install [2x] - Fastener Specifications
  41. Install the oil fill cap.
  42. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
