Cleaning and Inspection Procedure - Conditional

  1. Clean the crankshaft balancer with soap and water.
    2. WARNING:

    Refer to Safety Glasses Warning

  2. Dry the crankshaft balancer with compressed air.

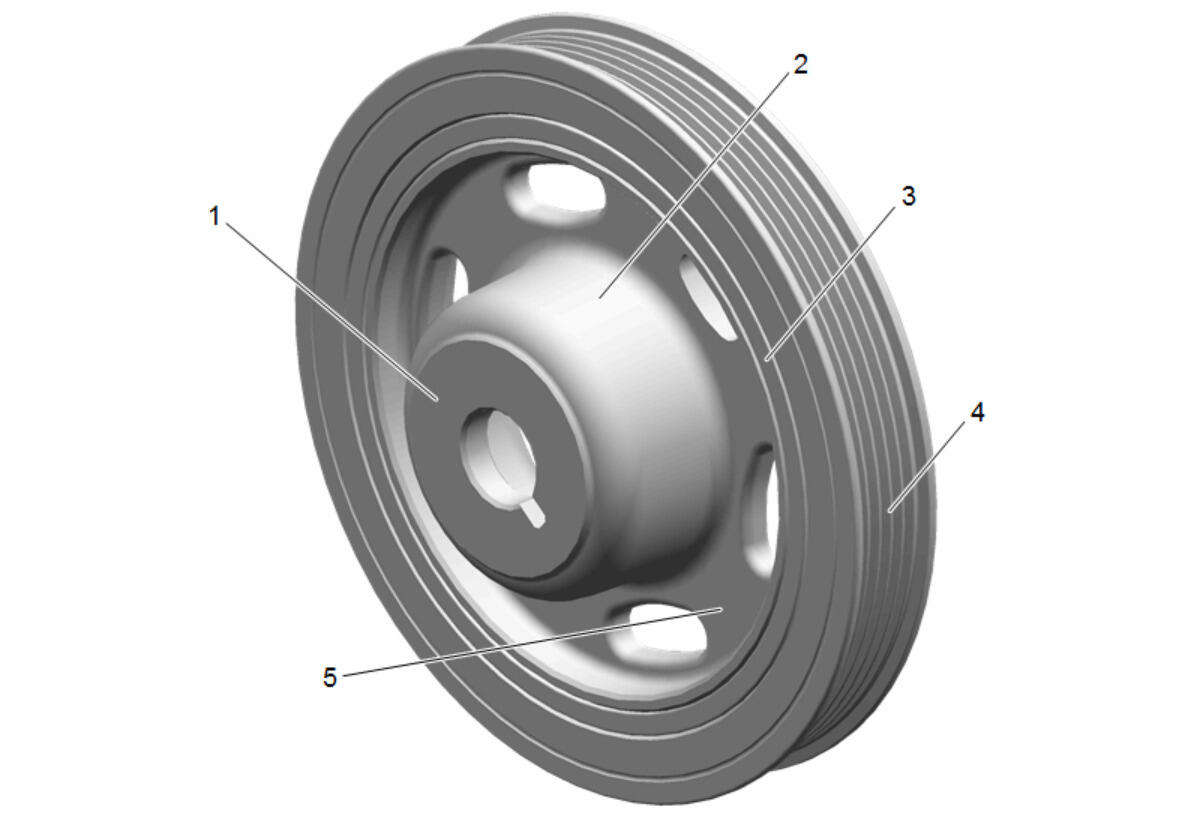

    GM5044133Courtesy of GENERAL MOTORS COMPANY

  3. Inspect the crankshaft balancer for the following:

    • Worn or damaged hub-to-crankshaft surface (1)
    • Worn, grooved or damaged hub seal surface (2)

      A crankshaft balancer hub seal surface with excessive scoring, grooves, rust or other damage must be replaced.

    • Worn, chunking or deteriorated rubber between the hub and pulley (3)
    • Damaged drive belt ribs (4)
    • Damaged webs (5)
  4. Repair or replace the crankshaft balancer as necessary.
