Powertrain Mount Balancing

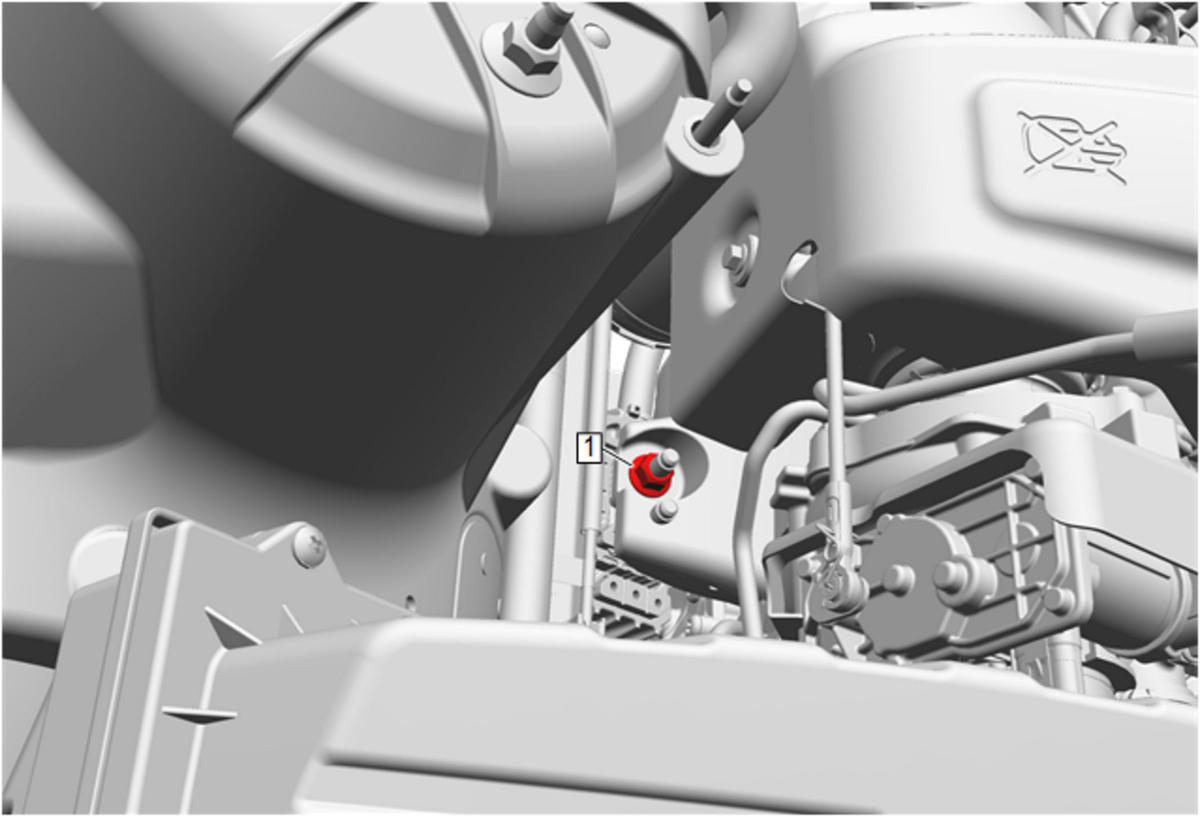

  1. GM5400941Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Loosen

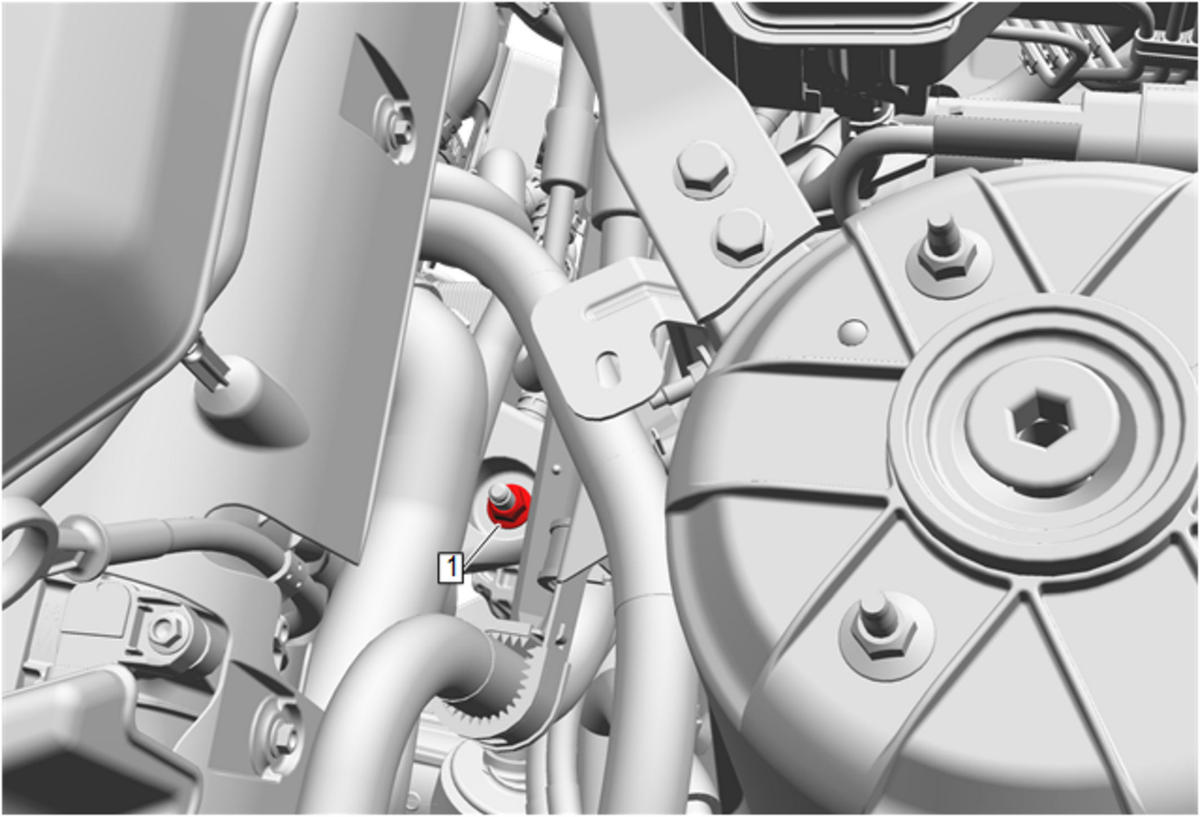

  2. GM5400943Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Loosen

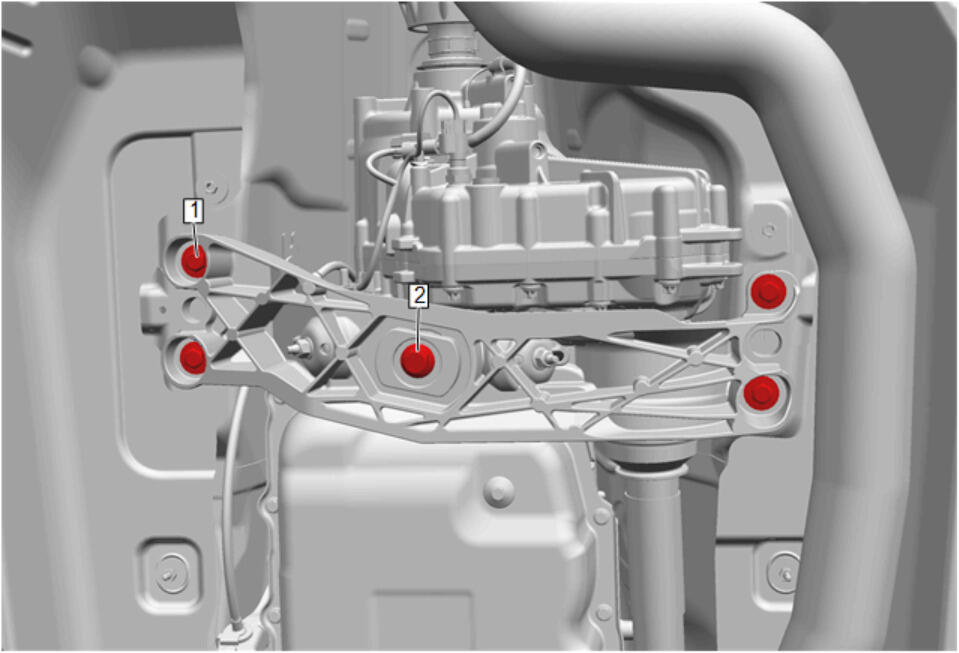

  3. GM5336524Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bracket Bolt (1) - Loosen [4x]

  4. Transmission Mount Bolt (2) - Loosen
  5. Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
  6. GM5336524Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bolt (2) - Tighten - Transmission Mount Replacement (All Wheel Drive) , or Transmission Mount Replacement (Rear Wheel Drive)

  7. Transmission Mount Bracket Bolt (1) - Tighten [4x] - Transmission Mount Replacement (All Wheel Drive) , or Transmission Mount Replacement (Rear Wheel Drive)
  8. GM5400943Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Tighten - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (RWD)

  9. GM5400941Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (1) - Tighten - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (RWD)
