Removal Procedure

  1. Disconnect the battery. Battery Negative Cable Disconnection and Connection

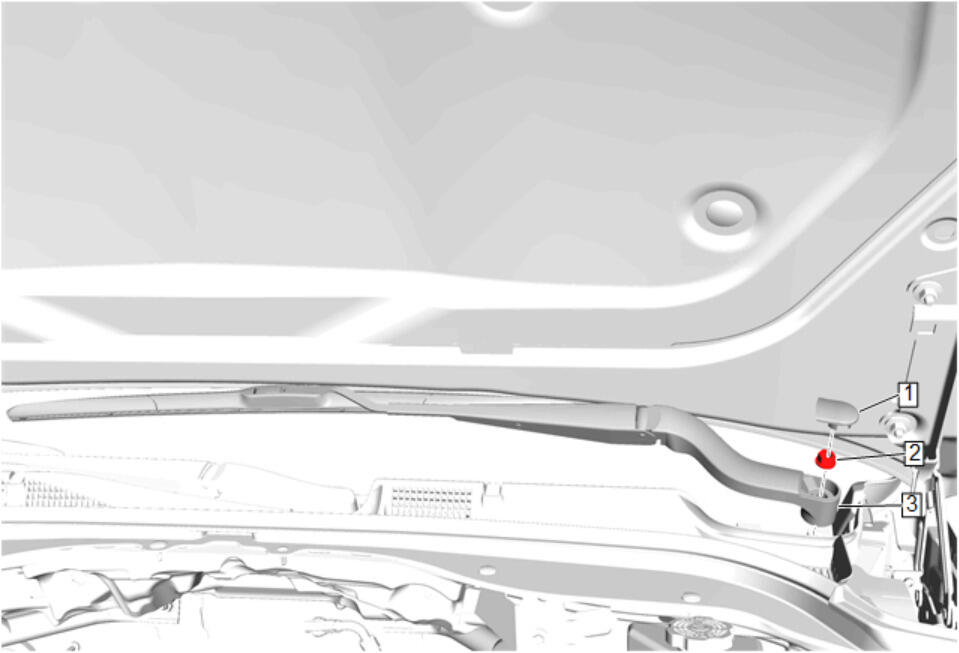

  2. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate trim tool, remove the windshield wiper arm finish cap (1) from the windshield wiper arm (3).

  3. Windshield Wiper Arm Nut (2) - Remove
  4. Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.

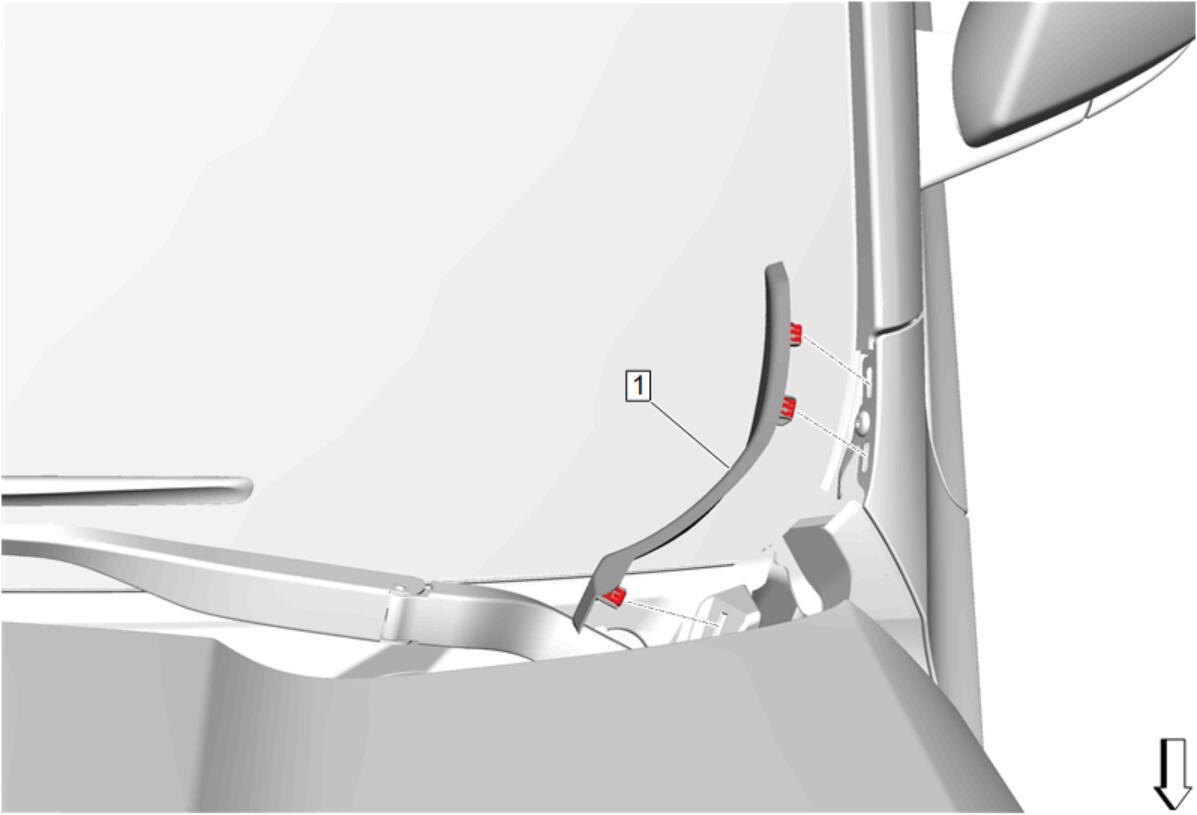

  5. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Apply two layers of masking tape around the top edge of the service part to prevent paint damage.

  6. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
  7. Remove the air inlet grille panel extension (1) from the air inlet grille panel and upper front fender.

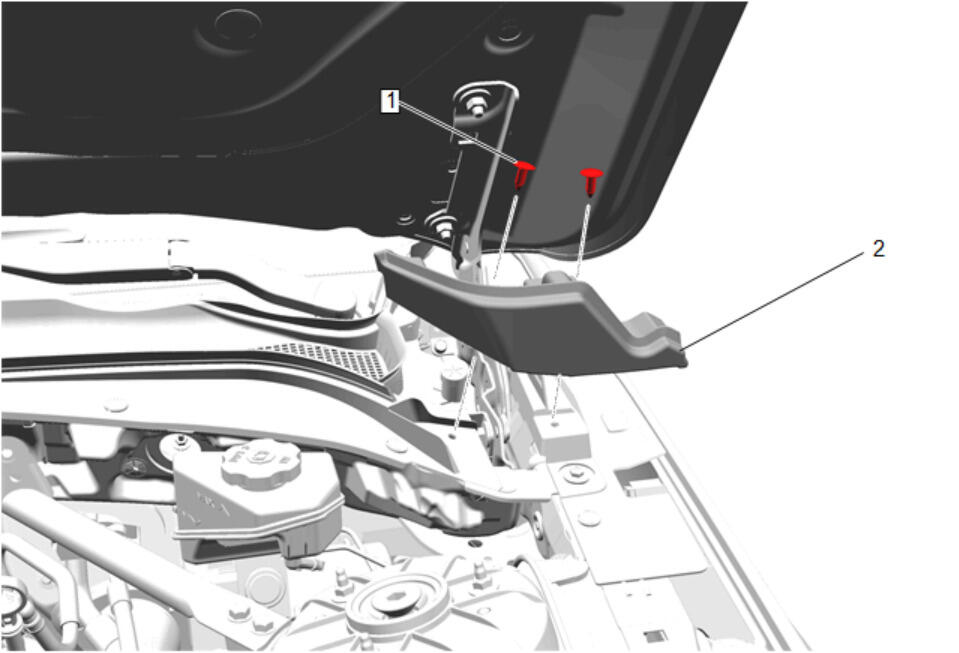

  8. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 hood rear outer air inlet seal retainer (1) from the left and right side.

  9. Remove the hood rear outer air inlet seal (2) from the left and right side.

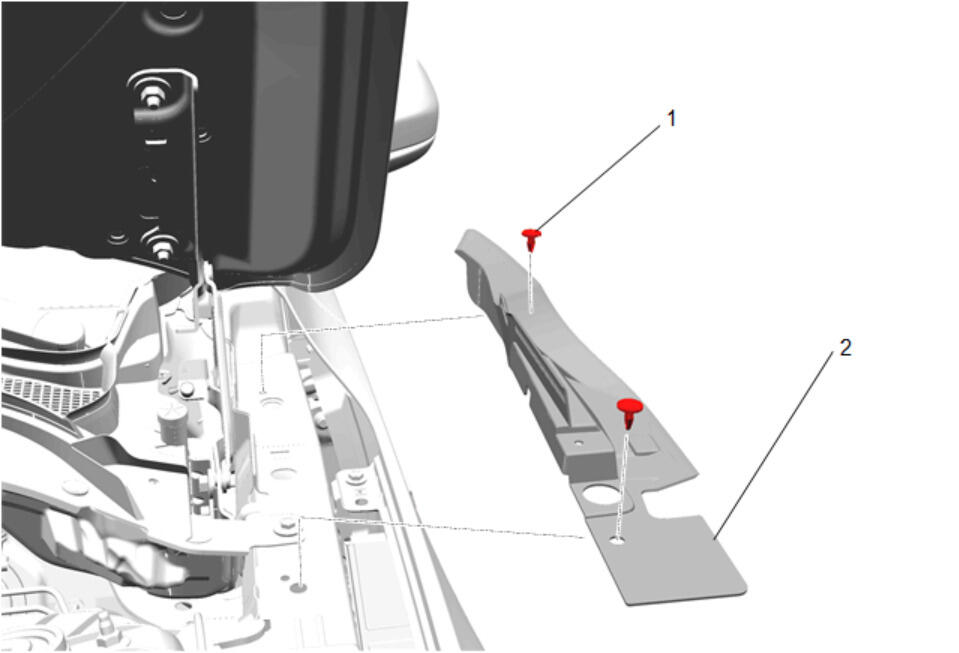

  10. GM5421990Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 front compartment side sight shield retainer (1) from the left and right side.

  11. Remove the front compartment side sight shield (2) from the left and right side.

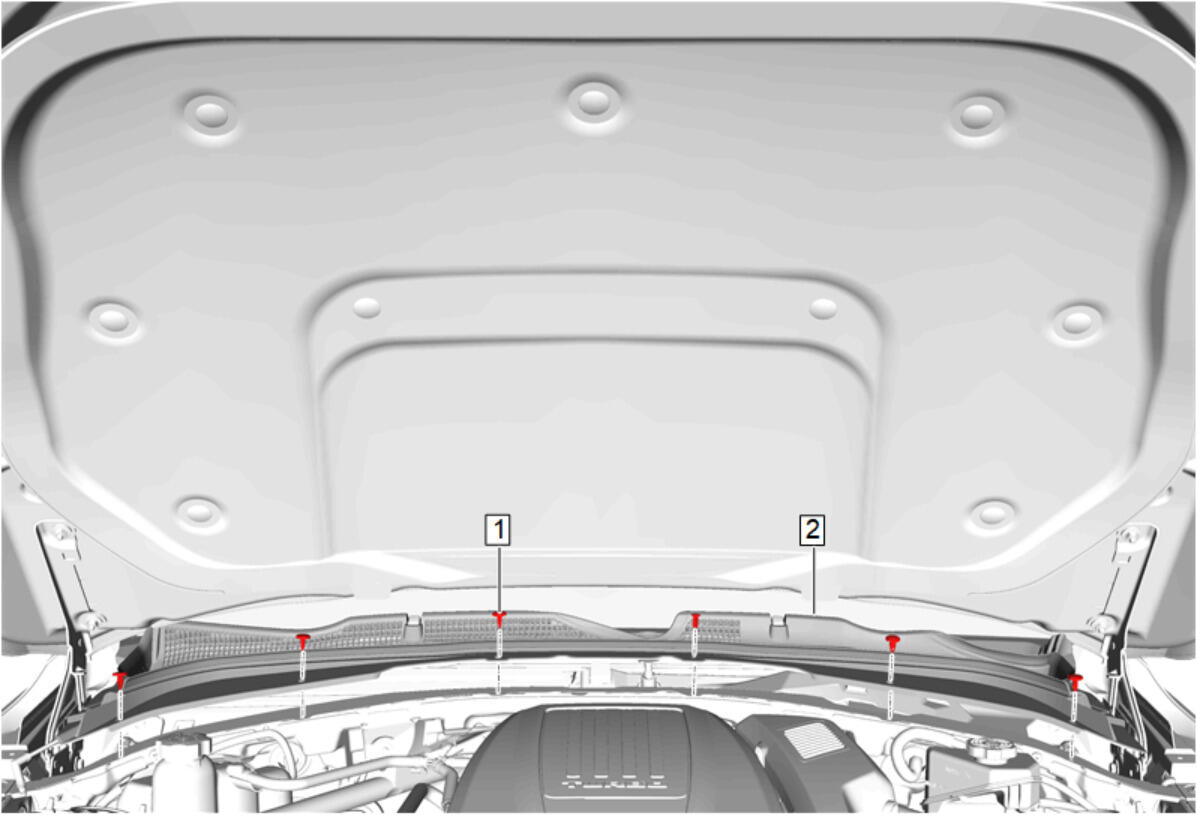

  12. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Remove [6x]

  13. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
  14. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.

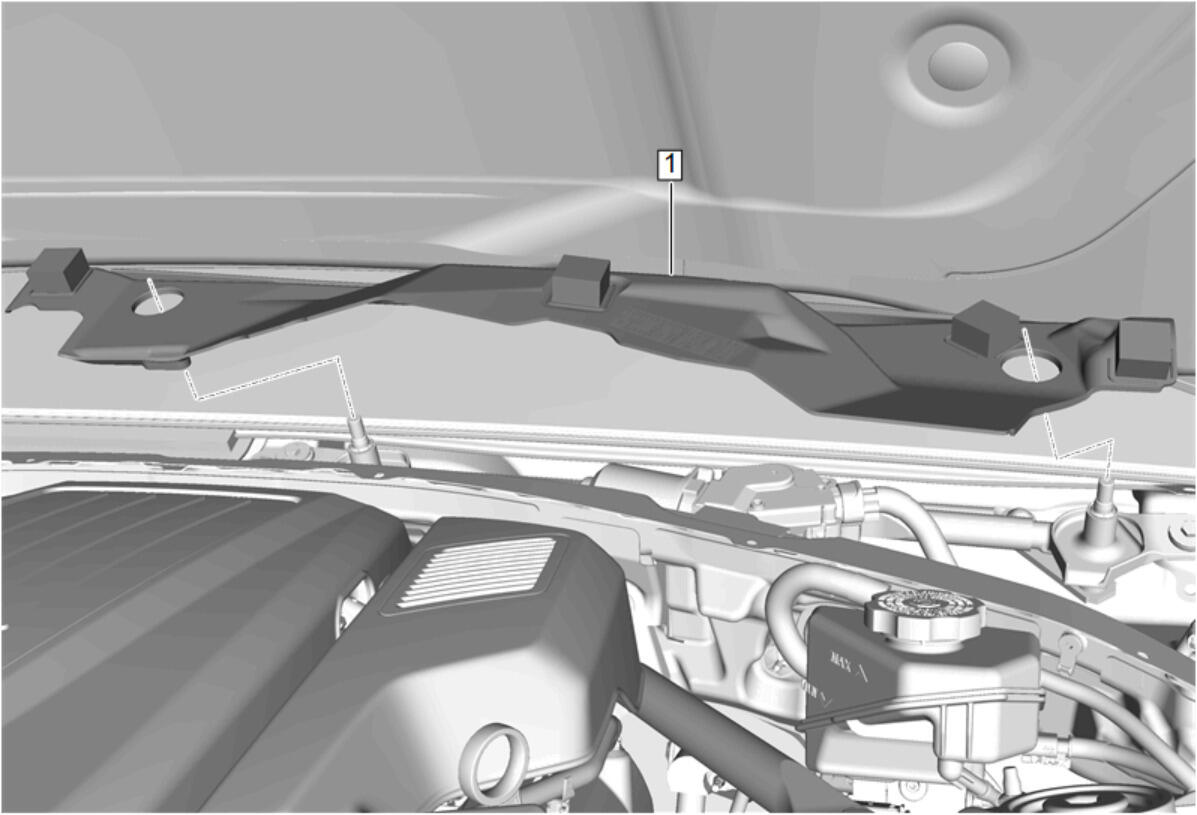

  15. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Remove

    16. NOTE:

    To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector.

  16. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

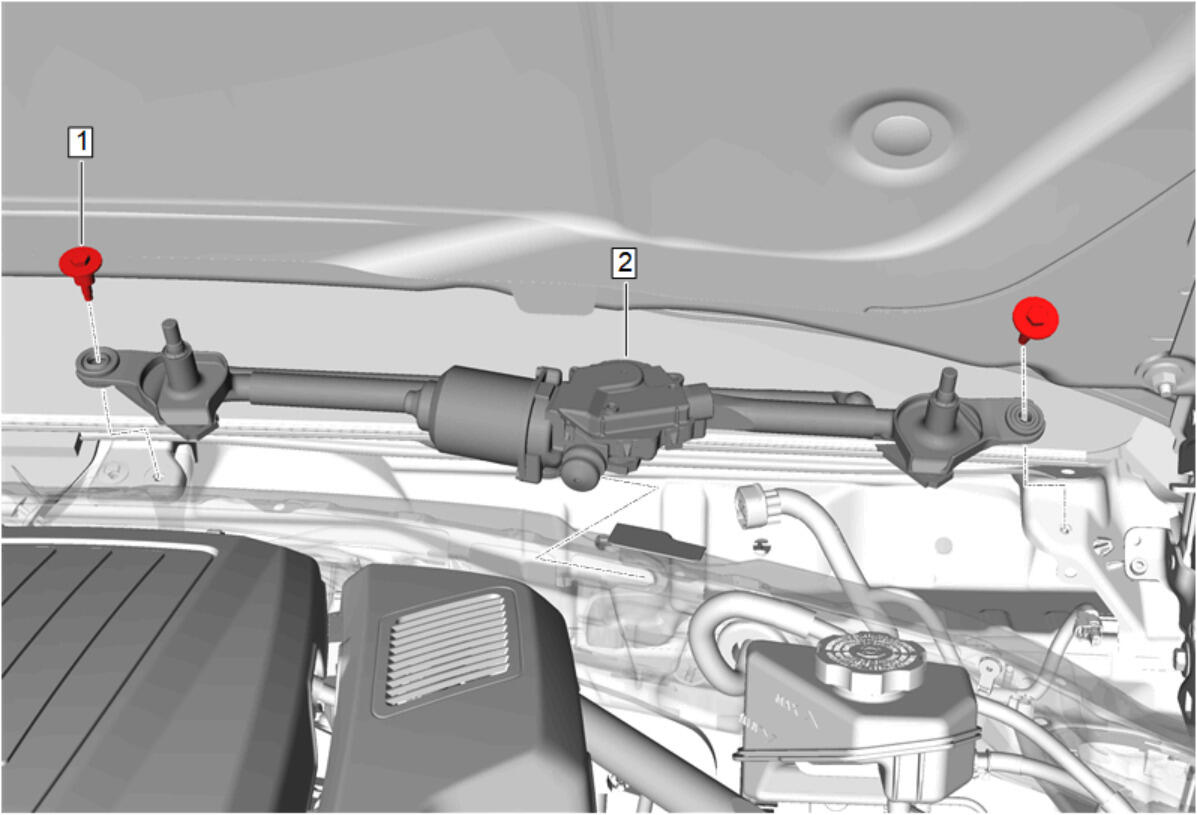

  17. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Disconnect the windshield wiper motor electrical connector.

  18. Windshield Wiper System Module Bolt (1) - Remove [2x]
  19. Slide the windshield wiper system module (2) inboard to release the grommet from the plenum and remove the windshield wiper system module (2) from the vehicle.

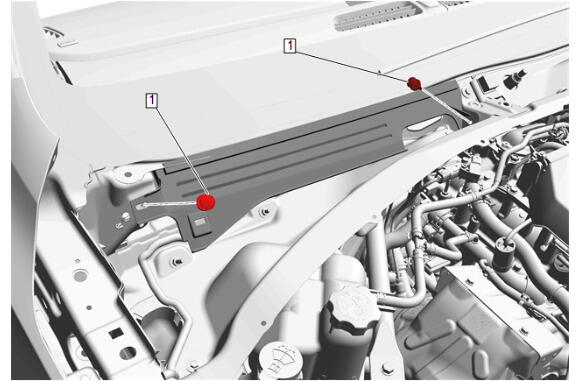

  20. GM5499581Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector Retainer (1) - Remove [2x]

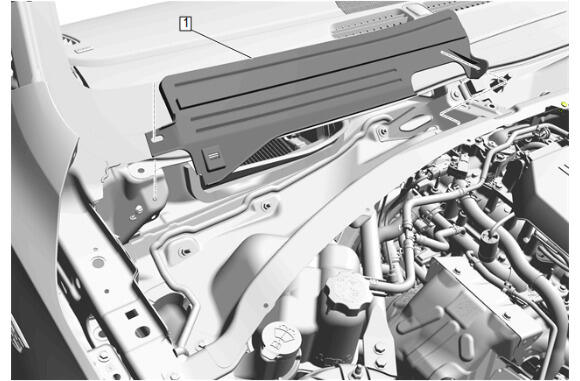

  21. GM5499583Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector (1) - Remove

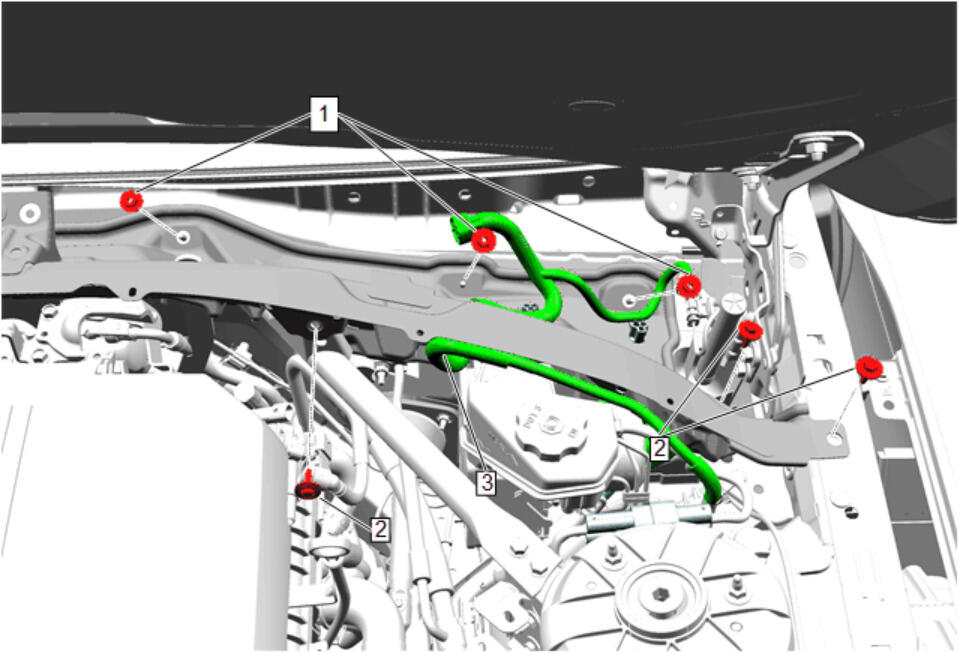

  22. GM5422039Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Nut (1) - Remove [3x]

  23. Plenum Front Panel Bolt (2) - Remove [3x]
  24. Pull the forward lamp wiring harness extension (3) out from the plenum front panel.

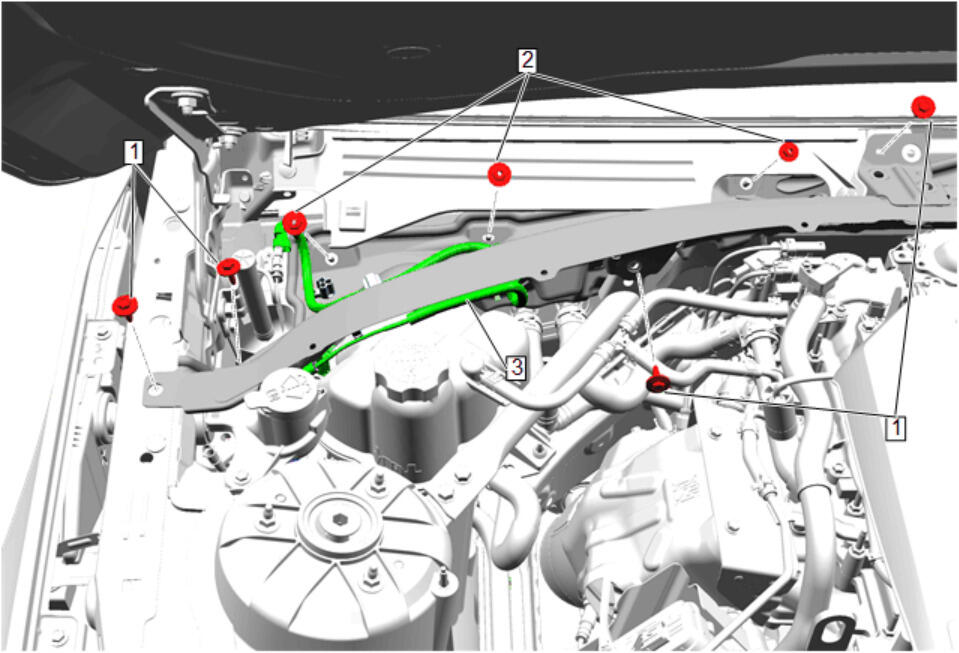

  25. GM5422041Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Remove [4x]

  26. Plenum Front Panel Nut (2) - Remove [3x]
  27. Pull the forward lamp wiring harness extension (3) out from the plenum front panel.

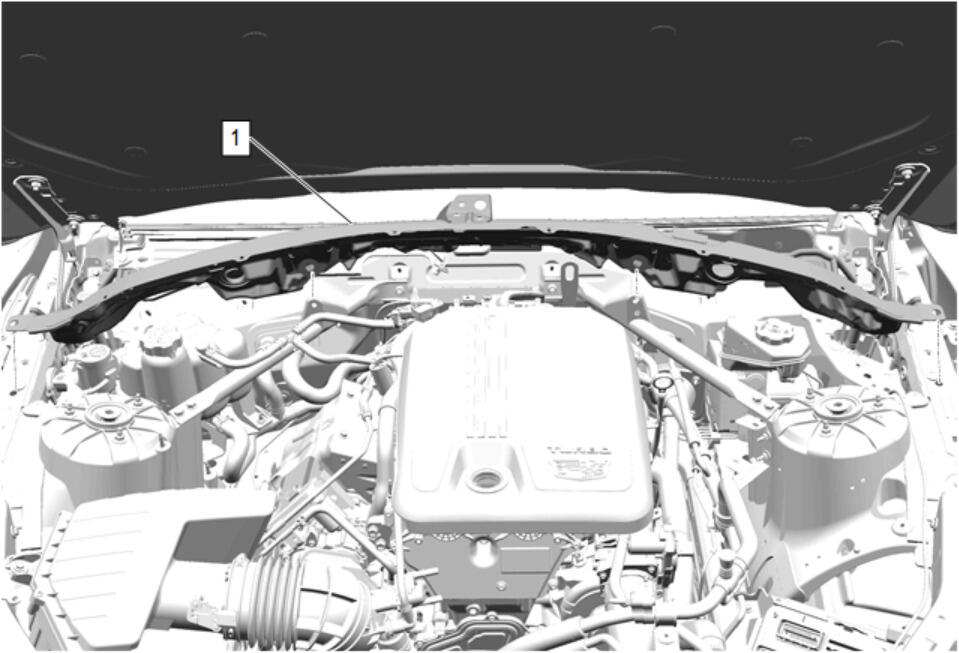

  28. GM5422044Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Remove

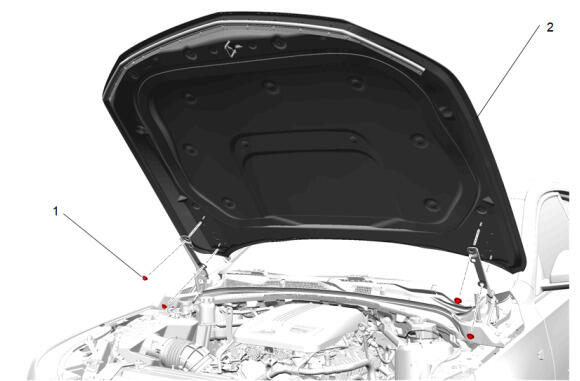

  29. GM5478556Courtesy of GENERAL MOTORS COMPANY

    Hood Hinge Nut (1) - Remove [4x]

  30. With the aid of an assistant, remove the hood (2).

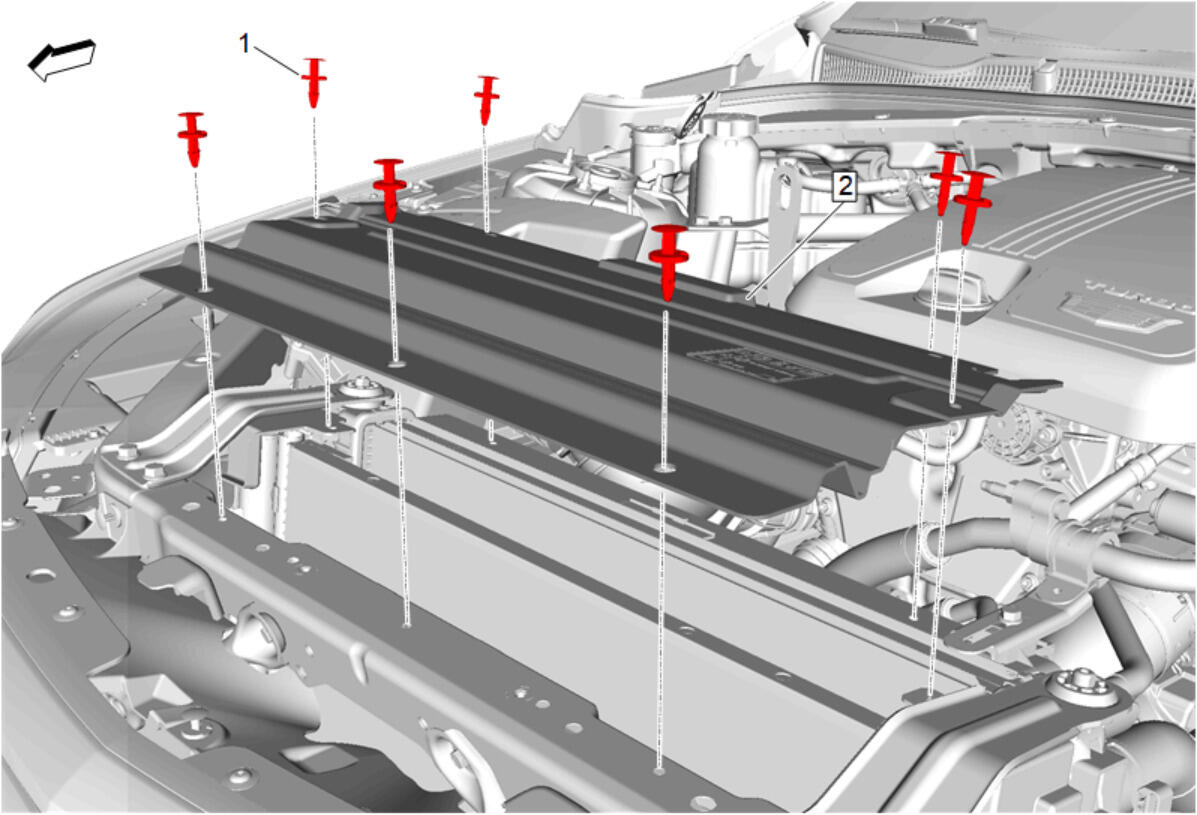

  31. GM5420297Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Remove [7x]

  32. Radiator Air Upper Baffle (2) - Remove
  33. Remove the oil fill cap.
  34. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Remove [2x]

  35. Lift up on the front of the intake manifold cover (2).
  36. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

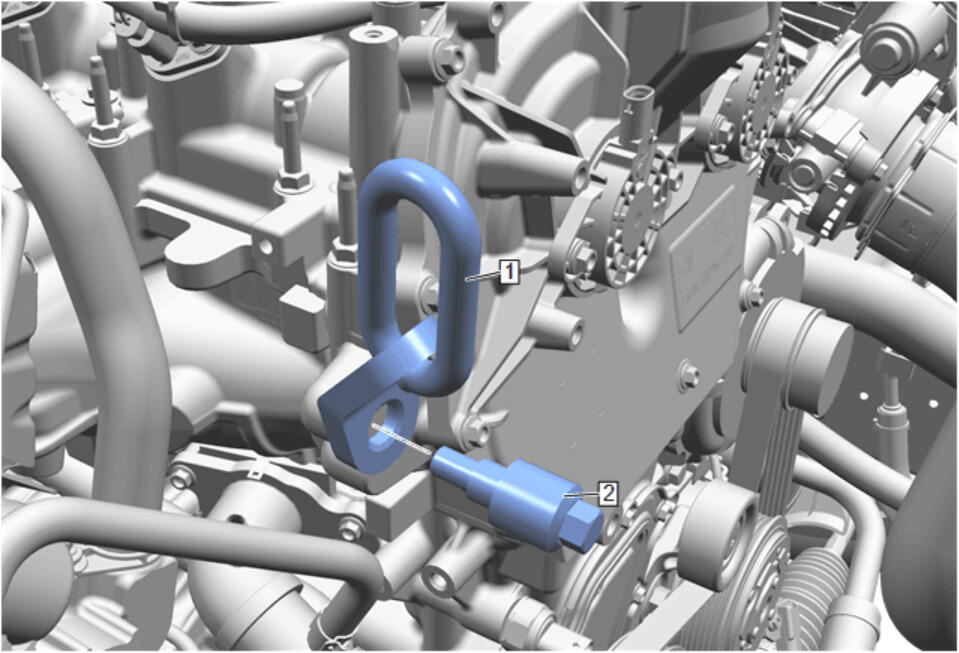

  37. GM5323001Courtesy of GENERAL MOTORS COMPANY

    EN-36857  Engine Lift Bracket Set (1) - Install

    38. CAUTION:

    Refer to Fastener Caution .

  38. EN-51768  Engine Support Fixture Adapter Bolts- M8 (2) - Install and tighten 65 N.m (48 lb ft)

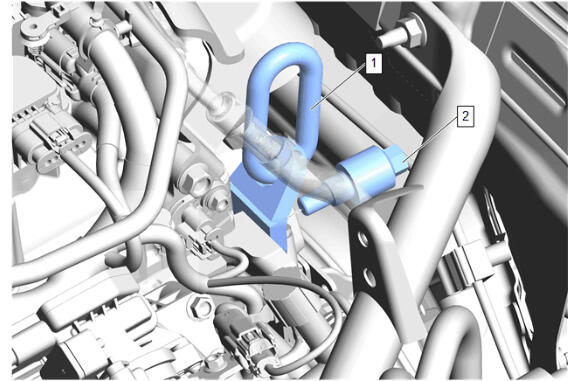

  39. GM5598887Courtesy of GENERAL MOTORS COMPANY

    EN-36857  Engine Lift Bracket Set (1) - Install

  40. EN-51768  Engine Support Fixture Adapter Bolts- M8 (2) - Install and tighten 65 N.m (48 lb ft)

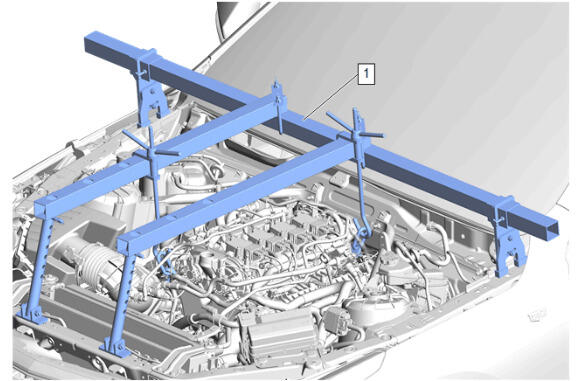

  41. GM5598930Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the engine support fixture only contacts the frame. Do not install on top of fender lip.

    EN-51007  Global Engine Support Fixture (1) - Install
