Installation Procedure

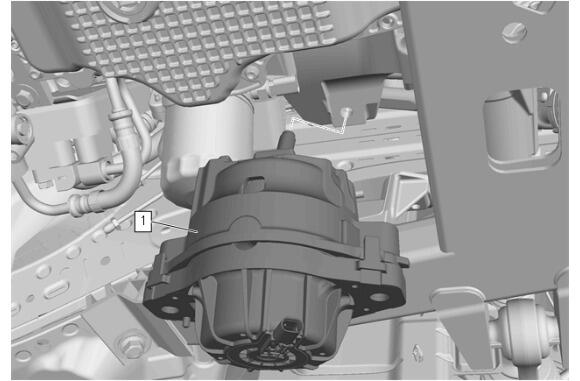

  1. GM5517340Courtesy of GENERAL MOTORS COMPANY

    Engine Mount (1) - Install

  2. Lower the engine.

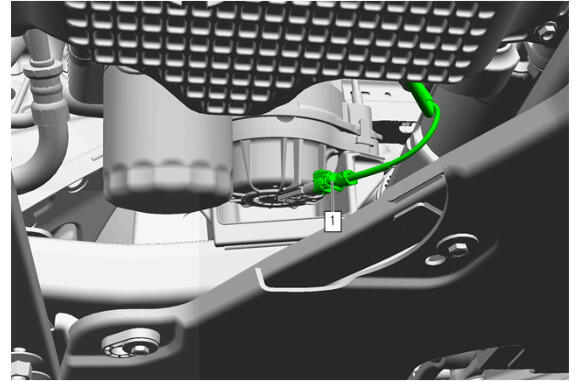

  3. GM5517339Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

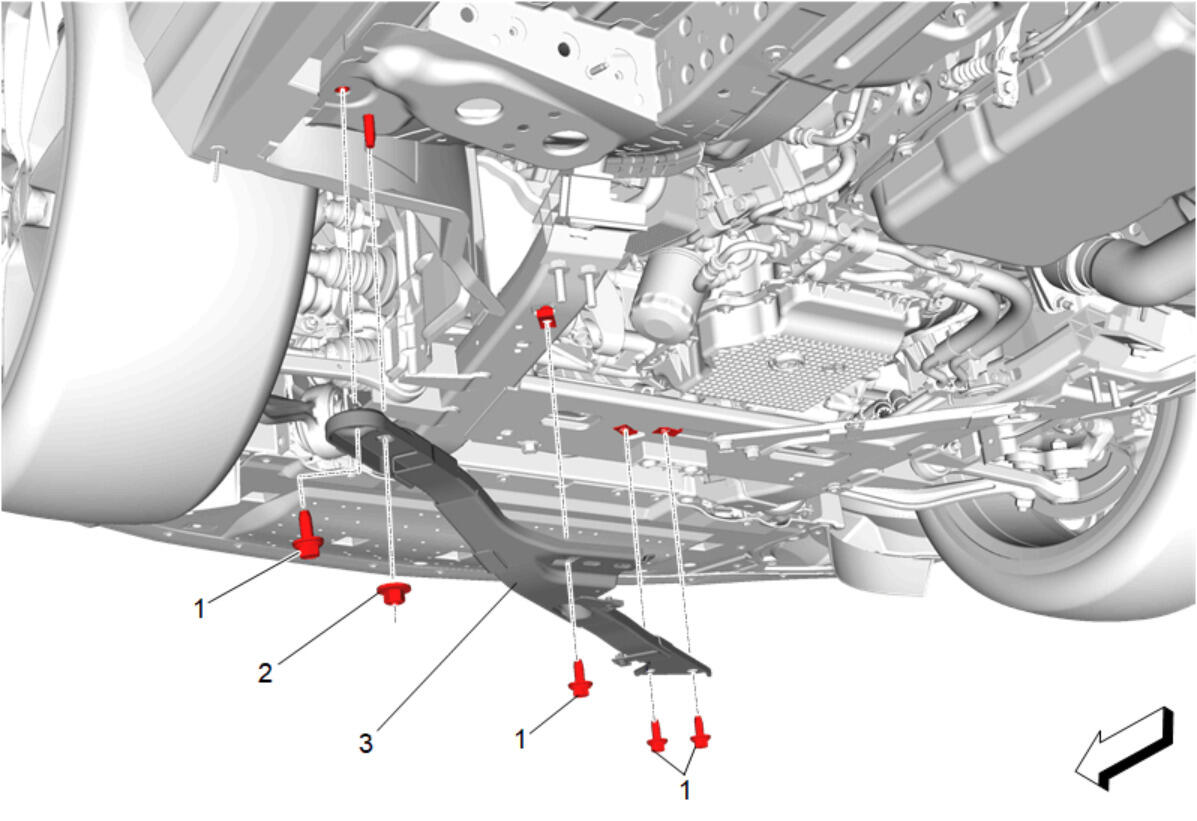

  4. GM5317837Courtesy of GENERAL MOTORS COMPANY

    Front Crossmember Brace (3) - Install

    5. CAUTION:

    Refer to Fastener Caution

  5. Front Crossmember Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications
  6. Front Crossmember Brace Nut (2) - Install and tighten - Fastener Specifications

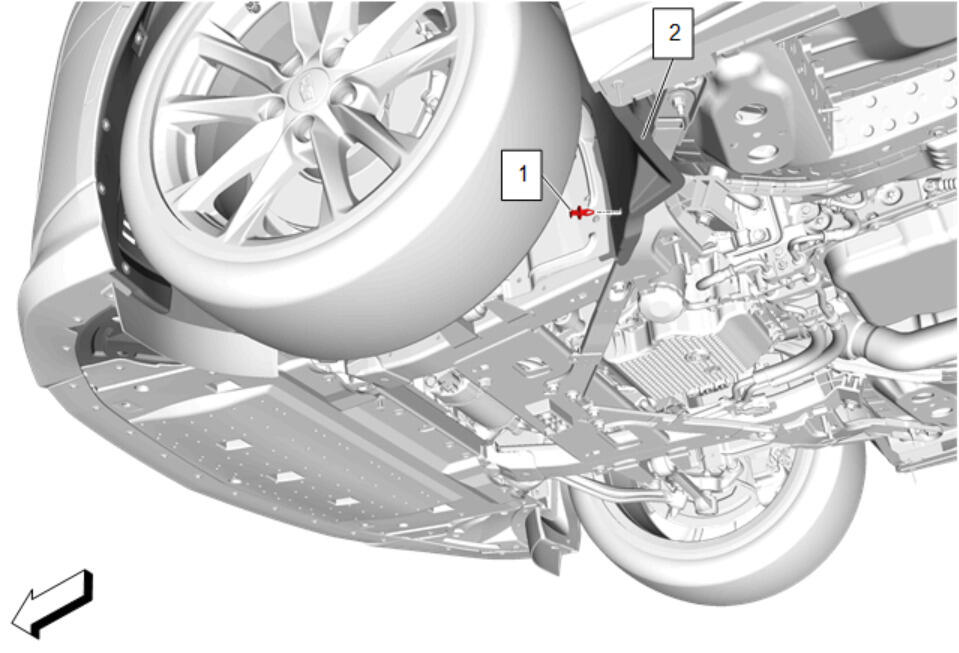

  7. GM5399497Courtesy of GENERAL MOTORS COMPANY

    Push Pin (1) @ Front Wheelhouse Liner (2) - Install

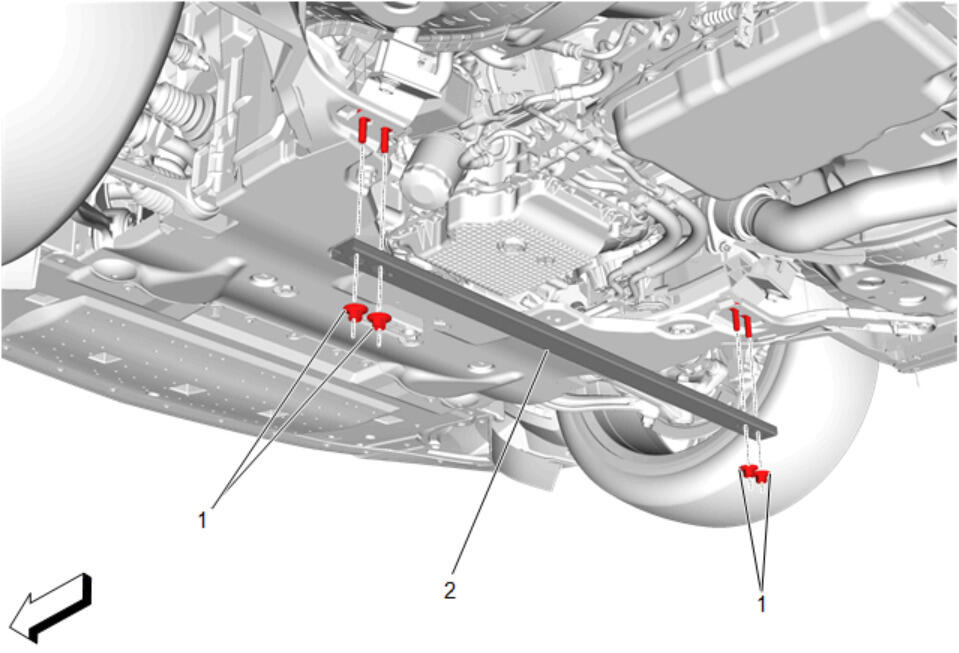

  8. GM5399464Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Front Crossmember Brace (2) - Install

  9. {If equipped} Front Crossmember Brace Nut (1) - Install and tighten [4x] - Fastener Specifications

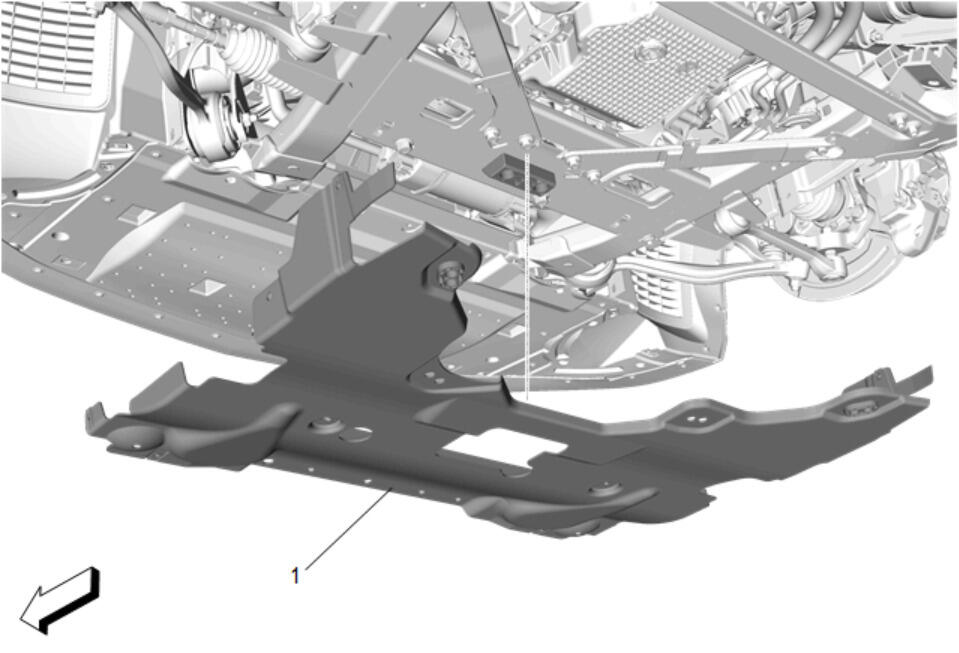

  10. GM5398004Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector - (1) Install

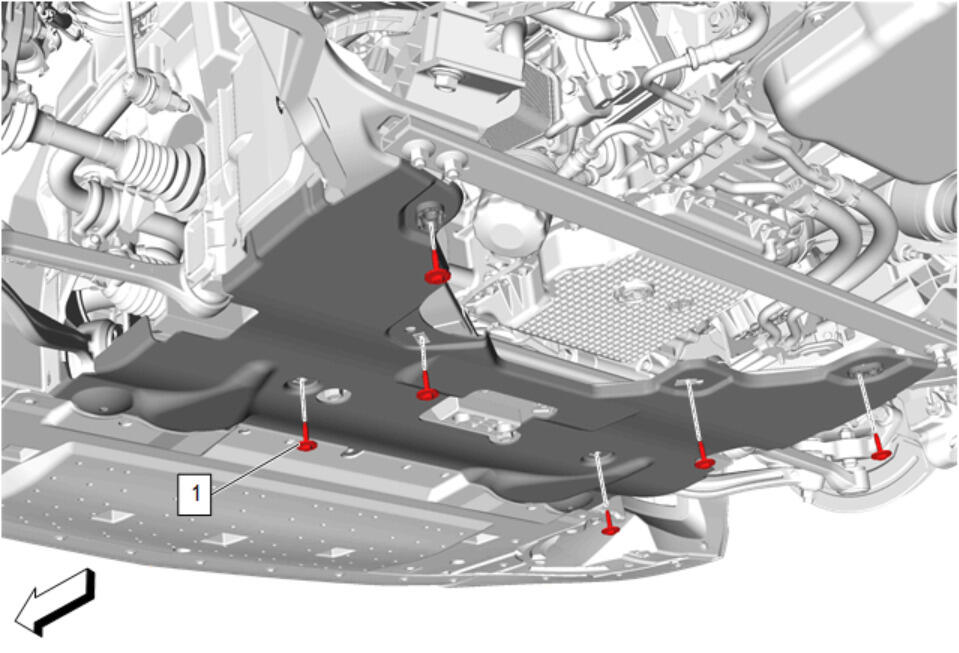

  11. GM5398001Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications

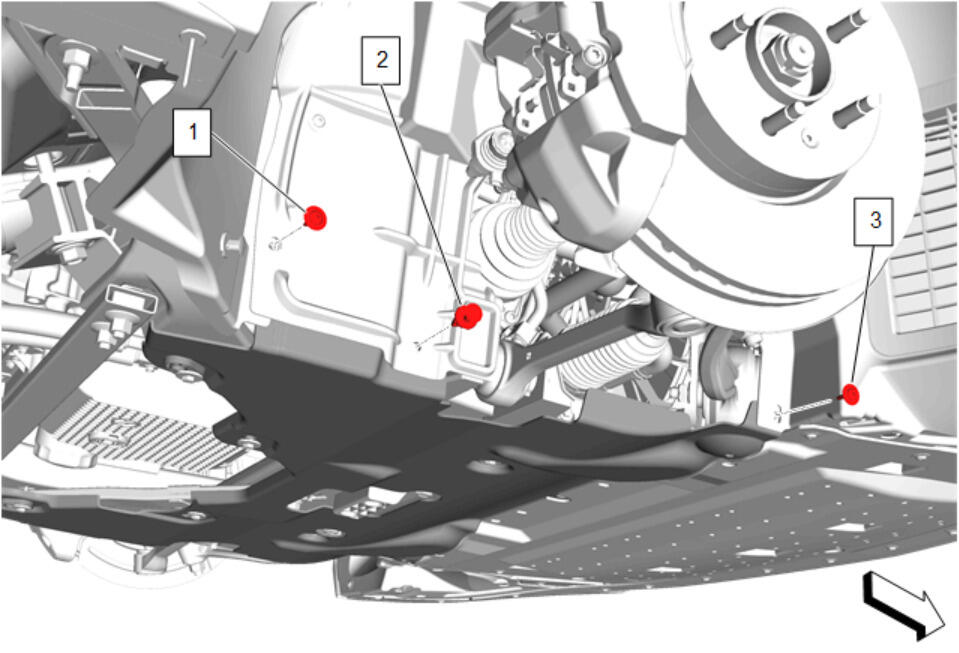

  12. GM5398000Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications

  13. Push Pin (2) - Install and tighten
  14. Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications

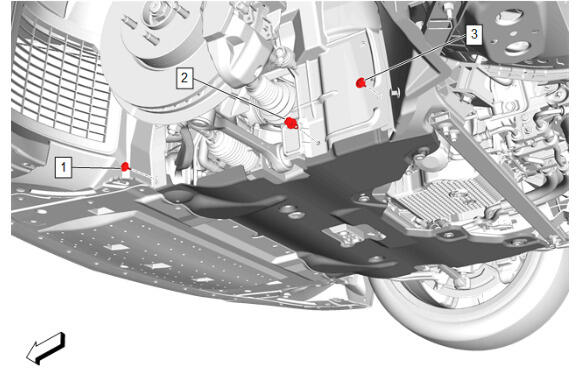

  15. GM5397993Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications

  16. Push Pin (2) - Install
  17. Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications

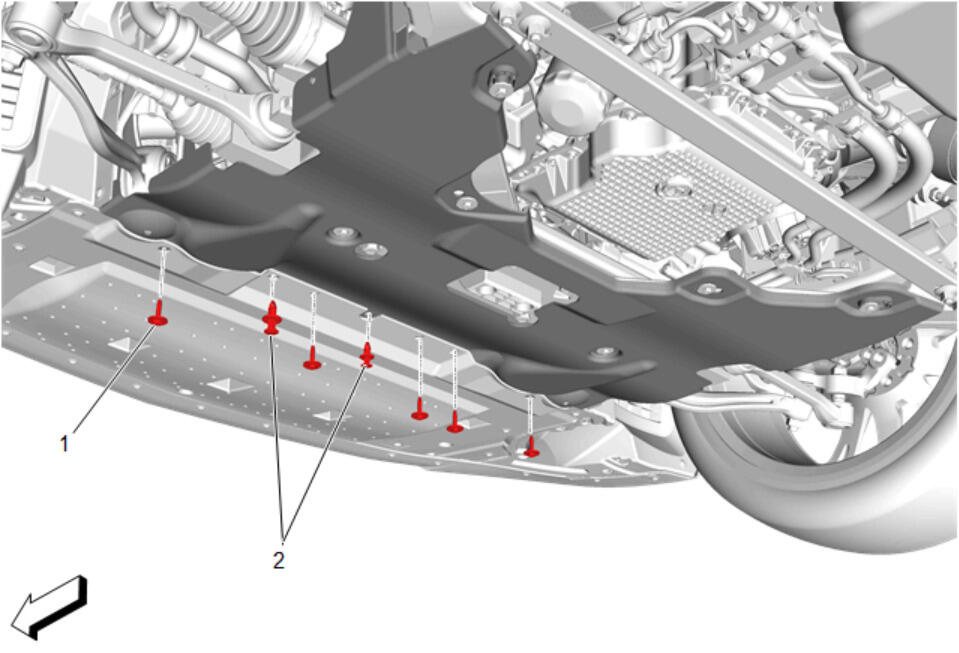

  18. GM5397986Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications

  19. Push Pin (2) - Install [2x]
  20. Lower the vehicle.

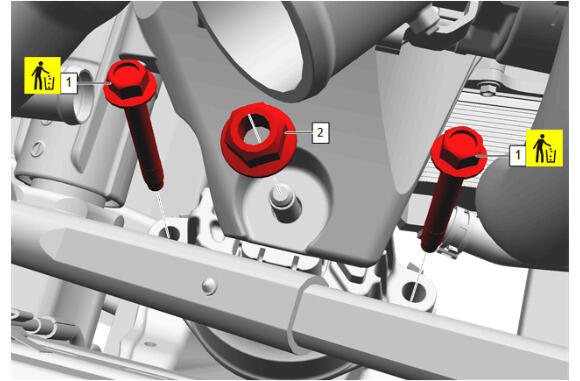

  21. GM5517338Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Nut (2) - Install and tighten - Fastener Specifications

    22. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  22. Engine Mount Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications
  23. Remove the engine support fixture. Engine Support Fixture

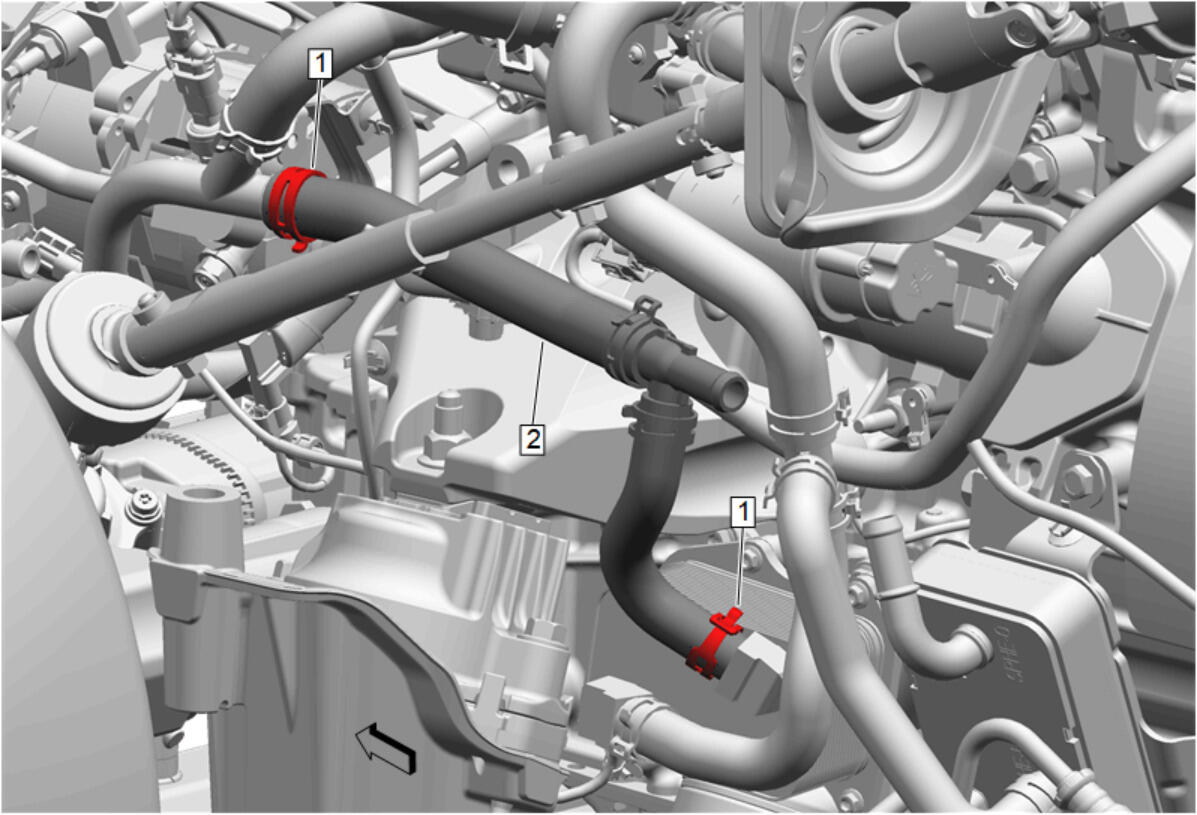

  24. GM5396237Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Coolant Outlet Hose (2) - Install

  25. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type

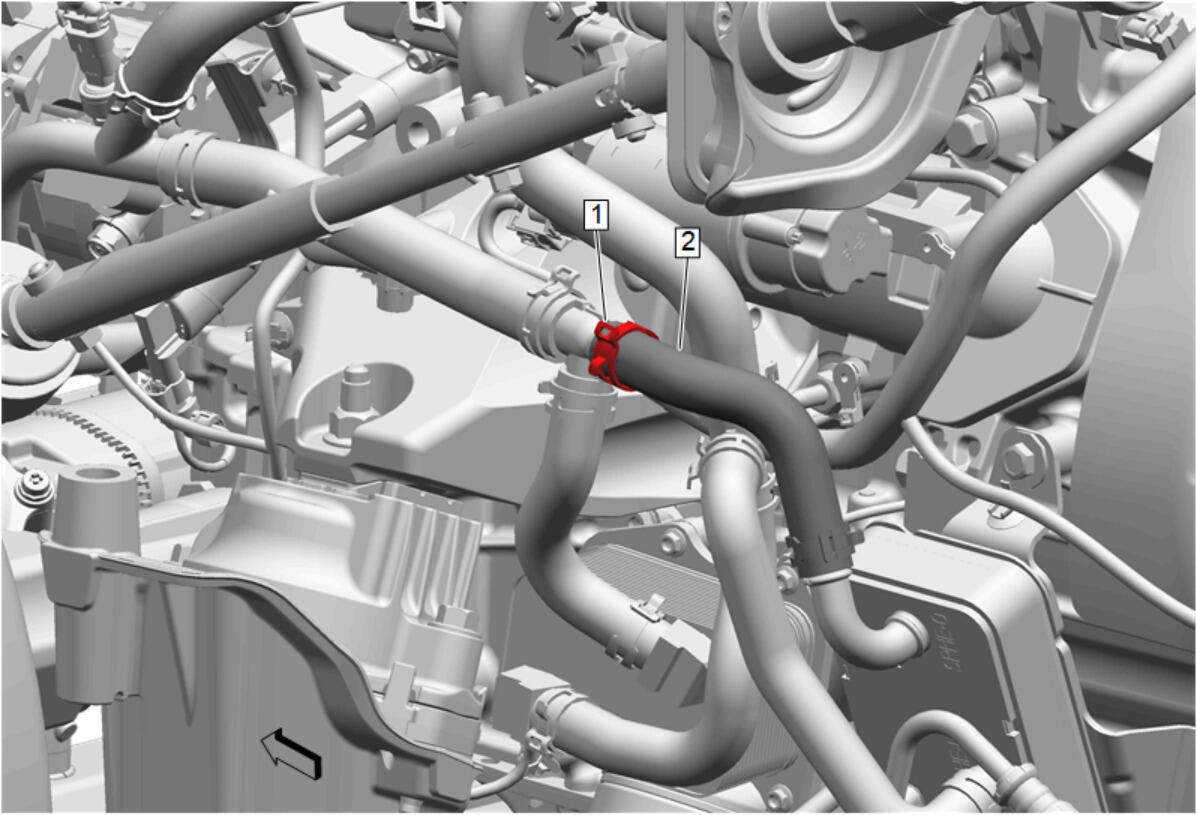

  26. GM5396233Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) @ Engine Oil Cooler Coolant Outlet Hose - Install

  27. Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

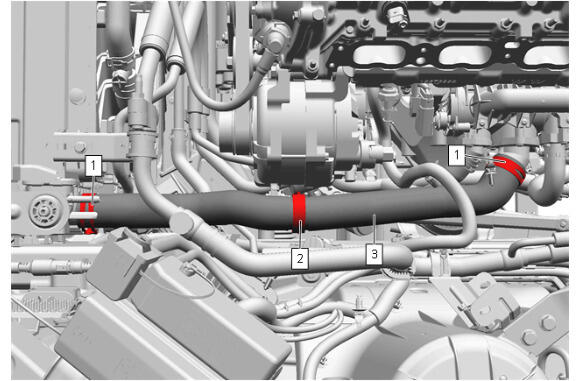

  28. GM5517337Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (3) - Install

  29. Radiator Inlet Hose Clip (2) @ Radiator Inlet Hose Bracket - Install
  30. Radiator Inlet Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type

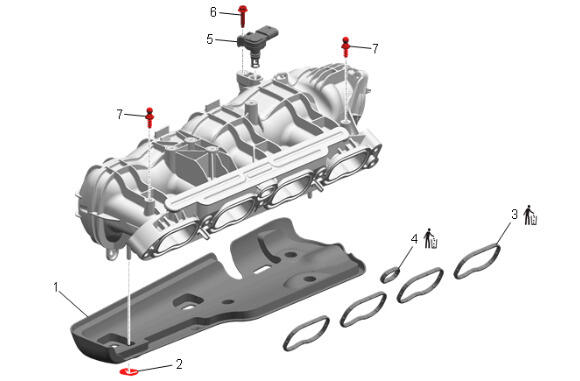

  31. Fig 1: Identifying Intake Manifold Components (L3B)
    GM5045008Courtesy of GENERAL MOTORS COMPANY

    Crankcase Vent Passage Seal (4) - Install NEW

  32. Intake Manifold Gasket (3) - Install NEW [4x]

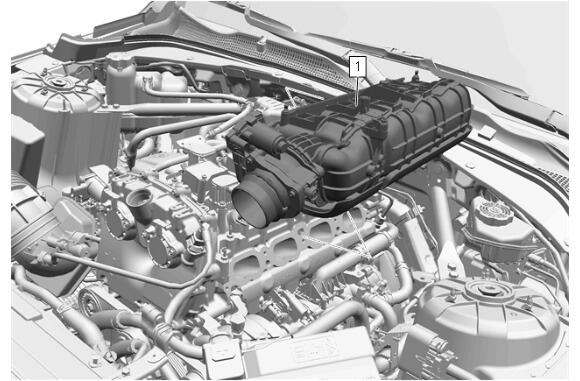

  33. GM5507557Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Install

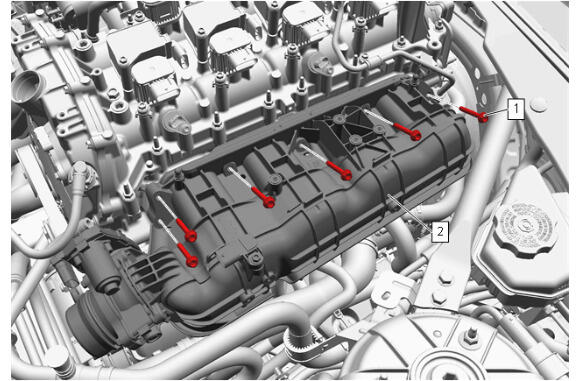

  34. GM5508646Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Intake Manifold Bolt (1) - Install and tighten [6x] - Fastener Specifications

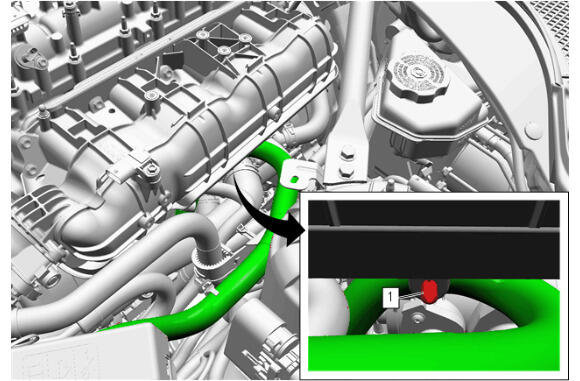

  35. GM5507451Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

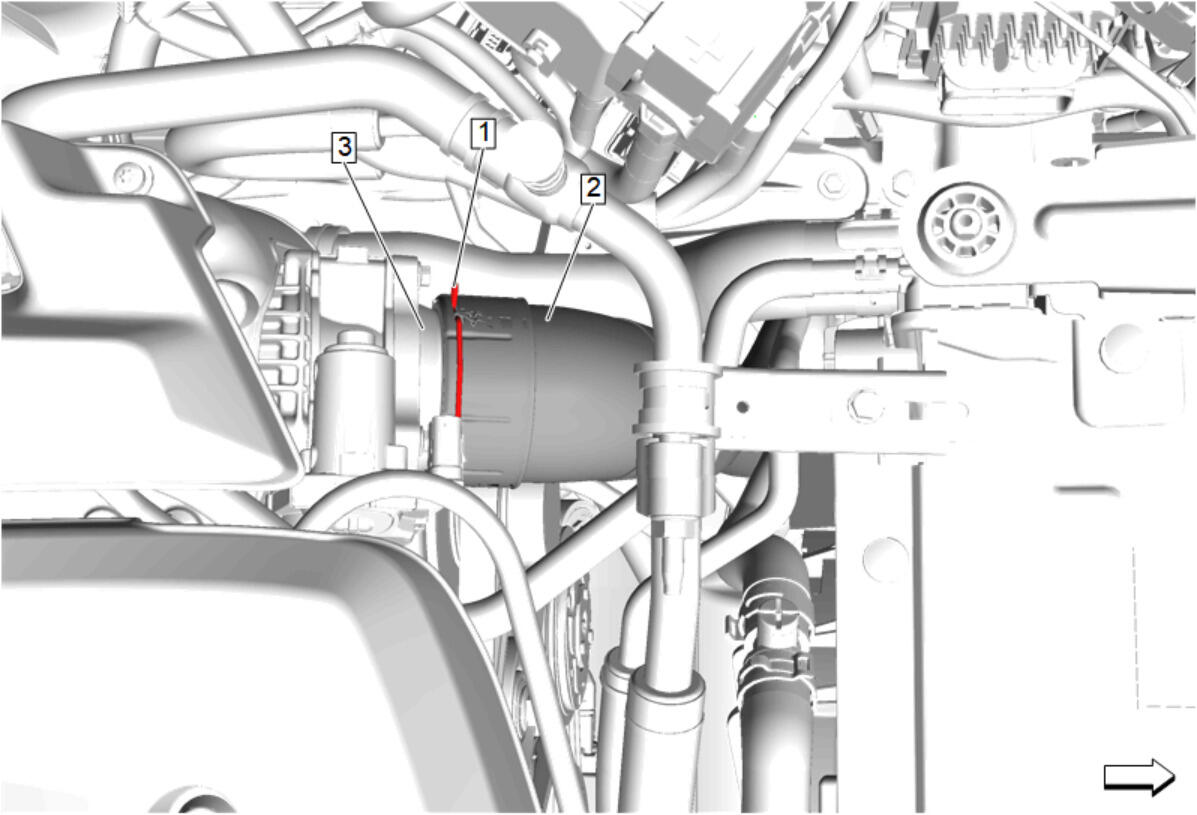

  36. GM5399157Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  37. Retainer Spring (1) - Engage

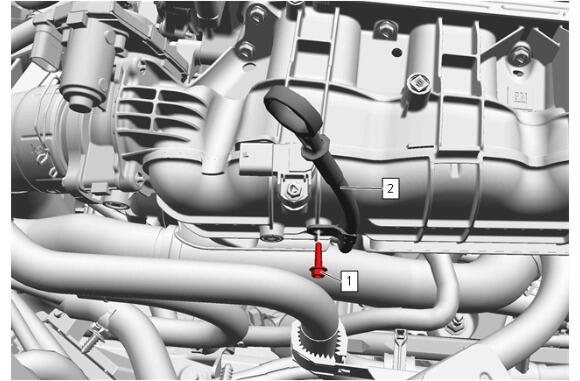

  38. GM5517201Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (2) - Install

  39. Oil Level Indicator Tube Bracket Bolt (1) - Install and tighten - Fastener Specifications

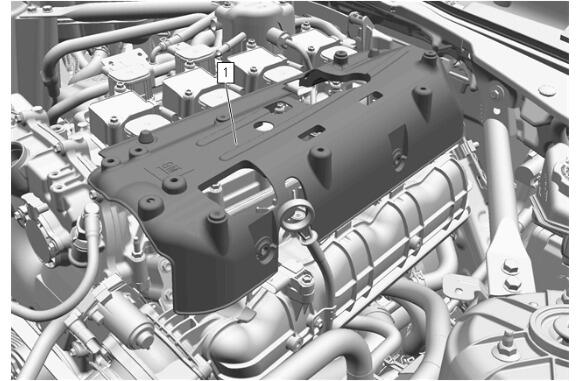

  40. GM5507441Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Cover (1) - Install

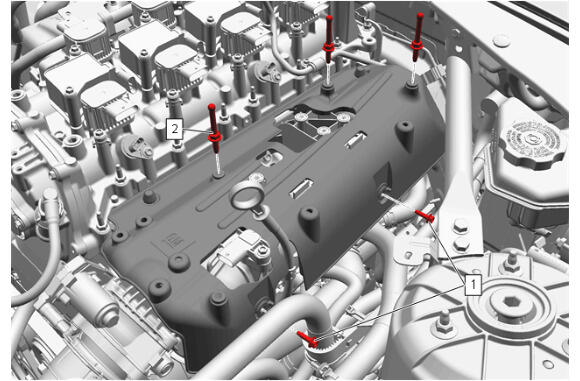

  41. GM5507437Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Stud (2) - Install and tighten [3x] - Fastener Specifications

  42. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

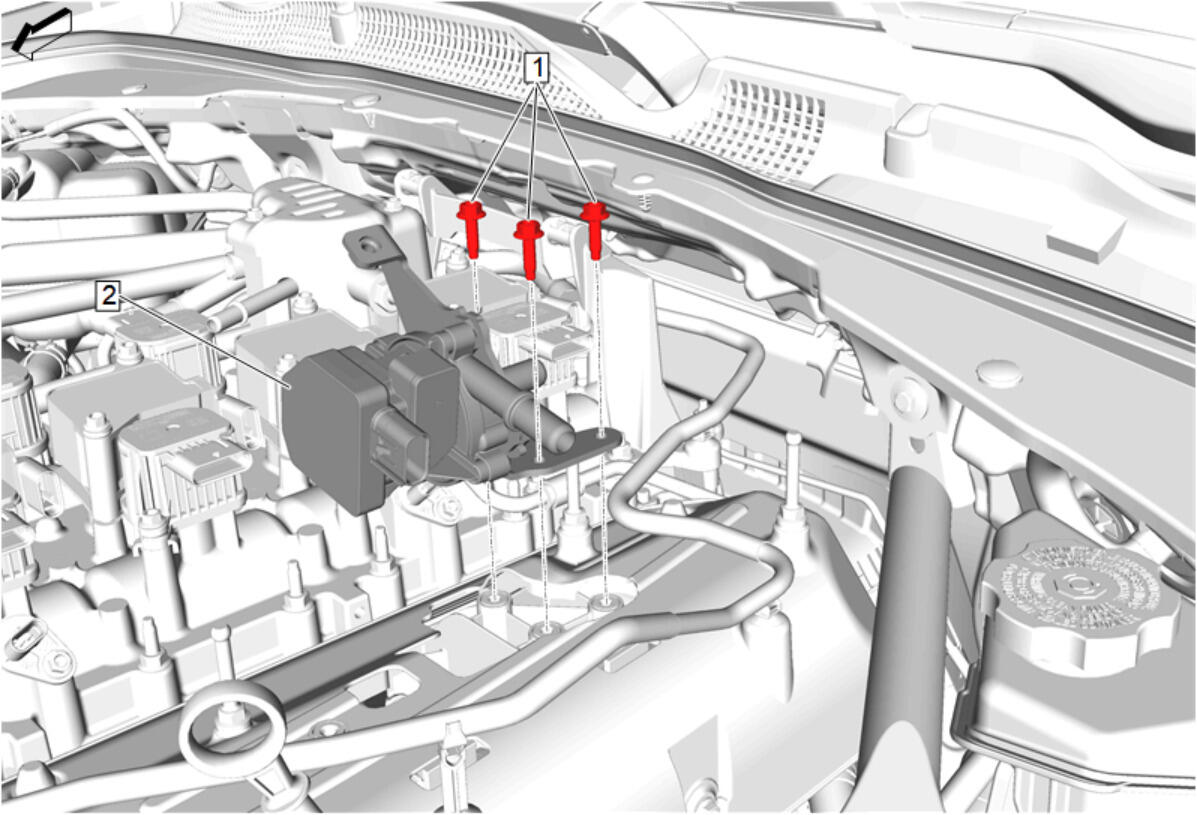

  43. GM5402098Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Pump (2) - Install

  44. Evaporative Emission Canister Purge Pump Bolt (1) - Install and tighten [3x] - Fastener Specifications
  45. GM5504108Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (4) - Reposition

  46. Retainer (3) - Install [4x]
  47. Electrical Connector (2) - Connect [2x]
  48. Engine Wiring Harness Bolt (1) - Install and tighten - Fastener Specifications

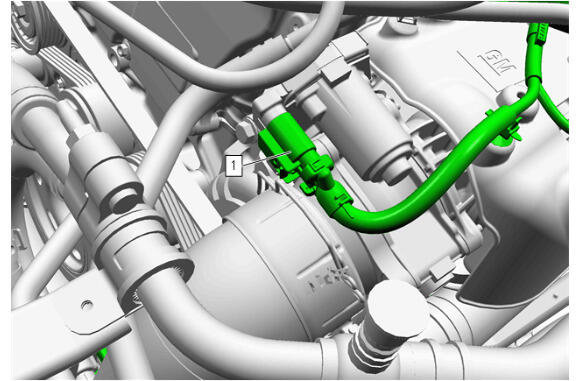

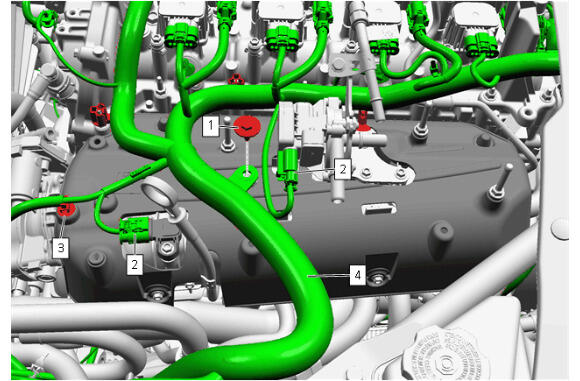

  49. GM5509132Courtesy of GENERAL MOTORS COMPANY

    Throttle Body Electrical Connector (1) - Connect

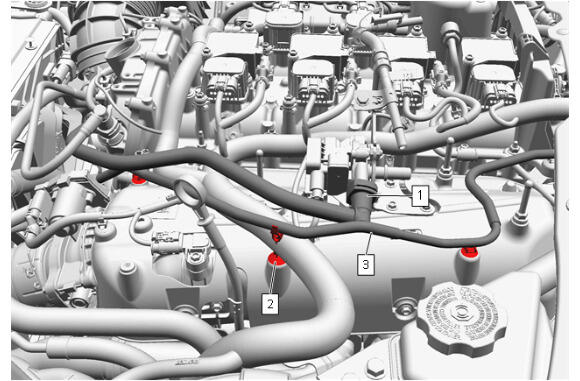

  50. GM5504095Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose (3) - Reposition

  51. Retainer (2) - Install [3x]
  52. Evaporative Emission Canister Purge Tube (1) - Connect

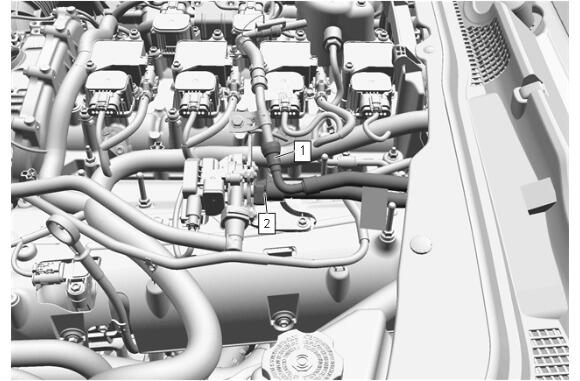

  53. GM5504092Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) - Connect

  54. Fuel Feed Pipe (1) - Connect

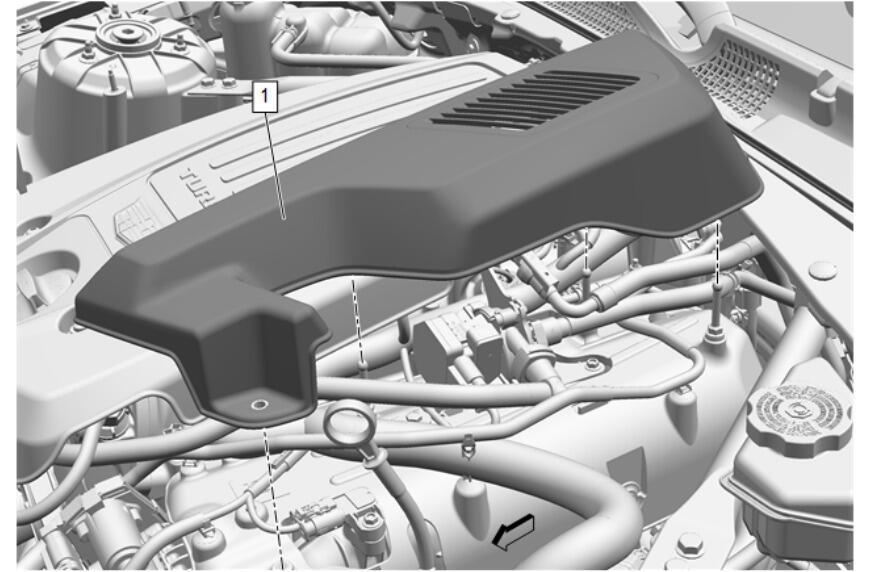

  55. GM5456829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the intake manifold cover insulator retainers fully engage the intake manifold cover studs.

    Intake Manifold Cover Insulator (1) - Install

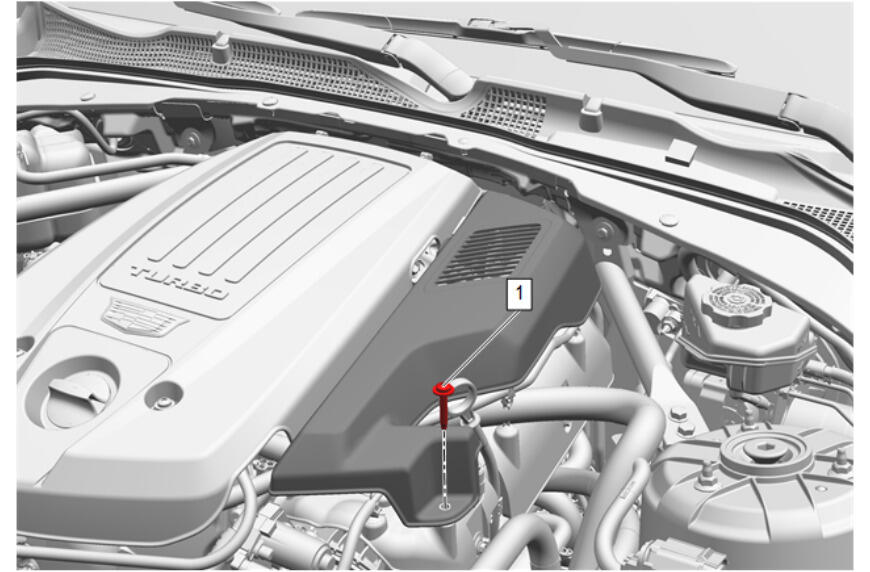

  56. GM5456746Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications

  57. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  58. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  59. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  60. Install the oil fill cap.
  61. Fill the cooling system. Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  62. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  63. Pressurize the fuel system and inspect for leaks.
  64. Check the cooling system for leaks.
  65. Perform the intake system learned values reset. Intake System Learned Values Reset
  66. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
