Installation Procedure
- Ensure the phenolic spacer remains in place.
- Use the EN-51007 Global Engine Support Fixture to lower the right side of the engine onto the engine mount.

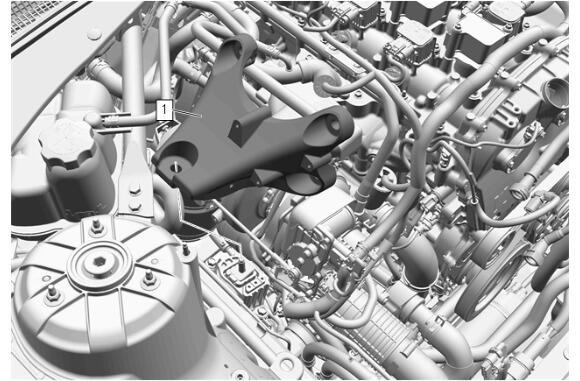

Engine Mount Bracket (1) - Install
- CAUTION:
Refer to Fastener Caution .
CAUTION:Refer to Torque-to-Yield Fastener Caution .

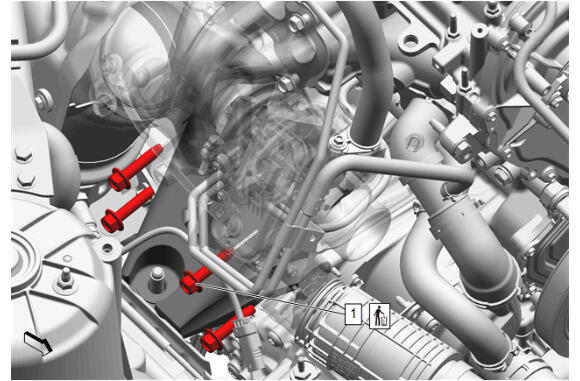

Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
- Use the EN-51007 Global Engine Support Fixture to lower the engine onto the engine mount.

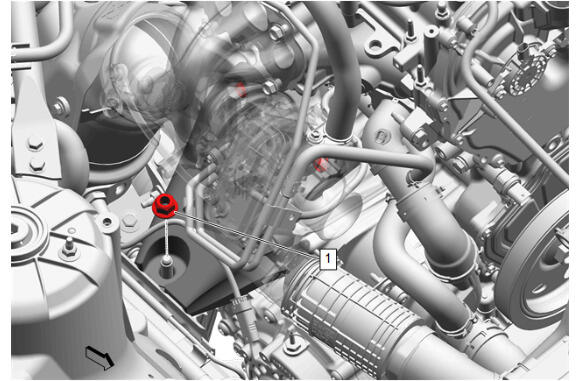

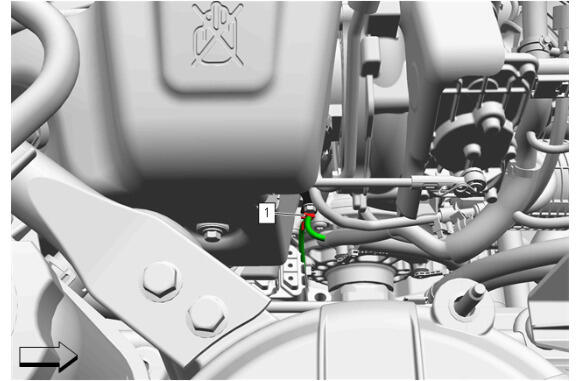

Engine Mount Nut (1) - Install NEW and tighten - Fastener Specifications

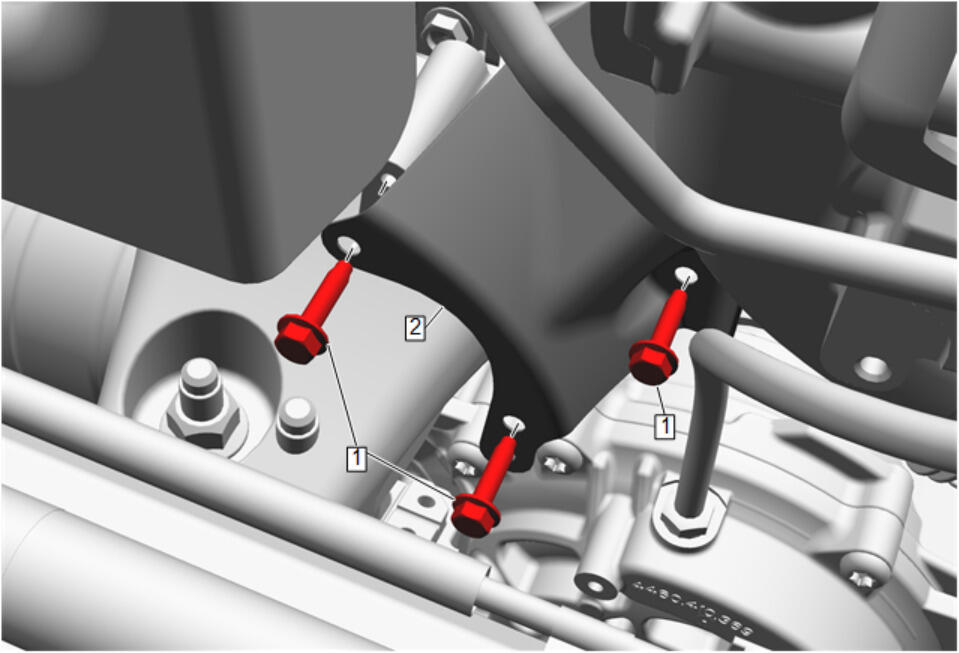

Water Pump Cover (2) - Install
- Water Pump Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Retainer (1) - Install

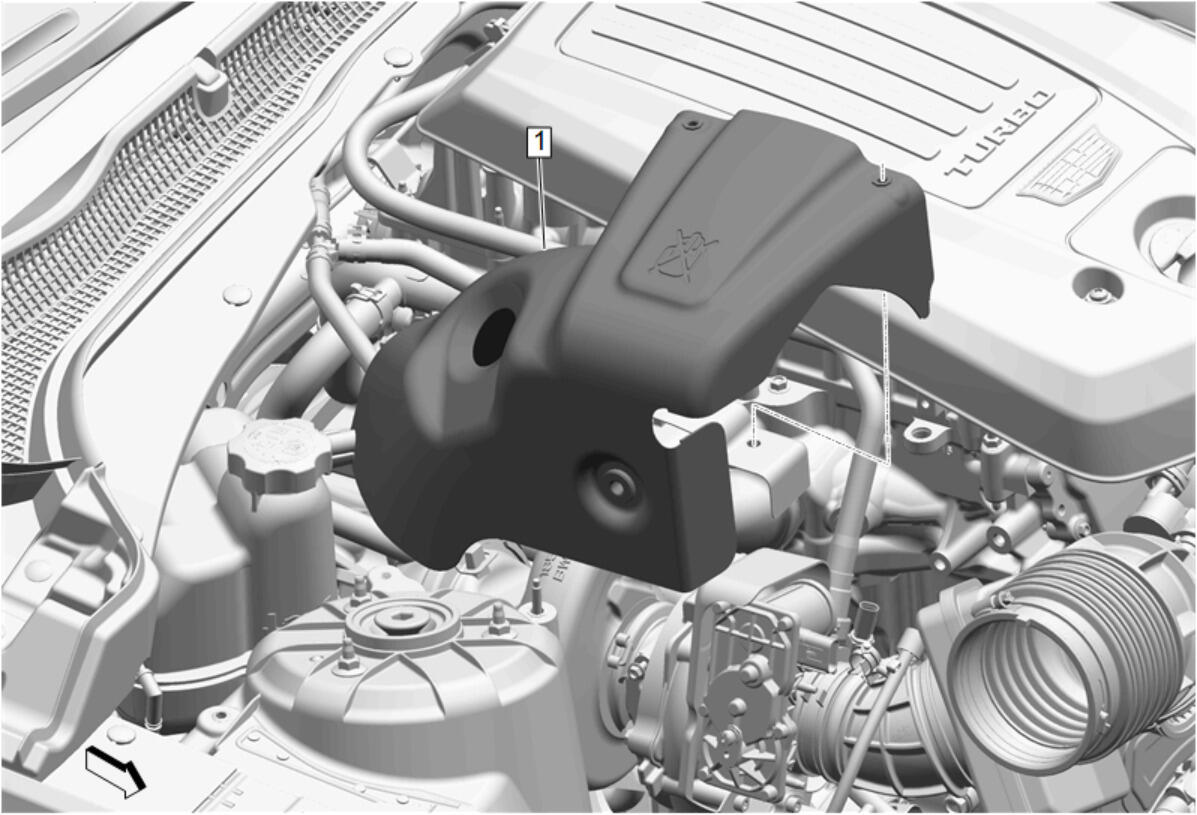

Turbocharger Heat Shield (1) - Install

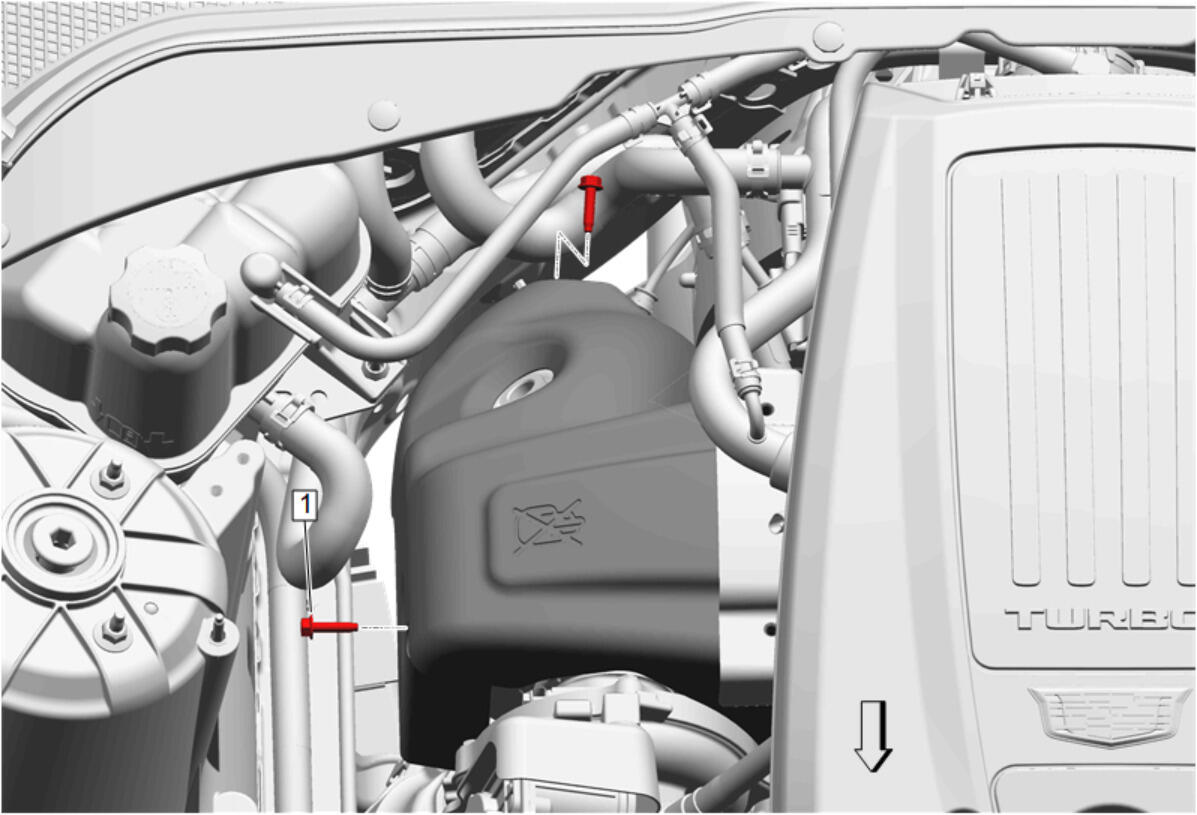

Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
- CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:A special anti-seize compound is used on the heated oxygen sensor threads. The compound consists of liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or service sensors will have the compound already applied to the threads. IF a sensor is removed and is to be reinstalled, the threads MUST have an anti-seize compound applied before installation. Adhesives, Fluids, Lubricants, and Sealers
Using the EN-6179 Heated Oxygen Sensor Remover/Installer, install the heated oxygen sensor (1). Fastener Specifications
- Connect the electrical connector.

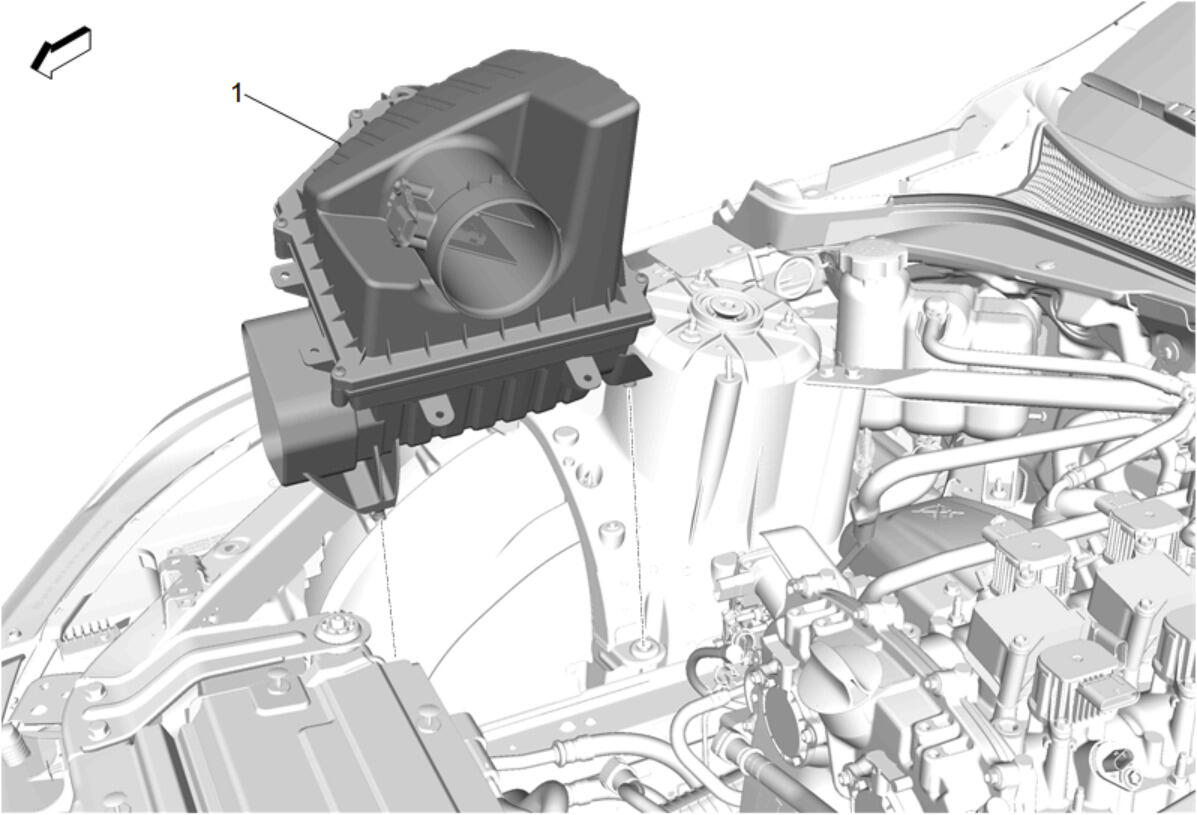

Air Cleaner Assembly (1) - Install

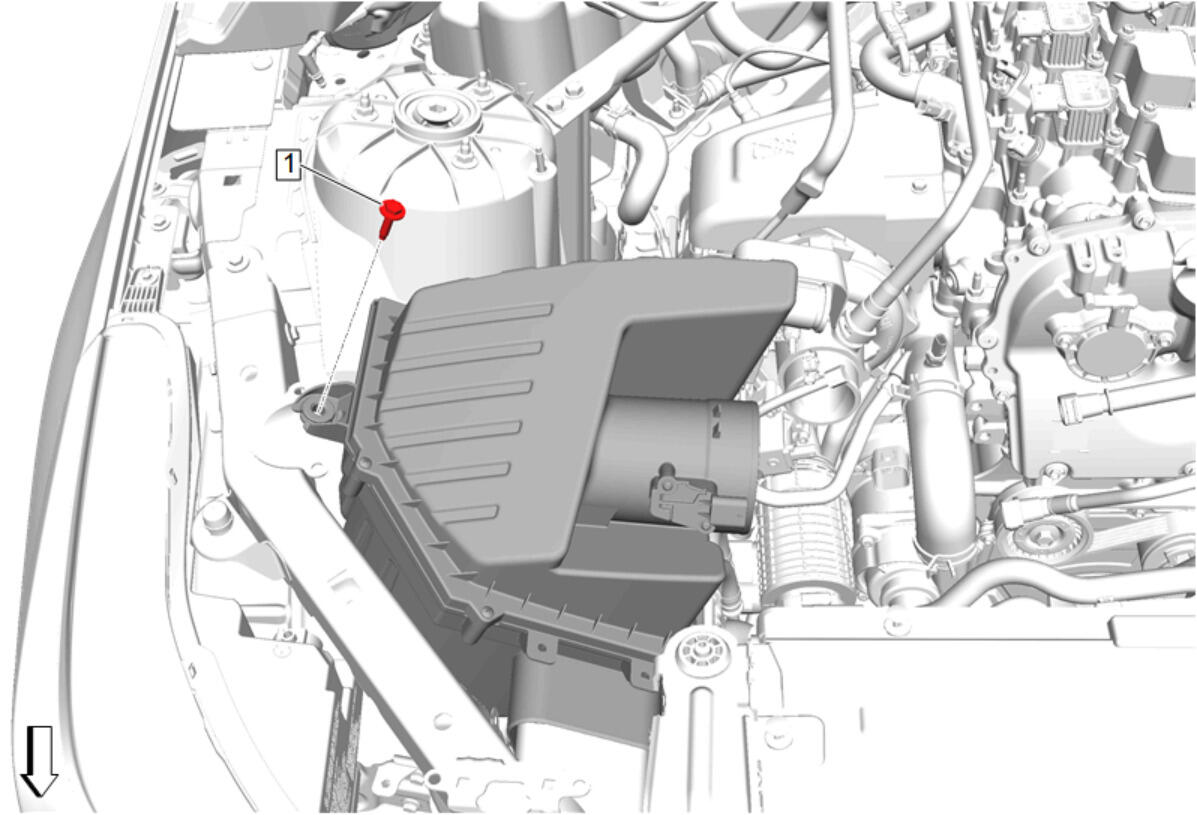

Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.

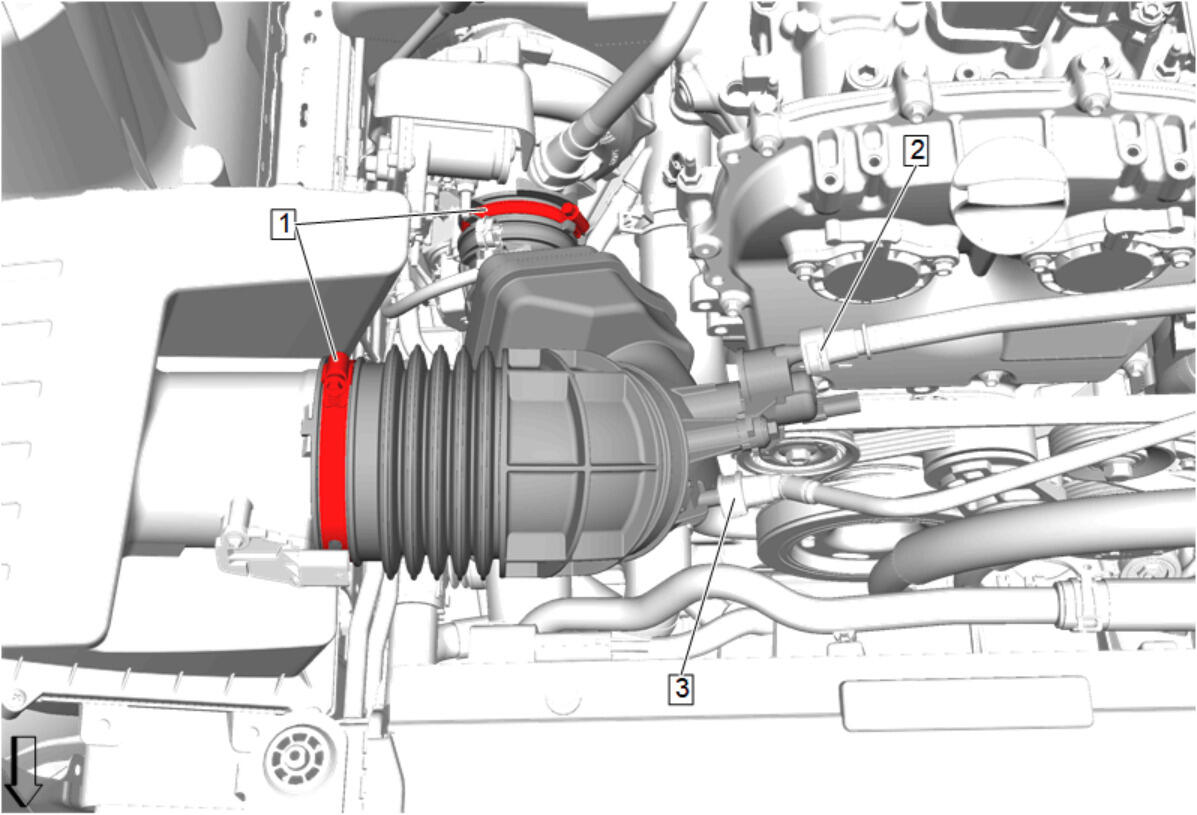

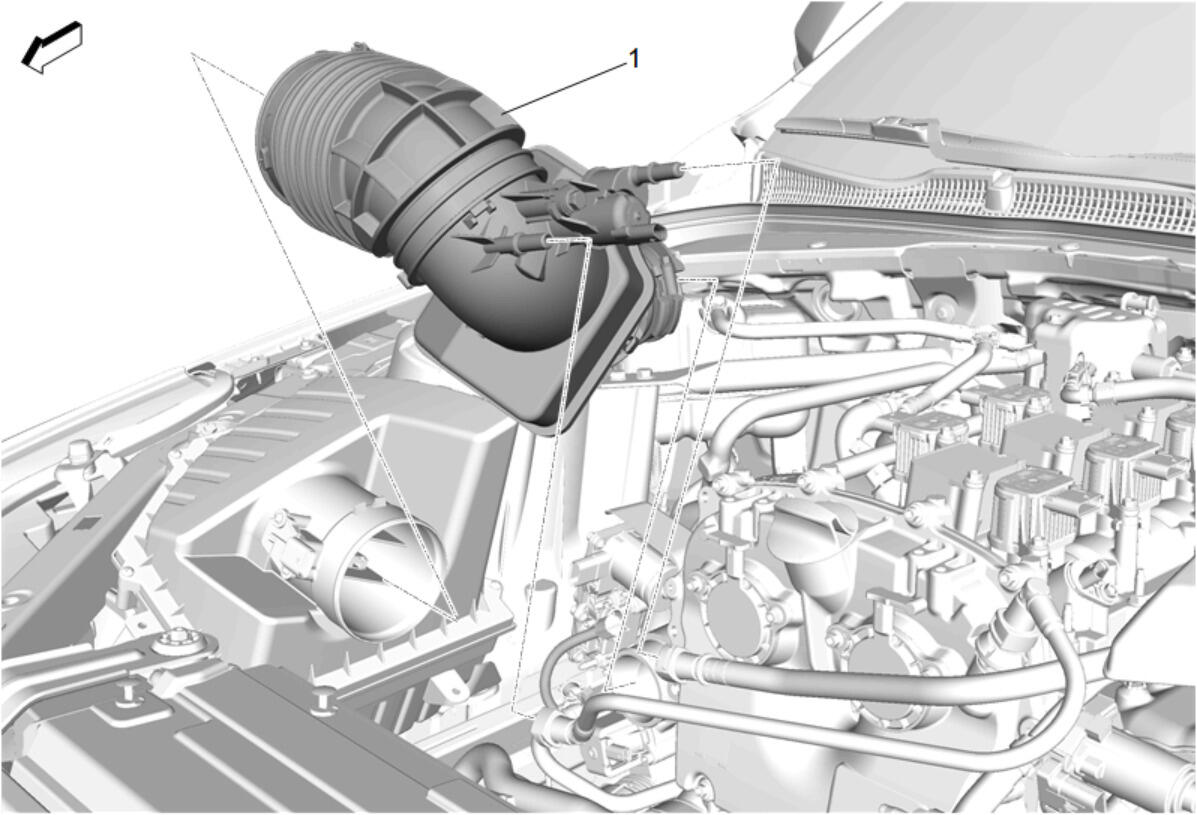

Air Cleaner Outlet Duct (1) - Install

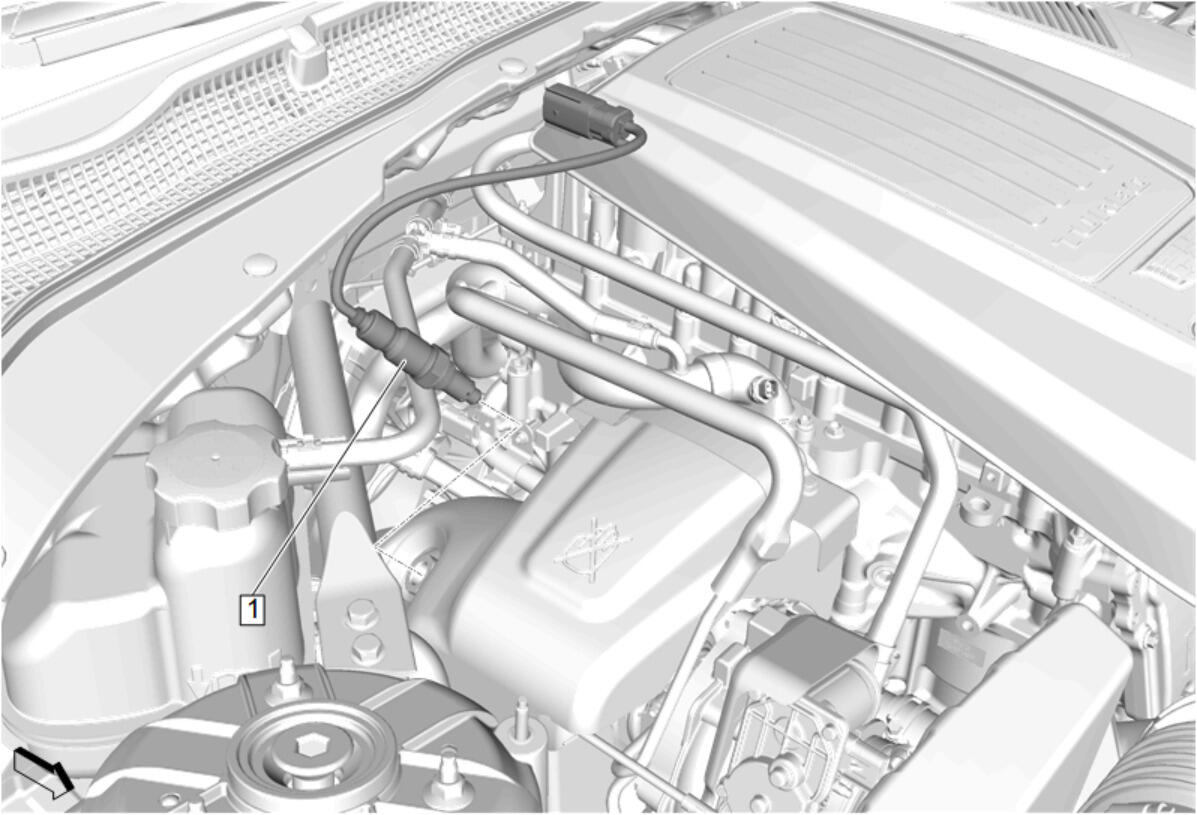

- Electrical Connector @ Evaporative Emission Canister Purge Solenoid Valve - Connect
Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications

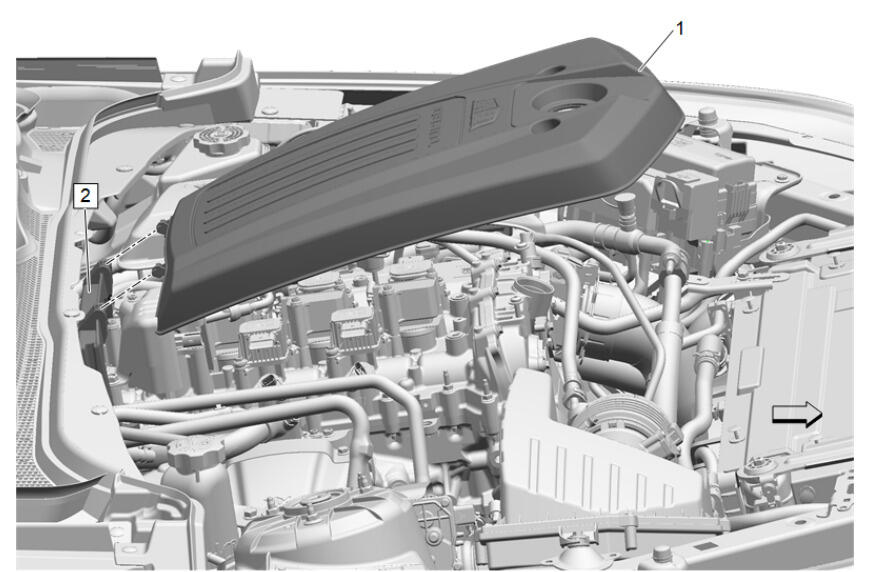

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Push down on the front of the intake manifold cover (2).

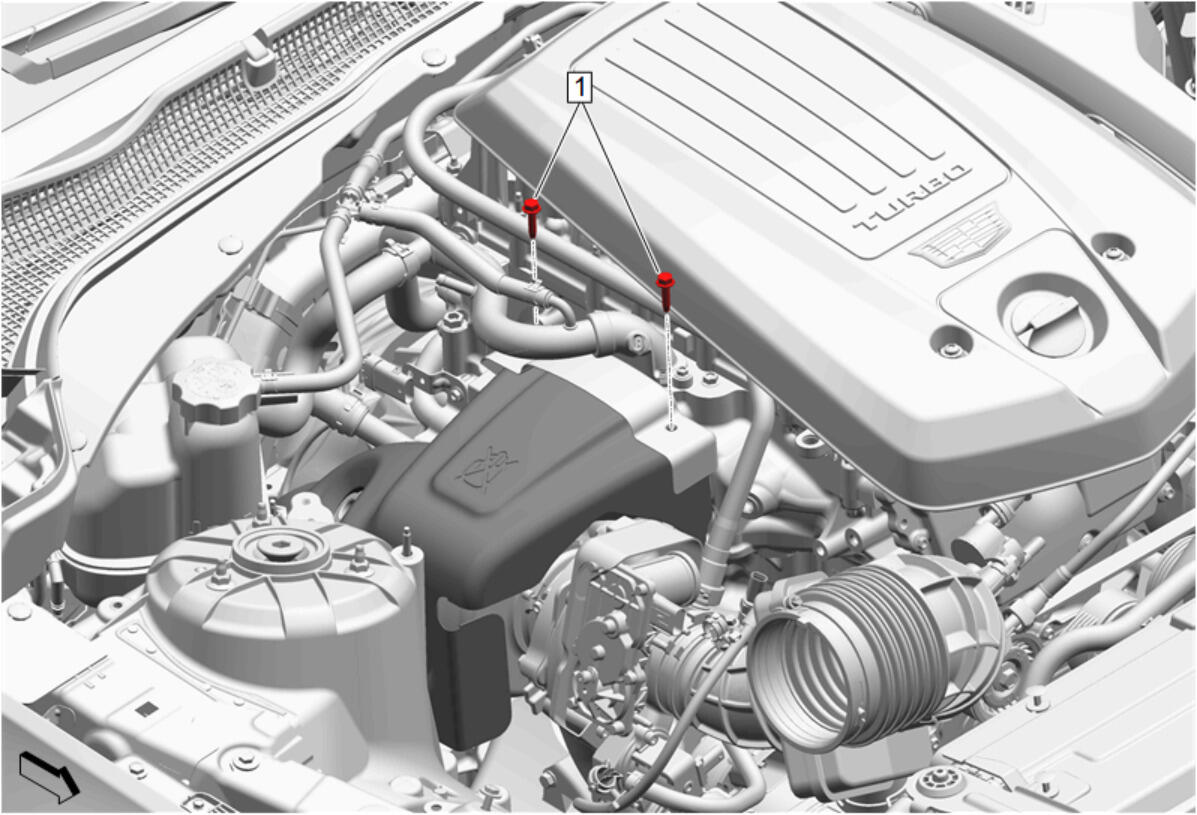

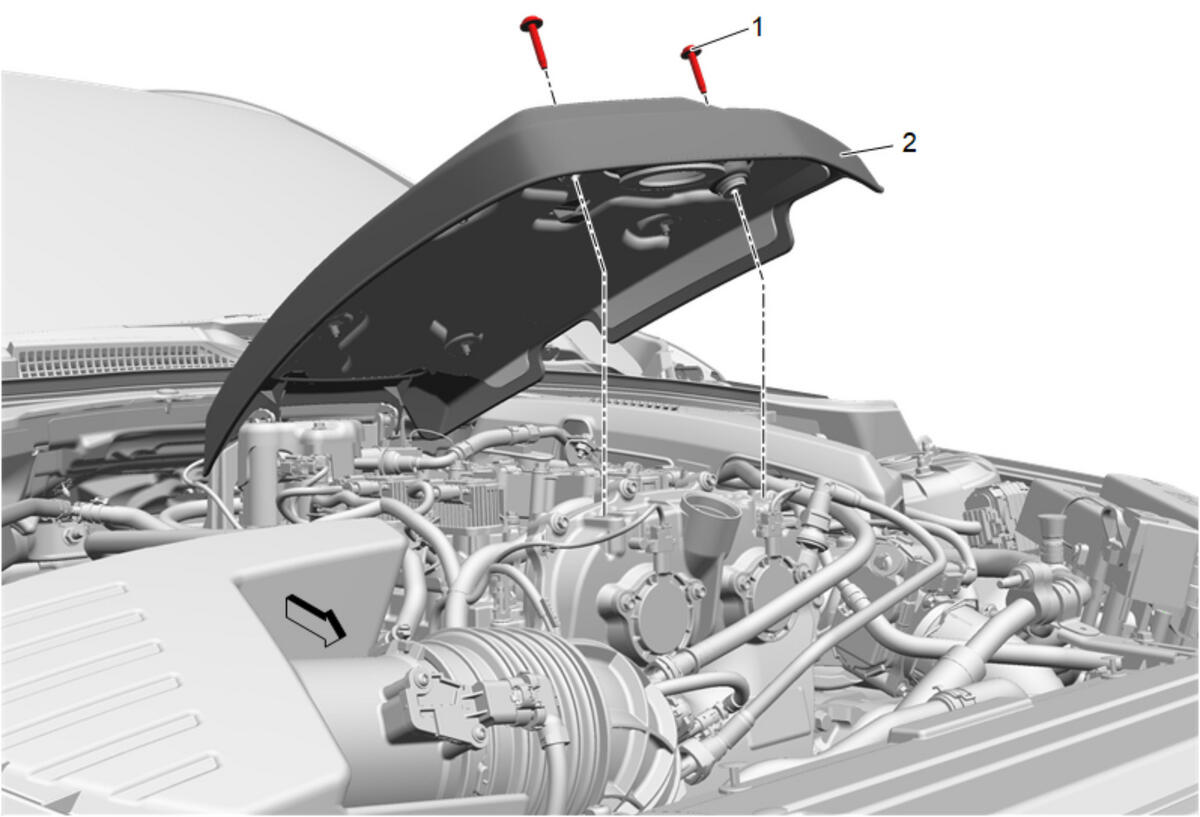

- Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the oil fill cap.
- Connect the battery. Battery Negative Cable Disconnection and Connection
- Inspect the exhaust system for leaks.
Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.
