Installation Procedure

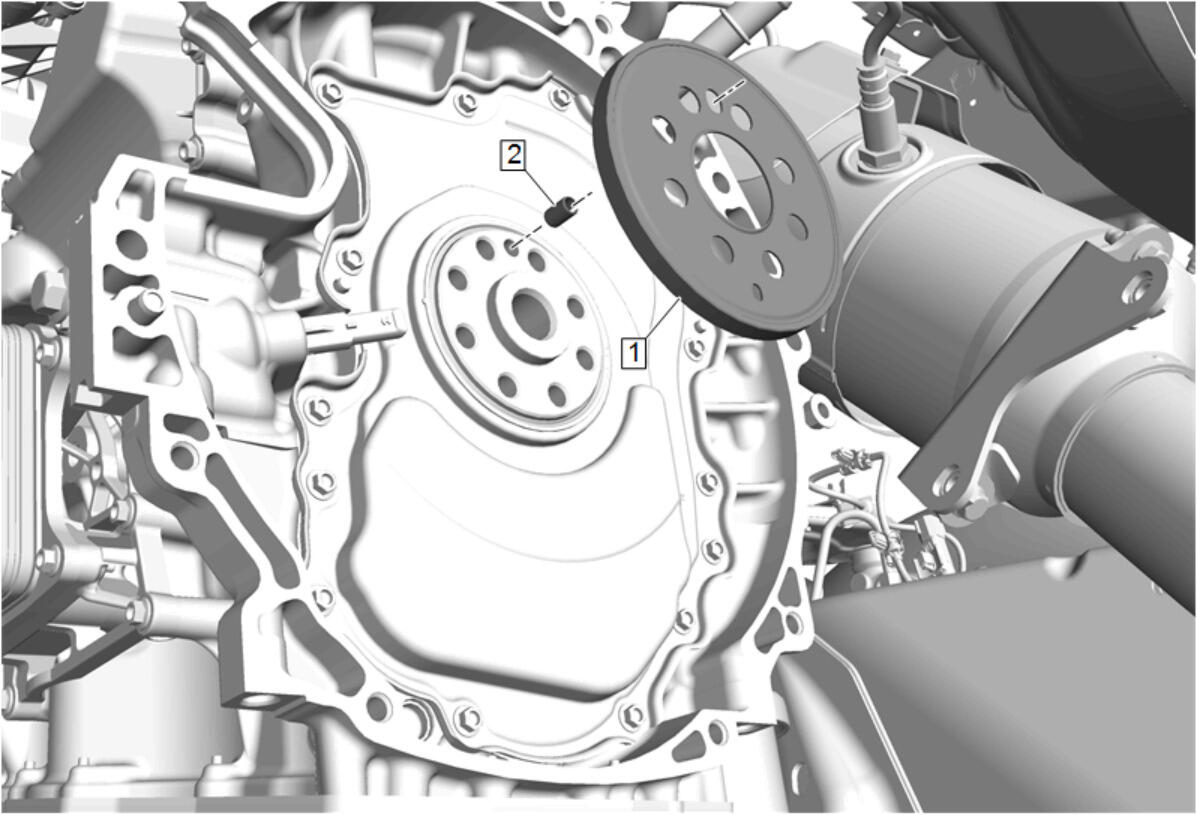

  1. GM5140979Courtesy of GENERAL MOTORS COMPANY

    Flywheel Locating Pin (2) - Install

  2. Crankshaft Position Sensor Reluctor Ring (1) - Install

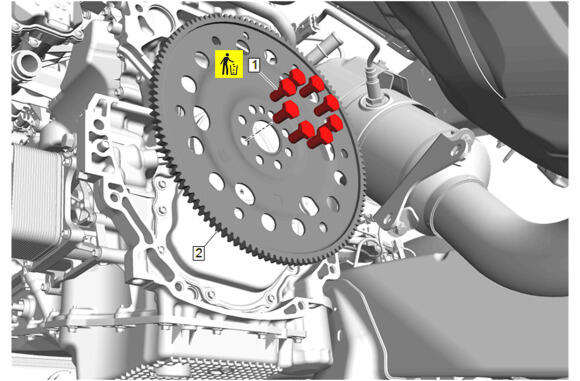

  3. GM5138790Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  4. Automatic Transmission Flex Plate (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Automatic Transmission Flex Plate Bolt (1) - Install NEW and tighten in sequence [8x] - Fastener Specifications

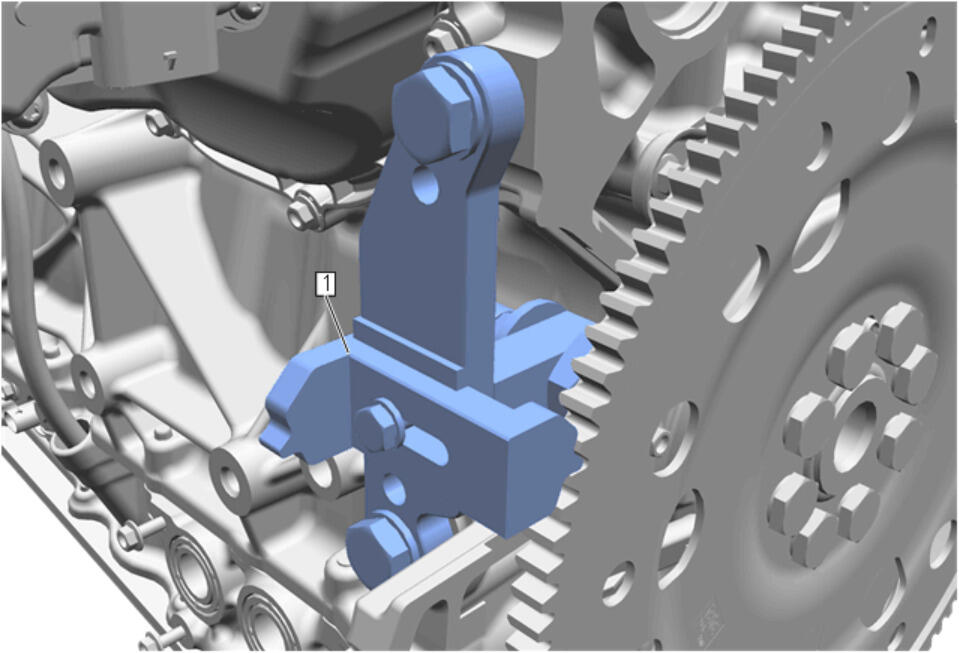

  6. GM5150614Courtesy of GENERAL MOTORS COMPANY

    Remove the EN-52476  Flywheel Holding Tool

  7. Install the transmission. Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
