Removal Procedure

Remove the transmission. Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
Courtesy of GENERAL MOTORS COMPANY

Install the EN-52476 Flywheel Holding Tool (1) through the starter mounting hole.
Courtesy of GENERAL MOTORS COMPANY

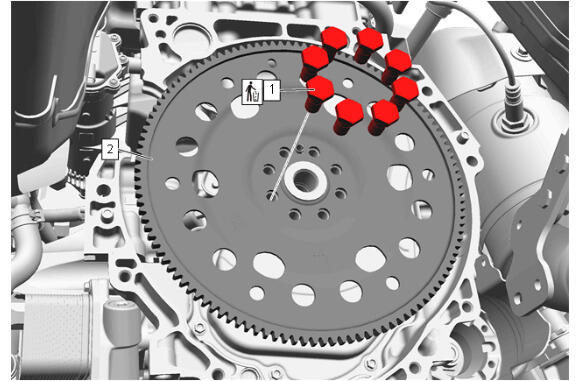

Automatic Transmission Flex Plate Bolt (1) - Remove and DISCARD [8x]
Automatic Transmission Flex Plate (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Crankshaft Position Sensor Reluctor Ring Caution .

Crankshaft Position Sensor Reluctor Ring (1) - Remove
Flywheel Locating Pin (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

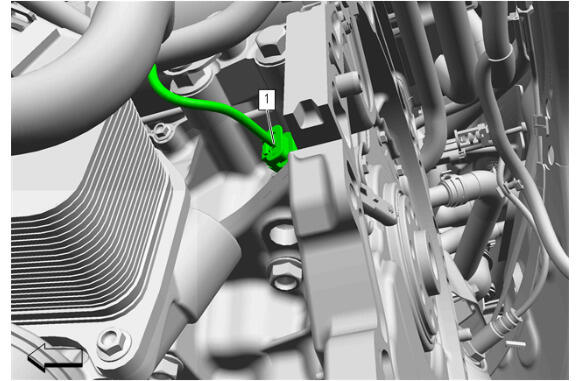

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

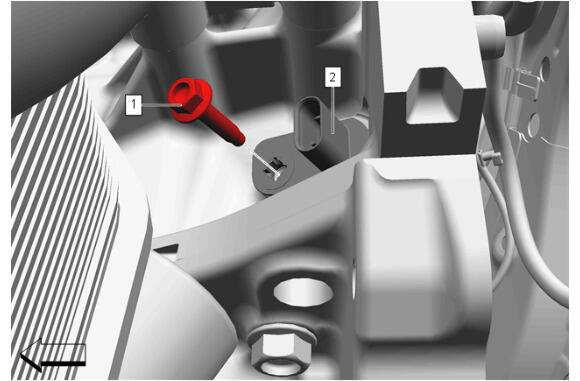

Crankshaft Position Sensor Bracket Bolt (1) - Remove
Crankshaft Position Sensor (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

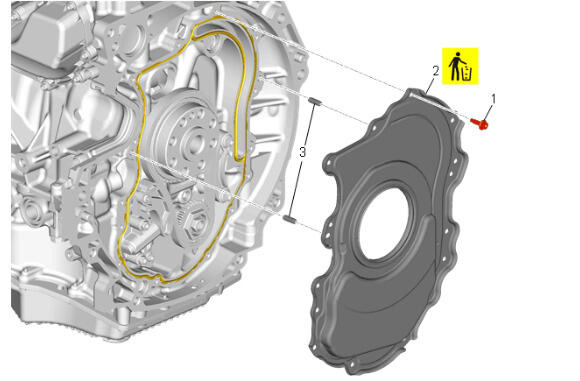

Crankshaft Rear Oil Seal Housing Bolt (1) - Remove [14x]
Crankshaft Rear Oil Seal Housing (2) - Remove and DISCARD
Crankshaft Rear Oil Seal Housing Locating Pin (3) - Remove [2x]
Clean out the crankshaft rear oil seal housing pin bores with low VOC brake clean and dry with shop air.
Courtesy of GENERAL MOTORS COMPANY

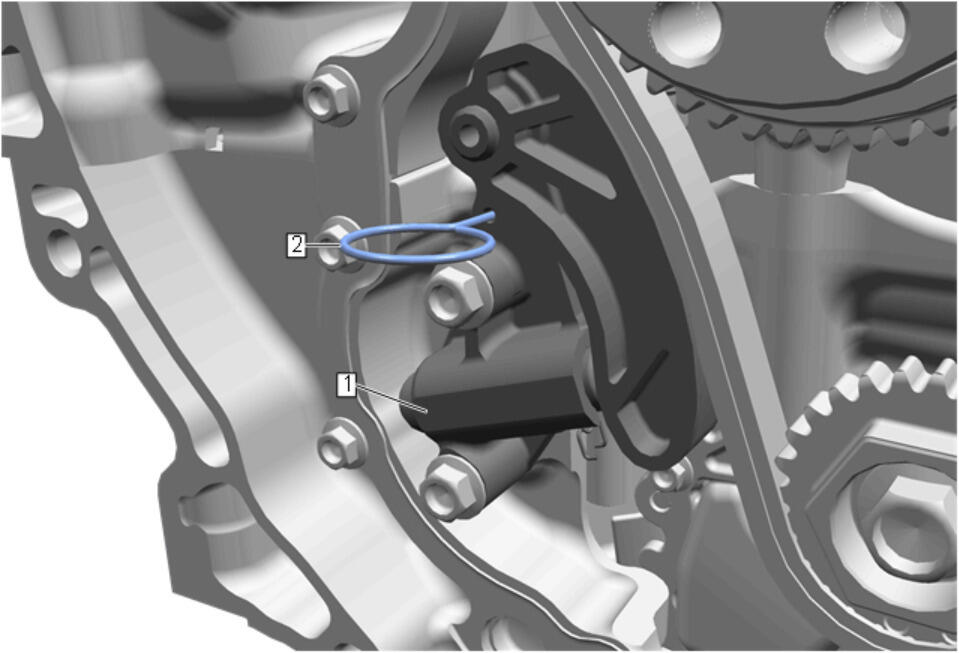

Compress the balancer chain tensioner (1).
EN-52593 Locking Pin Tool (2) - Install
Courtesy of GENERAL MOTORS COMPANY

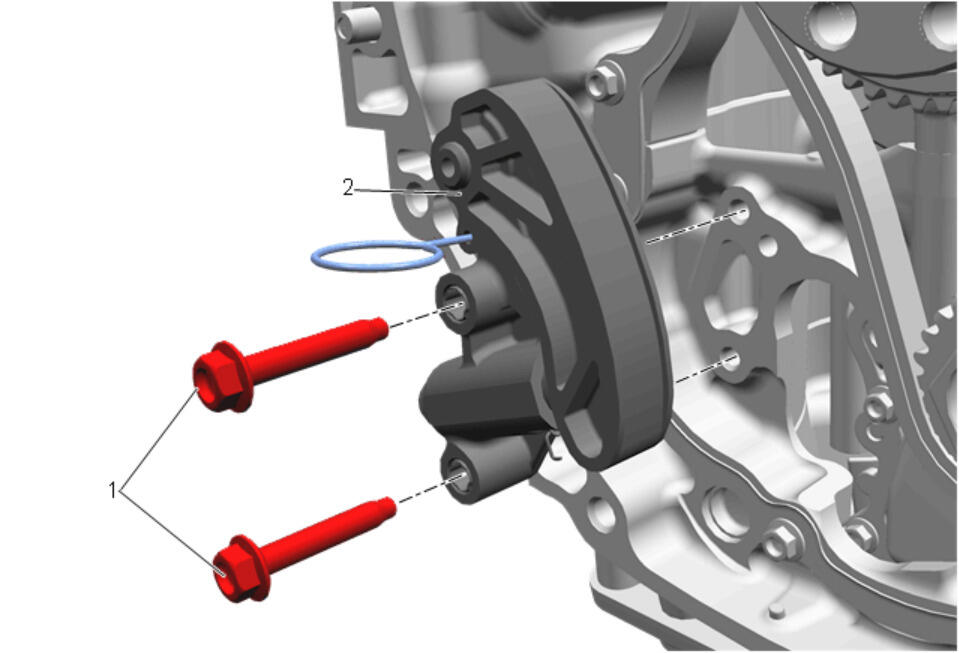

Balancer Chain Tensioner Bolt (1) - Remove [2x]
Balancer Chain Tensioner (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

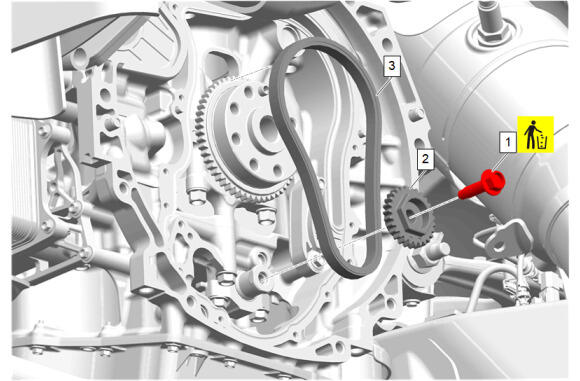

Balancer Shaft Sprocket Bolt (1) - Remove
Balancer Shaft Driven Sprocket (2) - Remove
Balancer Chain (3) - Remove
