Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Maneuver the rear brake front pipe into the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Brake Pipe Nut (1) - Install and tighten - Fastener Specifications

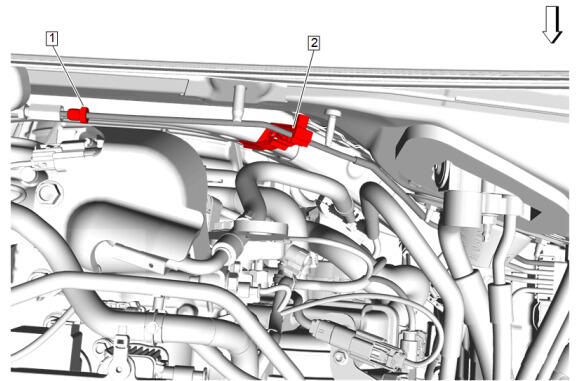

Secure the rear brake front pipe to the retainer (2).
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Bracket (3) - Install
Engine Wiring Harness Conduit Nut (2) - Install and tighten - Fastener Specifications
Engine Wiring Harness Conduit Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

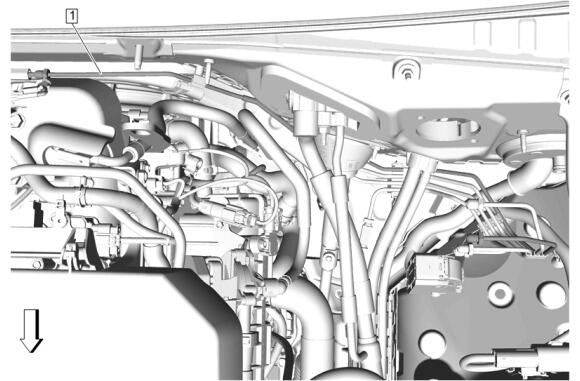

Engine Wiring Harness (2) - Reposition
Retainer (1) - Install [5x]
Courtesy of GENERAL MOTORS COMPANY

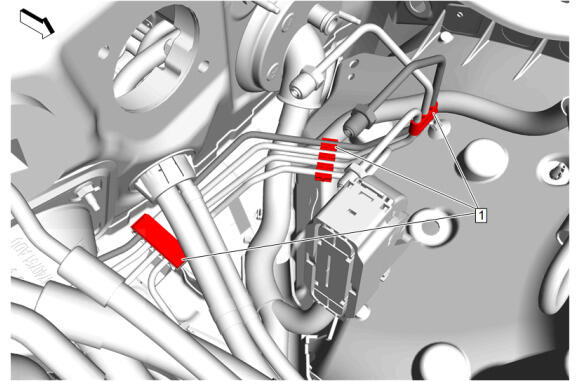

Secure the rear brake front pipe to the 3 retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install a NEW brake pedal retainer (1) to the brake master cylinder push rod.
Engage the brake pedal (2) to the brake pedal retainer (1) by pushing inwards.
Ensure the locking tabs on the brake pedal retainer are fully engaged in the brake pedal (2) and the retainer is attached securely to the brake master cylinder push rod.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the tabs into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install
Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).
Remove the caps from the 4 brake front pipe inlets.
Courtesy of GENERAL MOTORS COMPANY

Front Brake Pipe Nut (2) - Install and tighten [2x] - Fastener Specifications
Rear Brake Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Brake System Control Module - Connect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Brake Fluid Level Sensor - Connect
Courtesy of GENERAL MOTORS COMPANY

Front End Sheet Metal Diagonal Brace (2) - Install
Front End Sheet Metal Diagonal Brace Bolt (3) - Install and tighten [2x] - Fastener Specifications
Front End Sheet Metal Diagonal Brace Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the forward lamp wiring harness extension (3) into the plenum front panel.
Plenum Front Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Plenum Front Panel Nut (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the forward lamp wiring harness extension (3) into the plenum front panel.
Plenum Front Panel Nut (1) - Install and tighten [3x] - Fastener Specifications
Plenum Front Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Deflector Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Deflector Water Deflector Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Install the windshield wiper system module (2) in the vehicle.
Windshield Wiper System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the windshield wiper motor electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper System Module Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel (2) - Install
Install the air inlet grille panel (2) between both hood hinges.
Connect the windshield washer nozzle hose to the windshield washer pump hose.
Air Inlet Grille Panel Retainer (1) - Install [6x]
Courtesy of GENERAL MOTORS COMPANY

Install the front compartment side sight shields (2) to both sides.
Install the front compartment side sight shield retainers (1) to both sides.
Courtesy of GENERAL MOTORS COMPANY

Install the hood rear outer air inlet seals (2) to both sides.
Install the hood rear outer air inlet seal retainers (1) to both sides.
Courtesy of GENERAL MOTORS COMPANY

Install the air inlet grille panel extensions (1).
Remove the masking tape from the body around the top edges of the air inlet grille panel extensions (1).
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Courtesy of GENERAL MOTORS COMPANY
Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arms (3).
Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
Windshield Wiper Arm Finish Cap (1) - Install [2x]
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Bleed the brake system. Hydraulic Brake System Bleeding (JE5) , or Hydraulic Brake System Bleeding (J55)
Check for brake system leaks.
Courtesy of GENERAL MOTORS COMPANY

If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.
Lubricate the windshield with clean washer fluid.
Run the windshield wipers for two complete cycles then turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
