Installation Procedure
- Lubricate the brake master cylinder reservoir grommets with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers

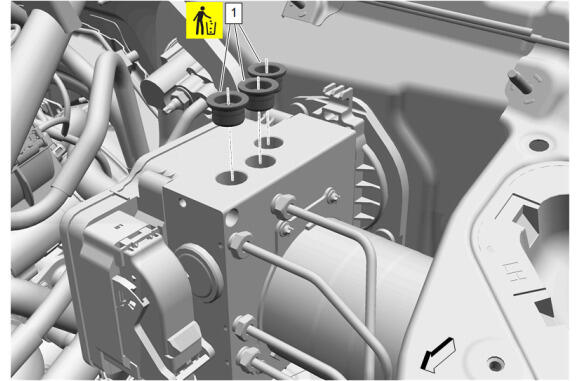

Brake Master Cylinder Reservoir Grommet (1) - Install NEW [3x]

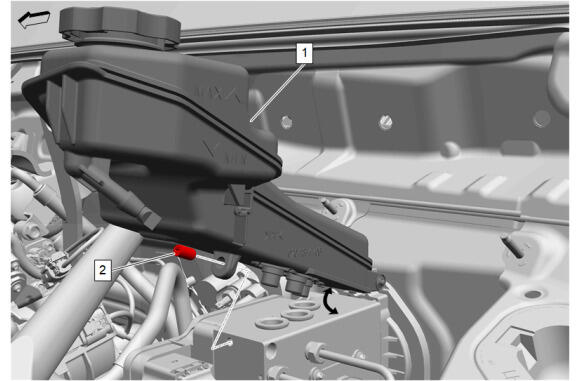

Secure the master cylinder reservoir (1) into the hold down clip (2) and lower the front of the brake master cylinder reservoir until it is in the fully installed position.
- Brake Master Cylinder Reservoir Bolt (3) - Install NEW and tighten - Fastener Specifications
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
Electrical Connector (1) @ Brake Fluid Level Sensor - Connect
Plenum Front Panel (1) - Install
Install the forward lamp wiring harness extension (3) into the plenum front panel.
- Plenum Front Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Plenum Front Panel Nut (2) - Install and tighten [3x] - Fastener Specifications
Install the forward lamp wiring harness extension (3) into the plenum front panel.
- Plenum Front Panel Nut (1) - Install and tighten [3x] - Fastener Specifications
- Plenum Front Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
Install the windshield wiper system module (2) in the vehicle.
- Windshield Wiper System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the windshield wiper motor electrical connector.
Windshield Wiper System Module Shield (1) - Install
Air Inlet Grille Panel (2) - Install
- Install the air inlet grille panel (2) between both hood hinges.
- Connect the windshield washer nozzle hose to the windshield washer pump hose.
- Air Inlet Grille Panel Retainer (1) - Install [6x]
Install the front compartment side sight shields (2) to both sides.
- Install the front compartment side sight shield retainers (1) to both sides.
Install the hood rear outer air inlet seals (2) to both sides.
- Install the hood rear outer air inlet seal retainers (1) to both sides.
Install the air inlet grille panel extensions (1).
- Remove the masking tape from the body around the top edges of the air inlet grille panel extensions (1).
- Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
- Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arms (3).
- Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
- Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
- Windshield Wiper Arm Finish Cap (1) - Install [2x]
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.
- Lubricate the windshield with clean washer fluid.
- Run the windshield wipers for two complete cycles then turn off the windshield wipers.
- Ensure the windshield wipers are in the full park position.
- Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
Refer to Fastener Caution .
