Fastener Specifications

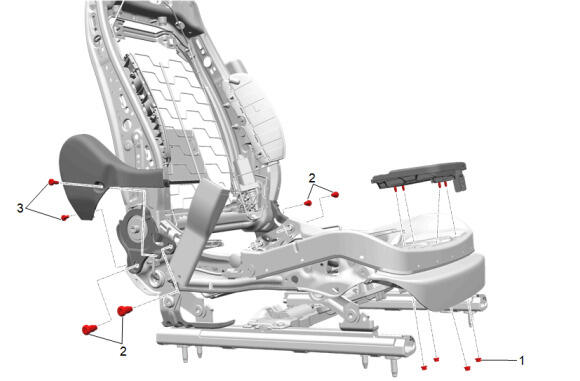

Front Seat - Inboard
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Cushion Front Extension Frame Nut [4x] | - | - | 4.7 N.m (42 lb in) | Front Seat Cushion Front Extension Frame Replacement |
| 2 | Front Seat Frame Bolt [4x] | - | - | 45 N.m (33 lb ft) | Front Seat Back Frame Replacement |
| 3 | Front Seat Inner Recliner Finish Cover Bolt [2x] | - | - | 4 N.m (35 lb in) | Front Seat Inner Recliner Finish Cover Replacement |

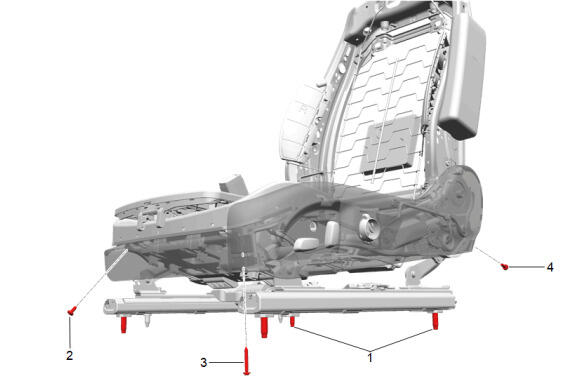

Front Seat - Outboard
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Bolt [4x] | - | - | 45 N.m (33 lb ft) | Front Seat Removal and Installation |
| 2 | Front Seat Cushion Front Finish Cover Bolt | - | - | 4 N.m (35 lb in) | Front Seat Cushion Front Finish Cover Replacement |
| 3 | Front Seat Cushion Outer Finish Cover Bolt-Front | - | - | 4 N.m (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement |
| 4 | Front Seat Cushion Outer Finish Cover Bolt-Rear | - | - | 4 N.m (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement |

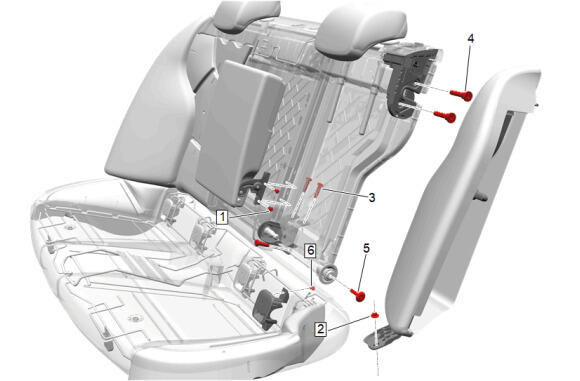

Rear Seat
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Armrest Bolt [2x] | - | - | 6 N.m (53 lb in) | Rear Seat Armrest Replacement |
| 2 | Rear Seat Back Bolster Nut | - | - | 9 N.m (80 lb in) | Rear Seat Back Bolster Replacement |
| 3 | Rear Seat Back Cushion Hinge Bolt [3x] | - | - | 45 N.m (33 lb ft) | Rear Seat Back Hinge Replacement |
| 4 | Rear Seat Back Cushion Latch Bolt [2x] | - | - | 45 N.m (33 lb ft) | Rear Seat Back Cushion Latch Replacement |
| 5 | Rear Seat Back Outer Pivot Bolt | - | - | 23 N.m (17 lb ft) | Rear Seat Back Cover and Pad Replacement (60 Percent Seat) , or Rear Seat Back Cover and Pad Replacement (40 Percent Seat) |
| 6 | Rear Seat Hinge Bracket Bolt | - | - | 2 N.m (18 lb in) | Child Seat Bracket Trim Cover Replacement |
