Removal Procedure

Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

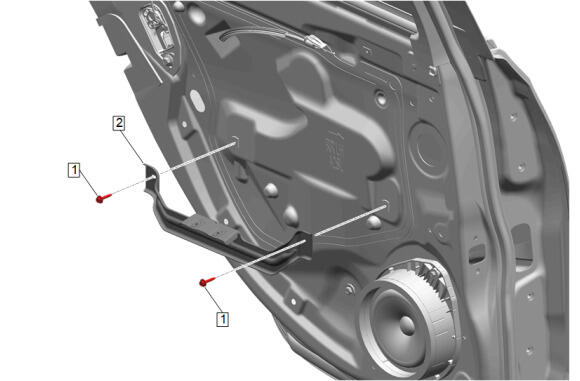

Rear Side Door Trim Bolt (1) - Remove [2x]
Rear Side Door Pull Handle Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

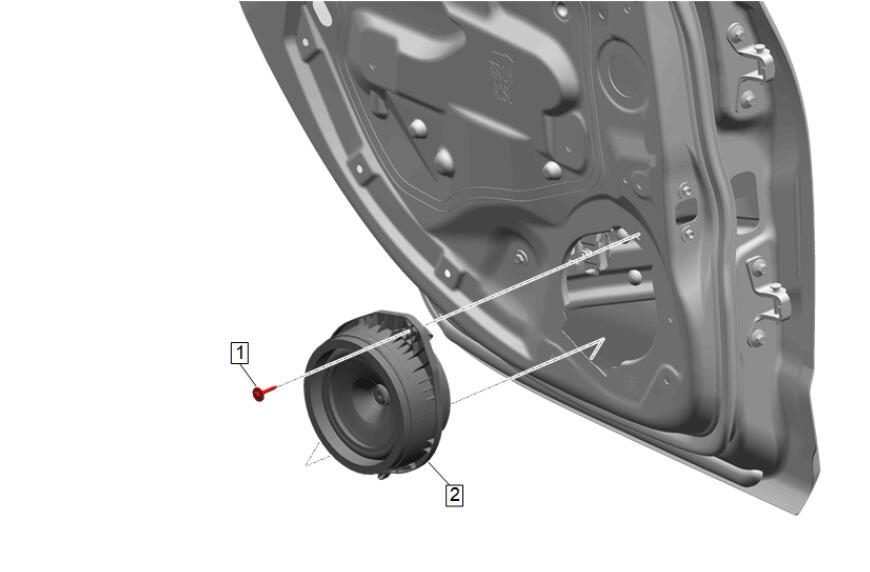

Radio Rear Side Door Speaker Bolt (1) - Remove
Disconnect the electrical connector.
Radio Rear Side Door Speaker (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

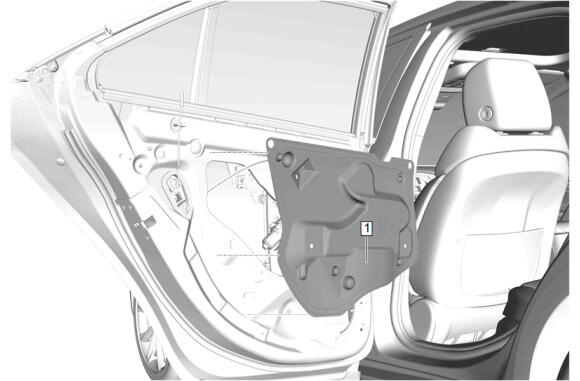

Route the rear side door inside handle cable through hole in deflector (1).
Rear Side Door Water Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

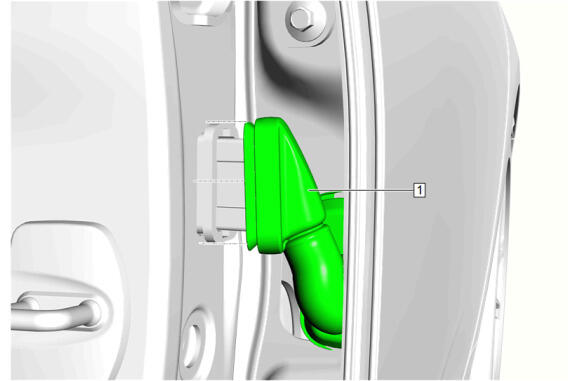

Remove the rear side door wiring harness cover (1) from the body wire harness connector.
Courtesy of GENERAL MOTORS COMPANY

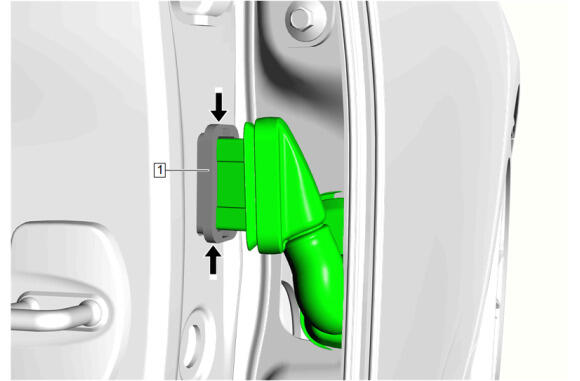

Push the tabs of the body wire harness connector (1) to release from the hinge pillar.
Courtesy of GENERAL MOTORS COMPANY

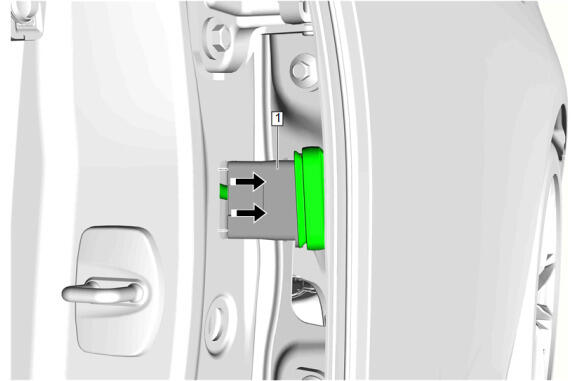

Pull the body wire harness connector (1) out of the hinge pillar to disconnect the rear side door wiring harness.
Courtesy of GENERAL MOTORS COMPANY

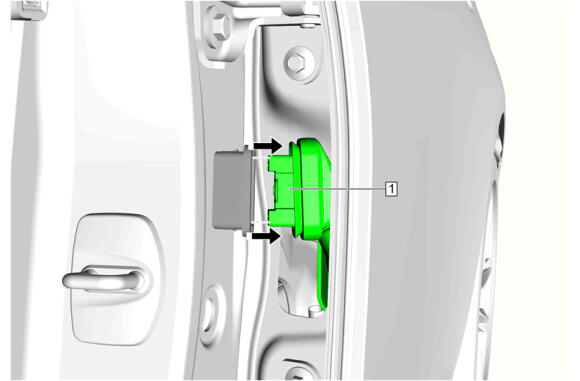

Disconnect the body wire harness connector from the rear side door wiring harness (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Typical wiring harness shown, individual harness may be different due to option content.

Rear Side Door Wiring Harness (1) - Remove
