Removal Procedure

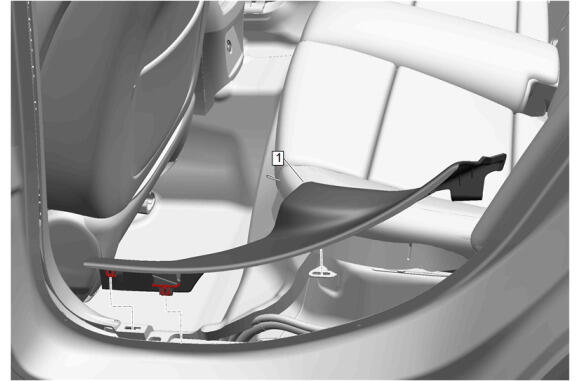

  1. GM5480292Courtesy of GENERAL MOTORS COMPANY

    Use the appropriate plastic trim tool to reposition the rear side door sill garnish molding (1).

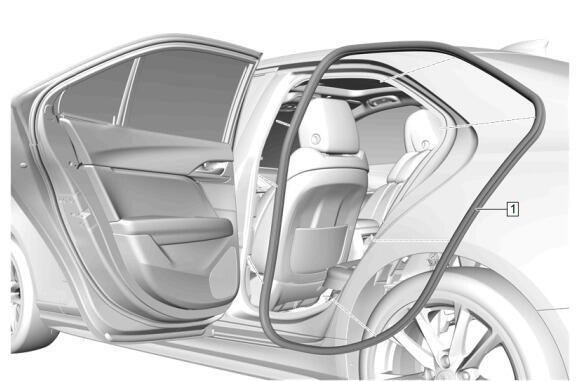

  2. GM5485245Courtesy of GENERAL MOTORS COMPANY

    Pull up and out to remove the rear side door weatherstrip from the body side pinch weld flange.

  3. Rear Side Door Weatherstrip - Body Side (1) - Remove
