Removal Procedure

  1. Mark the location of the upper hinge before removing the bolts with a grease pencil.

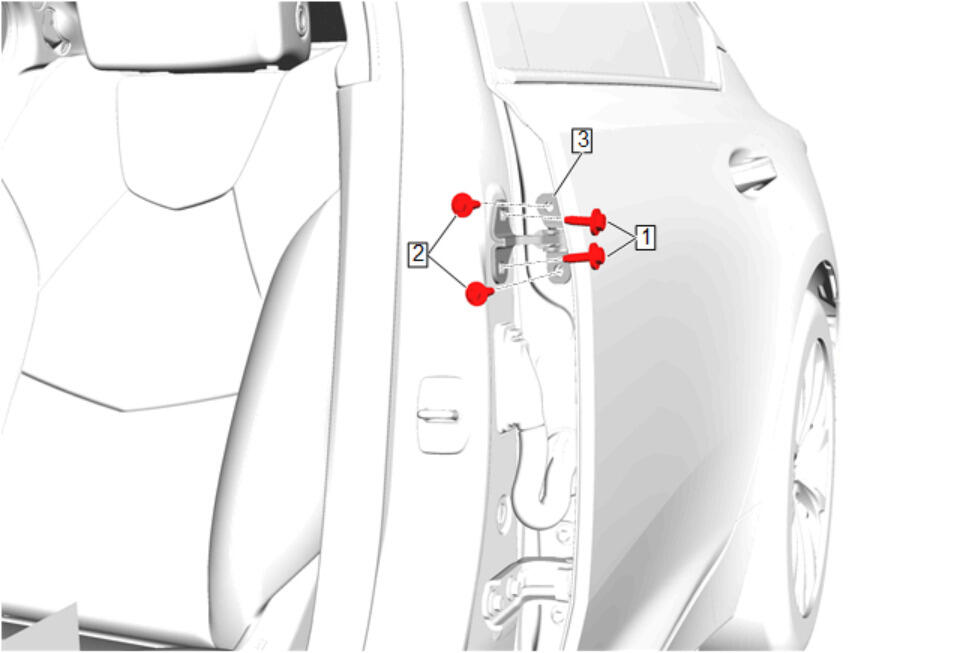

  2. GM5319962Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the door in the closed position and replace only one hinge at a time.

    Rear Side Door Hinge Bolt - Body Side (1) - Remove [2x]

  3. Rear Side Door Hinge Bolt - Door Side (2) - Remove [2x]
  4. Rear Side Door Upper Hinge (3) - Remove
  5. Mark the location of the lower hinge before removing the bolts with a grease pencil.

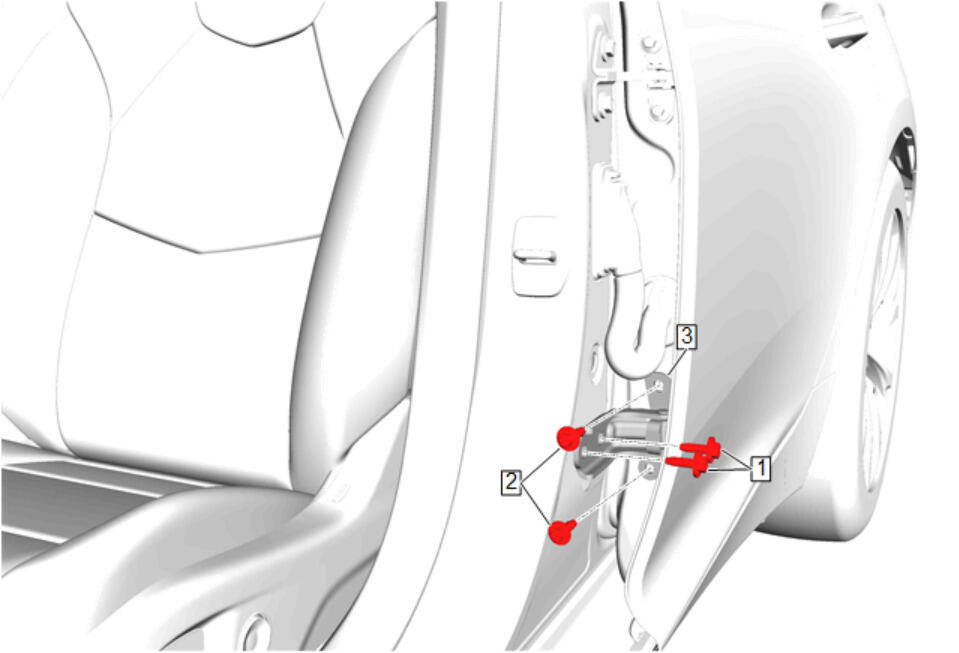

  6. GM5319959Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Hinge Bolt - Body Side (1) - Remove [2x]

  7. Rear Side Door Hinge Bolt - Door Side (2) - Remove [2x]
  8. Rear Side Door Lower Hinge (3) - Remove
