Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.

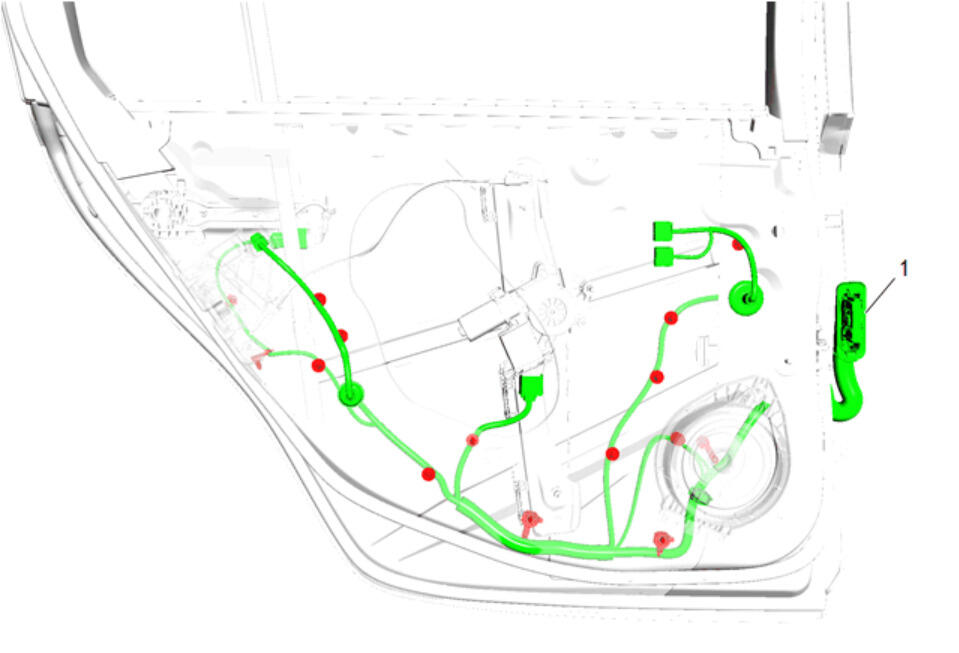

  2. GM5319502Courtesy of GENERAL MOTORS COMPANY

    Disconnect the rear side door wiring harness (1) electrical connector.

  3. GM5539262Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

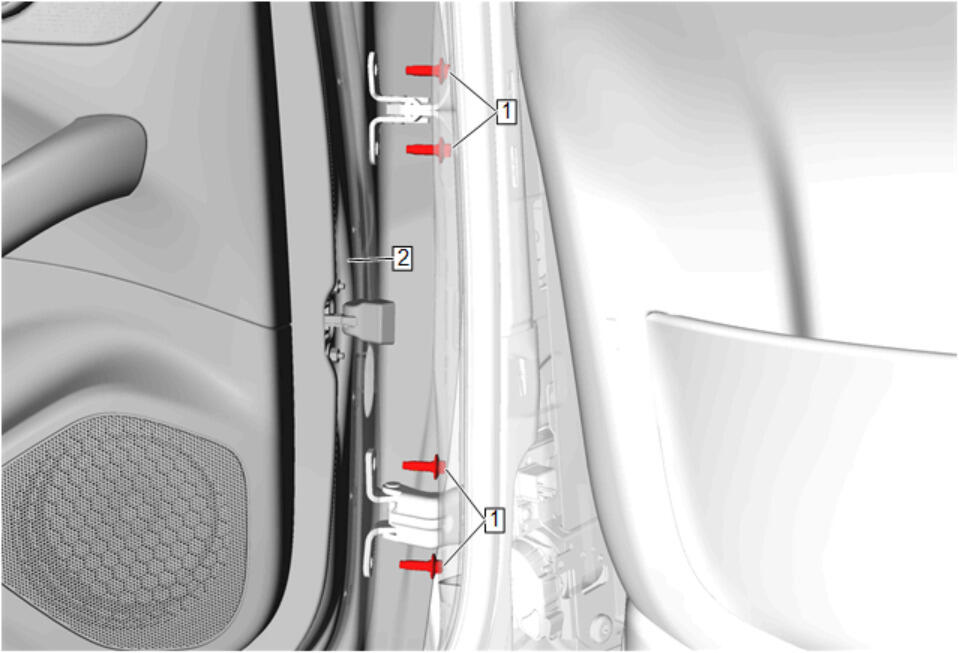

  4. GM5323063Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the rear side door hinges with a grease pencil to aid in alignment during installation.

  5. Support the door before removing the hinge fastener.
  6. Rear Side Door Hinge Bolt - Door Side (1) - Remove [4x]
  7. With the aid of an assistant, remove the rear side door (2).
  8. Transfer components as necessary.
