Removal Procedure

  1. Open the rear door.

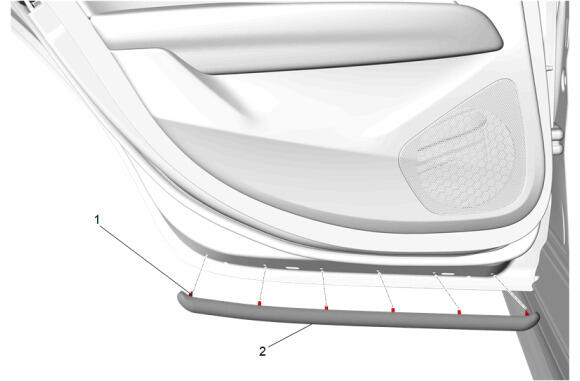

  2. GM5493582Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Lower Auxiliary Weatherstrip Retainers (1) - Release [6x]

  3. Rear Side Door Lower Auxiliary Weatherstrip (2) - Remove
