Removal Procedure

  1. Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation

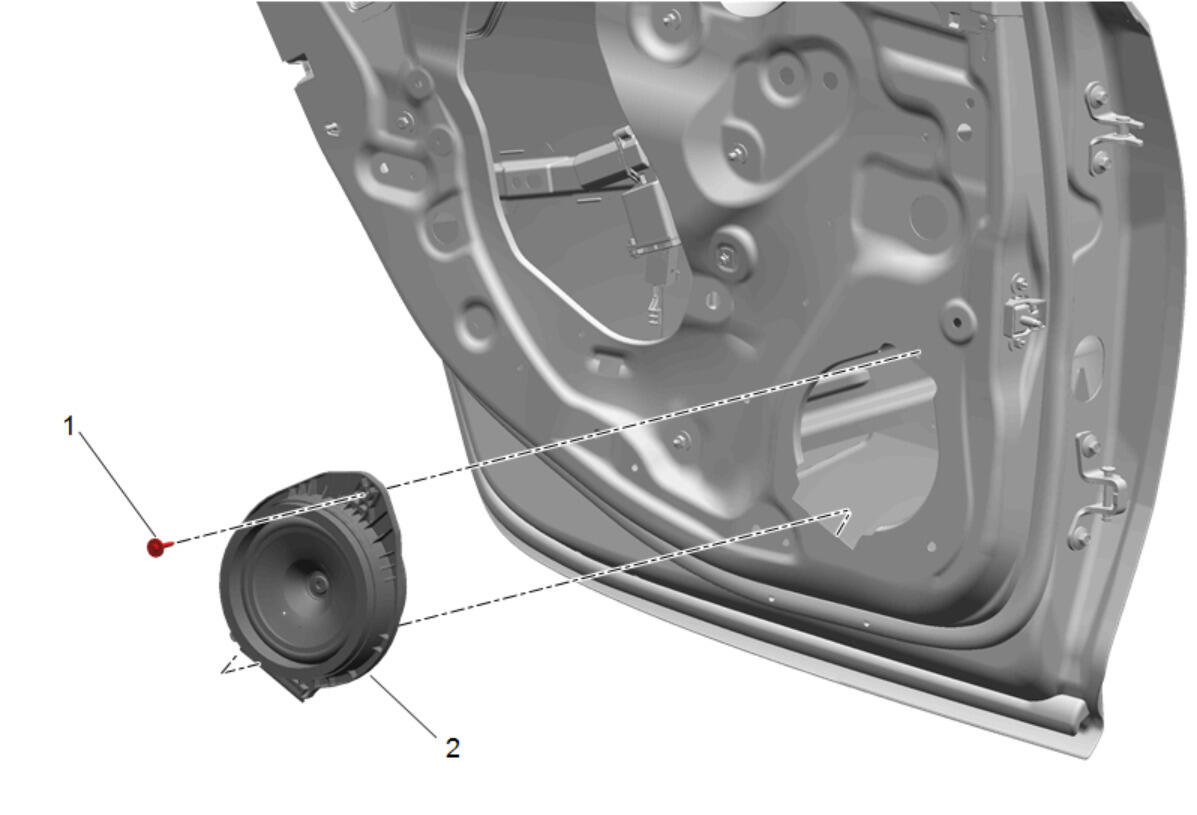

  2. GM5313492Courtesy of GENERAL MOTORS COMPANY

    Radio Rear Side Door Speaker Bolt (1) - Remove

  3. Radio Rear Side Door Speaker (2) - Remove

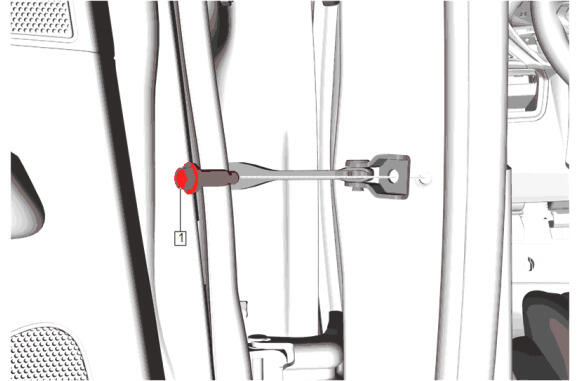

  4. GM5539262Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Body Side Bolt (1) - Remove

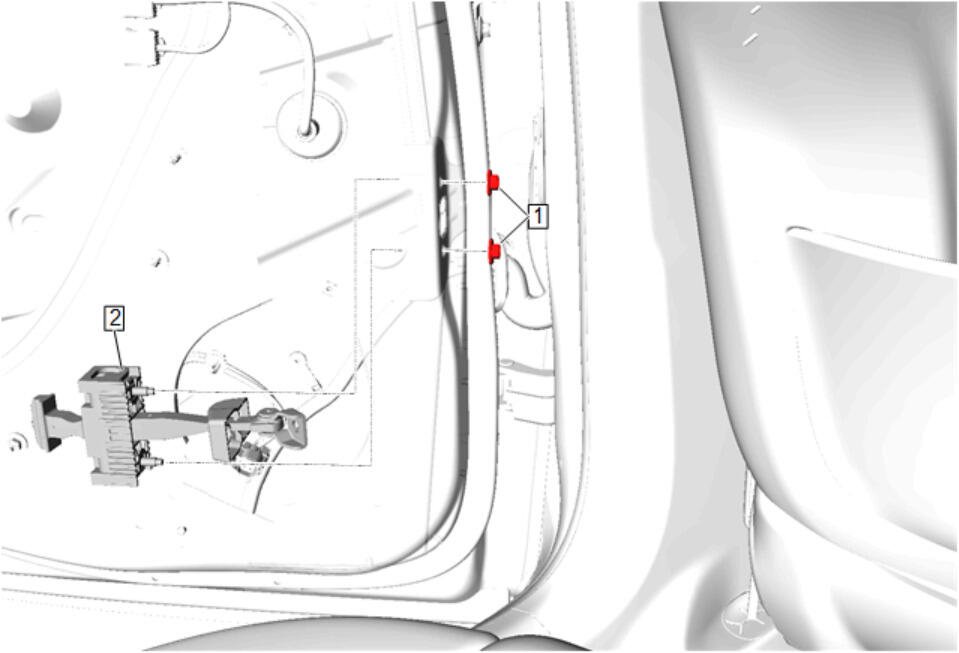

  5. GM5323036Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Door Side Nut (1) - Remove [2x]

  6. Remove the rear side door check link (2) through the radio rear side door speaker hole.
  7. Transfer components as necessary.
