Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use caution during the steps to avoid marring or scratching the class "A" paint finish.

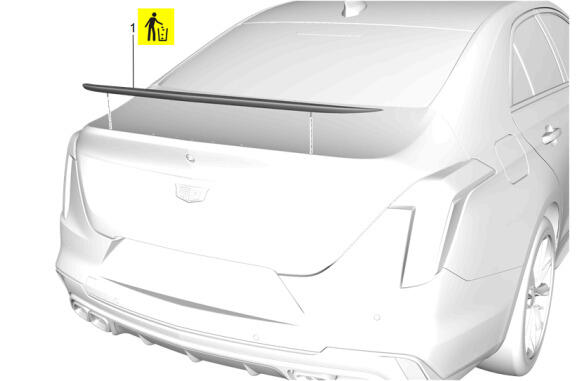

Apply two layers of masking tape around the rear end spoiler (1) to prevent paint damage.
Warm the rear end spoiler (1) using a hair dryer or heat gun not exceeding 79°C (175°F). Care should be given to protect the interfacing surfaces.
Using a suitable plastic trim tool, gently pry upwards to release the rear end spoiler (1).
Rear End Spoiler (1) - Remove and DISCARD
Remove the masking tape.
Remove any remaining adhesive residue.
1. Heavy foam/adhesive residue remaining on the painted surface can be removed using 3M's Scotch-Brite™ Molding Adhesive and Stripe Removal Disc (4 inch) or (6 inch). This disc will not damage the class "A" paint finish.
2. Light adhesive residue remaining on the painted surface can be removed using 3M's General Purpose Adhesive Cleaner, or isopropyl alcohol, and a soft clean cloth.
Courtesy of GENERAL MOTORS COMPANY

NOTE:

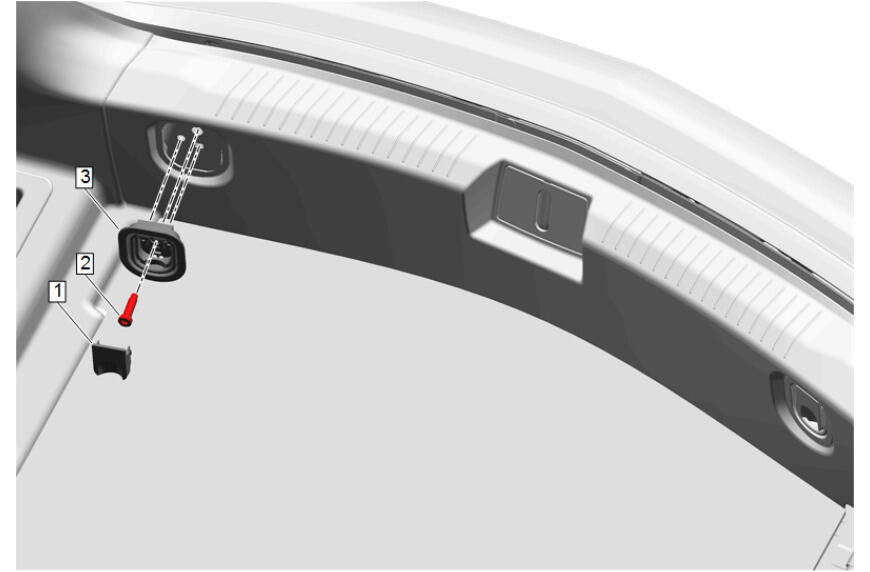

Use a small flat-bladed tool to disengage integral tabs on cargo tie down loop bolt cap

Cargo Tie Down Loop Bolt Cap (1) - Remove [2x]
Cargo Tie Down Loop Bolt (2) - Remove [2x]
Cargo Tie Down Loop (3) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

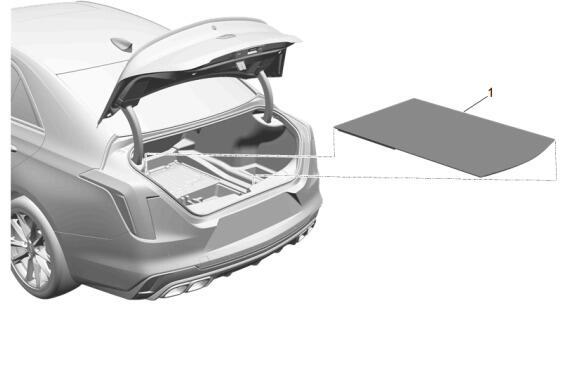

Rear Compartment Floor Panel Trim (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

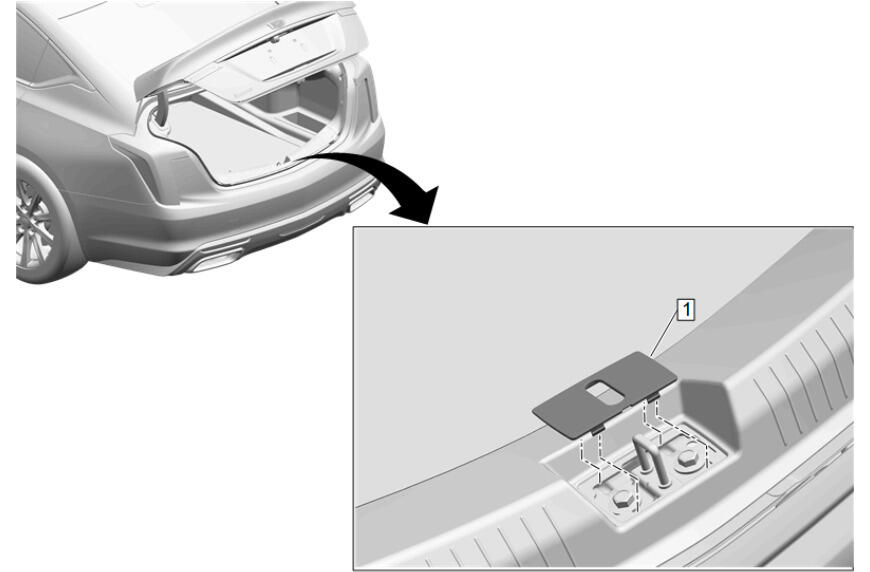

Use a small flat-bladed tool to disengage integral tabs on rear end trim finish panel opening cover (1).
Rear End Trim Finish Panel Opening Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

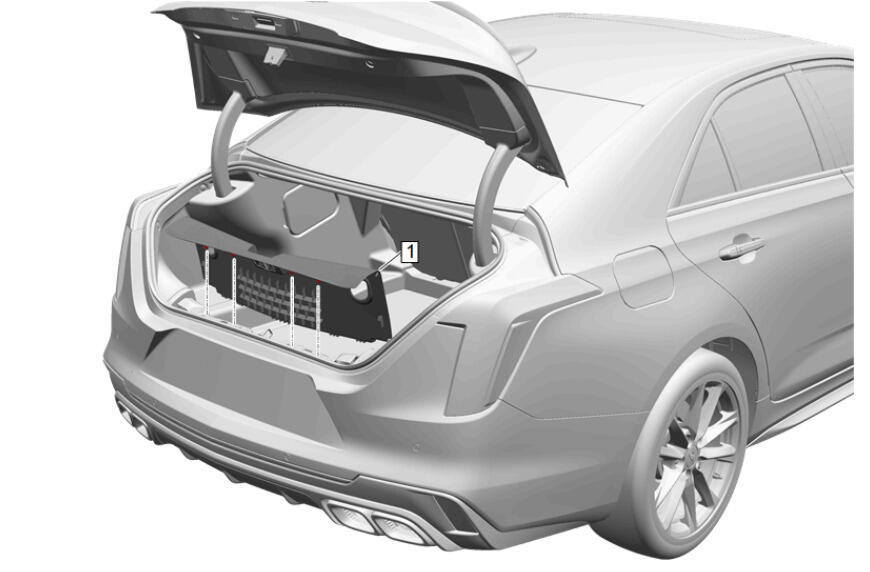

With a flat bladed plastic trim tool, disengage the integral clips.
Rear End Trim Finish Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.

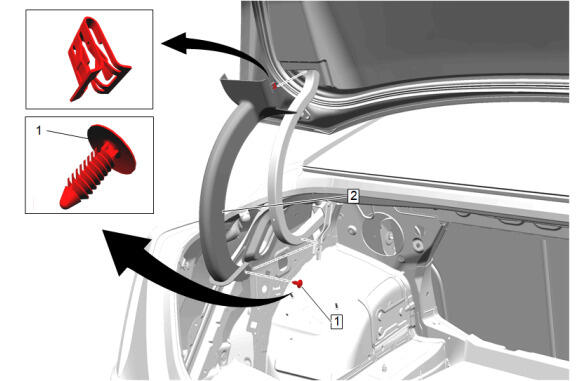

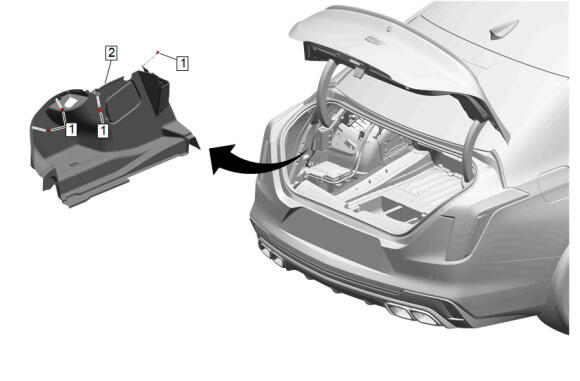

Rear Compartment Side Trim Insulator Retainer (1) - Remove [4x]
Reposition the left and right side rear compartment trim panels (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Compartment Lid Hinge Cover Retainer (1) - Remove
Using the appropriate tool, release the integral retainer and remove the left and right rear compartment lid hinge cover (2).
Courtesy of GENERAL MOTORS COMPANY

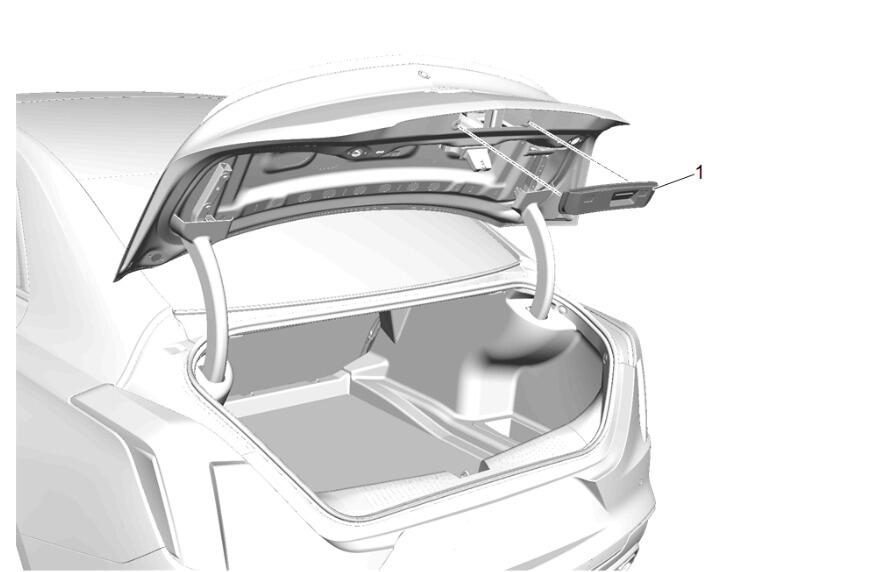

Use a small flat-bladed tool to pull and release the rear compartment lid latch cover (1).
Rear Compartment Lid Latch Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

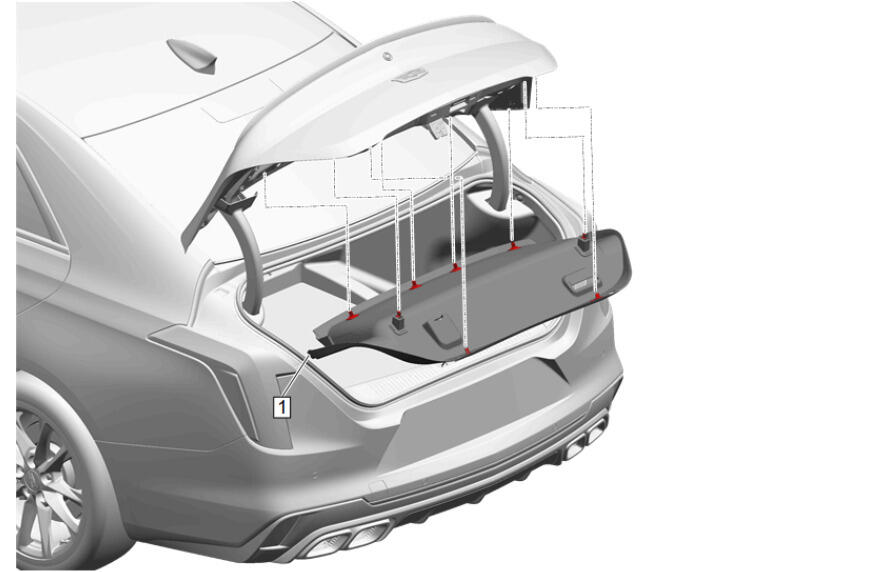

Use a flat-bladed plastic tool to disengage the push-in retainers from the sheet metal.
Rear Compartment Lid Inner Panel Trim (1) - Remove
Disconnect all electrical connectors and reposition the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

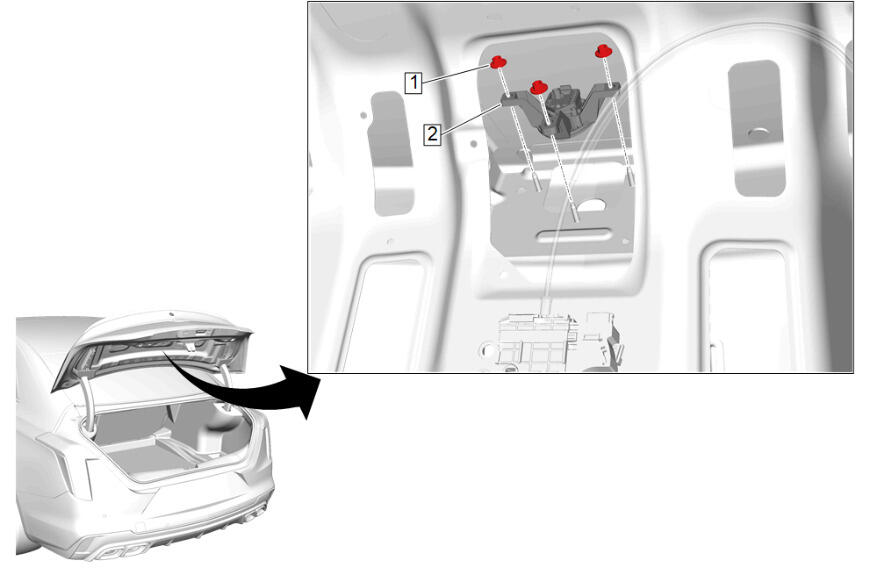

Rearview Camera Nut (1) - Remove [3x]

NOTE:

Observe the mounting and location of the rearview driver information camera to ensure proper reinstallation.

Rearview Driver Information Camera (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear License Plate Lamp Module Lamp Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.

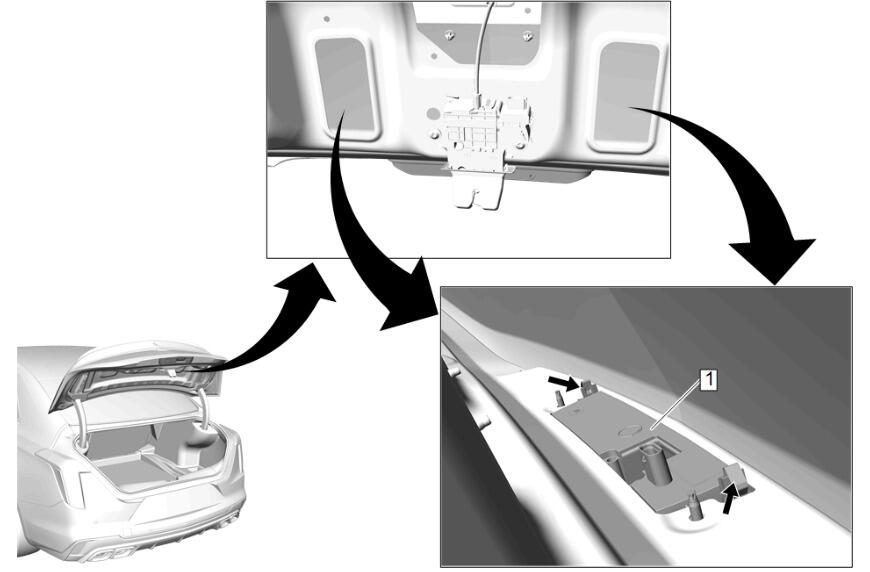

Release the retaining tabs on the rear license plate lamp module (1).
Courtesy of GENERAL MOTORS COMPANY

Rear License Plate Lamp Module (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

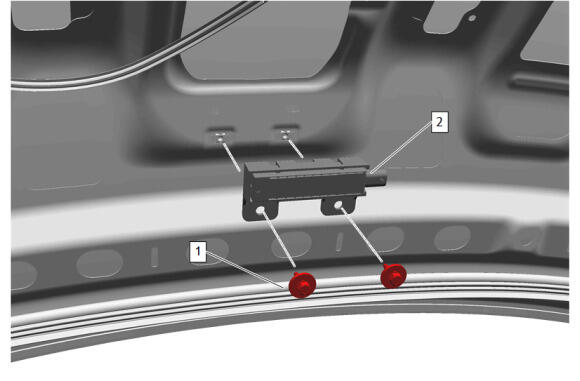

Low Frequency Rear Compartment Antenna Bracket Bolt (1) - Remove
Low Frequency Rear Compartment Antenna Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

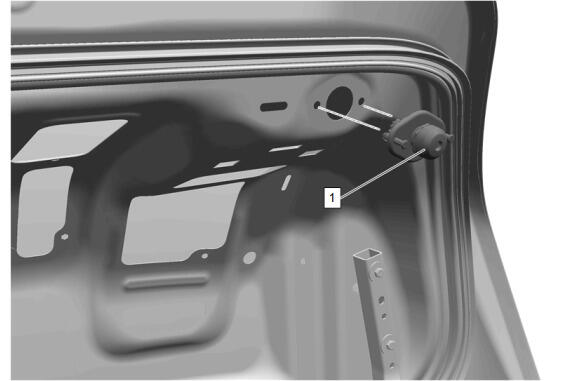

Using the appropriate tool, release retainer on the rear compartment lid handle (1).
Courtesy of GENERAL MOTORS COMPANY

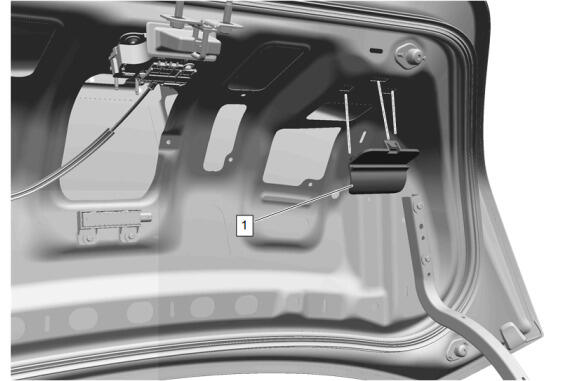

Remove the 4 rear compartment lid bumpers (1) by releasing the 2 retainers on each side.
Courtesy of GENERAL MOTORS COMPANY

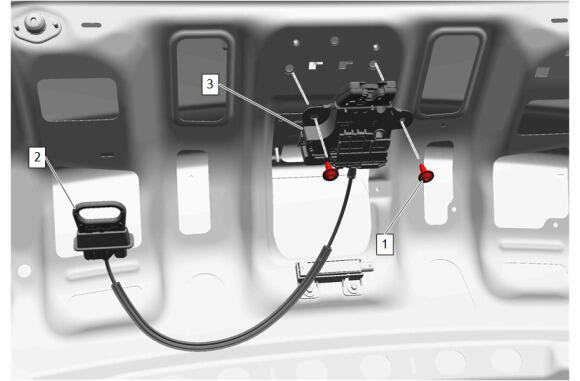

Rear Compartment Lid Latch Bolt (1) - Remove [2x]
Release the auxiliary rear compartment latch release handle (1).
Remove the rear compartment lid latch and handle (3).
Courtesy of GENERAL MOTORS COMPANY

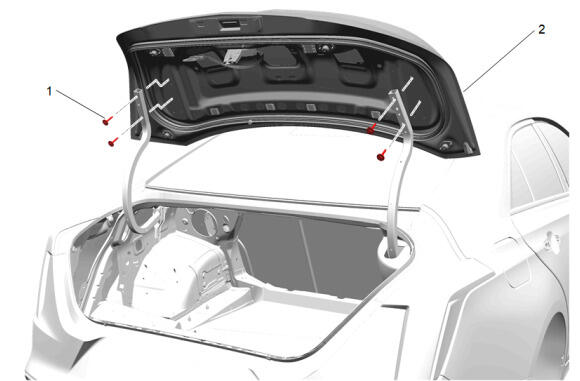

Rear Compartment Lid Hinge Bolt (1) - Remove [4x]
With the aid of an assistant, remove the rear compartment lid (2).
