Removal Procedure

    WARNING:

    Refer to SIR Warning .

  1. WARNING:

    Refer to SIR Inflator Module Handling and Storage Warning .

  3. Disable the SIR system. SIR Disabling and Enabling
  4. GM5459270Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Right side shown, left side similar.
    • Use a small flat-bladed tool to disengage integral tabs on cargo tie down loop bolt cap

    Cargo Tie Down Loop Bolt Cap (1) - Remove [2x]

  5. Cargo Tie Down Loop Bolt (2) - Remove [2x]
  6. Cargo Tie Down Loop (3) - Remove [2x]
  7. GM5471799Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (1) - Remove

  8. GM5459293Courtesy of GENERAL MOTORS COMPANY

    Use a small flat-bladed tool to disengage integral tabs on rear end trim finish panel opening cover (1).

  9. Rear End Trim Finish Panel Opening Cover (1) - Remove
  10. GM5471885Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a flat-bladed plastic tool to remove the push-in retainers.

    Rear Compartment Floor Stowage Compartment Retainer (1) - Remove [3x]

  11. Rear Compartment Floor Panel Trim - Remove
  12. GM5465255Courtesy of GENERAL MOTORS COMPANY

    With a flat bladed plastic trim tool, disengage the integral clips.

  13. Rear End Trim Finish Panel (1) - Remove
  14. GM5483561Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.

    Rear Compartment Side Trim Insulator Retainer (1) - Remove [4x]

  15. Rear Compartment Side Trim-Left Side (2) - Reposition
  16. GM5479722Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Hinge Cover Retainer (1) - Remove

  17. Using the appropriate tool, release the integral retainer and remove the rear compartment lid hinge cover (2).
  18. GM5470126Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.

    Rear Compartment Side Trim Insulator Retainer (1) - Remove [4x]

  19. Rear Compartment Side Trim-Right Side (2) - Reposition
  20. GM5479723Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Hinge Cover Retainer (1) - Remove

  21. Using the appropriate tool, release the integral retainer and remove the rear compartment lid hinge cover (2).
  22. GM5459292Courtesy of GENERAL MOTORS COMPANY

    Use a small flat-bladed tool to pull and release the rear compartment lid latch cover (1).

  23. Rear Compartment Lid Latch Cover (1) - Remove
  24. GM5468116Courtesy of GENERAL MOTORS COMPANY

    Use a flat-bladed plastic tool to disengage the push-in retainers from the sheet metal.

  25. Rear Compartment Lid Inner Panel Trim (1) - Remove
  26. GM5500353Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Rear Compartment Lid Hold-Open Device Warning .

    Rear Compartment Lid Hinge Bolt (1) - Remove [2x]

  27. GM5479938Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, remove the rear compartment lid hinge torque rod (1) on the left side.

  28. GM5479939Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, remove the rear compartment lid hinge torque rod (1) on the right side.

  29. GM5324687Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion (1) - Remove - Rear Seat Cushion Removal and Installation

  30. GM5404968Courtesy of GENERAL MOTORS COMPANY
  31. Fold the rear seat back to the downward position.
  32. Access the rear seat back bolster retainer lock (1) through a slot in the upper portion of the bolster.
  33. Slide the rear seat back bolster retainer lock (1) toward the front of the vehicle.
  34. GM5324688Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Bolster Nut (1) - Remove

  35. Squeeze the rear seat back bolster retainer to release it.
  36. Rear Seat Back Bolster (2) - Remove
  37. GM5474407Courtesy of GENERAL MOTORS COMPANY

    Fold the rear seat back to the downward position.

  38. Use a flat bladed plastic trim tool to remove the quarter window trim finish panel bolt cap (1) on both sides.
  39. Quarter Window Trim Finish Panel Bolt (2) - Remove
  40. Disengage the retainers, starting at the front and working rearward.
    41. NOTE:

    The Quarter Upper Trim Panel does not need to be fully removed from the vehicle.

  41. Quarter Upper Trim Panel (3) - Remove [2x]
  42. GM5482696Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a flat-bladed plastic trim tool to aid in removal of the rear window panel retainers (1) from the rear window panel trim (2).

    Rear Window Panel Trim Retainer (1) - Remove [3x]

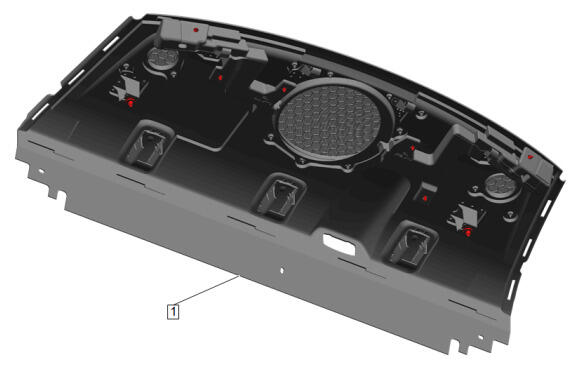

  43. GM5482736Courtesy of GENERAL MOTORS COMPANY
  44. Rear Window Panel Trim (1) - Remove
    1. Using a suitable tool, depress the button on the mini buckle to release the rear center seat belt.
    2. Release the rear center seat belt opening bezel from the rear center seat belt retractor.
    3. Lift up on the rear window panel trim (1) to release the retainers under the forward portion of the panel trim.
    4. Route the center seat belt webbing, buckle, and bezel through the trim (1).
    5. With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
    6. When replacing the rear window panel trim (1), transfer all necessary components.
  45. GM5500359Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Removing 1 of the 2 bolts will prevent the rear compartment hinge from dropping into the rear compartment and causing damage.

    Remove 1 of the 2 rear compartment lid hinge bolts (1).

  46. GM5500349Courtesy of GENERAL MOTORS COMPANY

    Remove the final hinge bolt (1) while having an assistant hold the rear compartment lid hinge (2).
