Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the hood (2).

CAUTION:

Refer to Fastener Caution .

Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
Adjust if necessary. - Hood Adjustment
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the two lower integral tabs are secure to the hood.

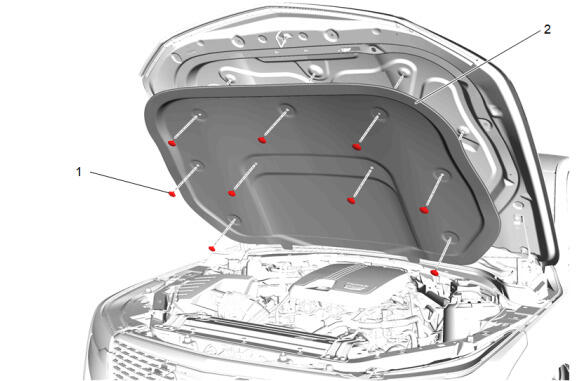

Hood Insulator (2) - Install
Hood Insulator Retainer (1) - Install [9x]
Courtesy of GENERAL MOTORS COMPANY

Hood Front Edge Weatherstrip (1) - Install
