Installation Procedure

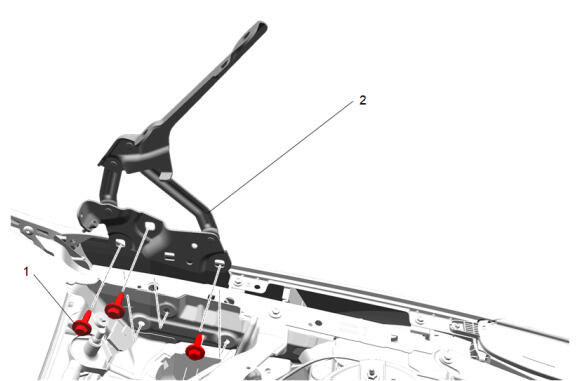

  1. GM5478553Courtesy of GENERAL MOTORS COMPANY

    Hood Hinge (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Hood Hinge Bolt (1) - Install and tighten [3x] - Fastener Specifications
  3. GM5478556Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the hood (2).

  4. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
  5. Adjust if necessary. - Hood Adjustment
  6. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  7. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  8. Air Inlet Grille Panel Retainer (1) - Install [6x]
  9. GM5421990Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield (2) - Install

  10. Front Compartment Side Sight Shield Retainer (1) - Install [2x]
  11. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal (2) - Install [2x]

    1. Hood Rear Outer Air Inlet Seal Retainer (1) - Install [2x]
    2. Hood Rear Outer Air Inlet Seal (2) - Install
  12. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Install [2x]

    1. Install the air inlet grille panel extension (1).
    2. Remove the masking tape from the top edge of the service part.
    3. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  13. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Install [2x]

    1. Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
    2. Position the windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
    3. Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
    4. Windshield Wiper Arm Finish Cap (1) - Install
  14. GM5416557Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

    1. Lubricate the windshield with clean washer fluid.
    2. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
    3. Ensure the windshield wipers are in the full park position.
    4. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
