Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The fuel tank filler pipe housing and fuel tank filler pipe must be loose to rotate housing to install on vehicle.

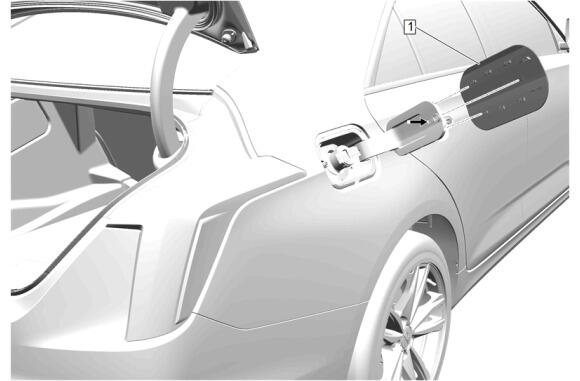

Rotate the fuel tank filler pipe housing (1) and the fuel tank filler pipe to the body side outer panel.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When replacing the fuel tank filler housing with a new housing, a new label is required to be added to the new fuel filler housing.

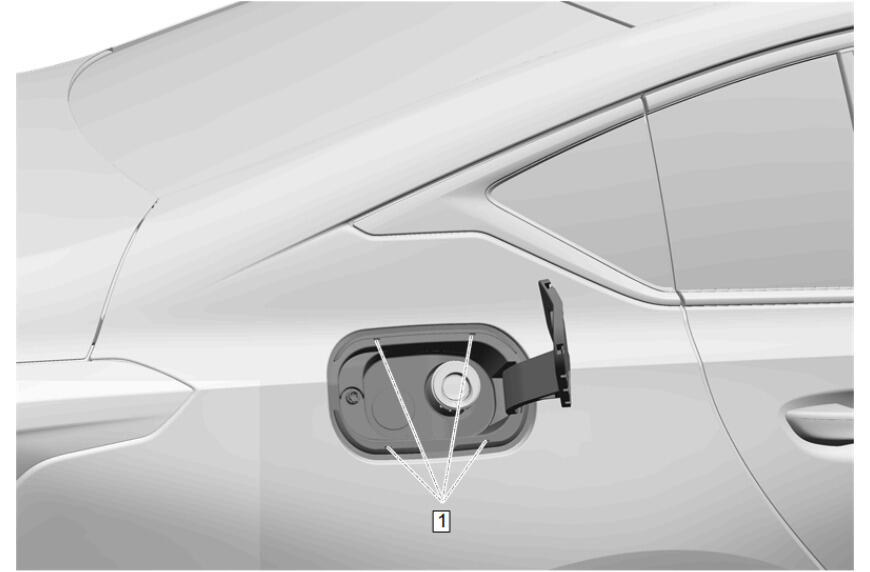

Press the fuel tank filler pipe housing (1) on the body side outer panel until fully seated.
Courtesy of GENERAL MOTORS COMPANY

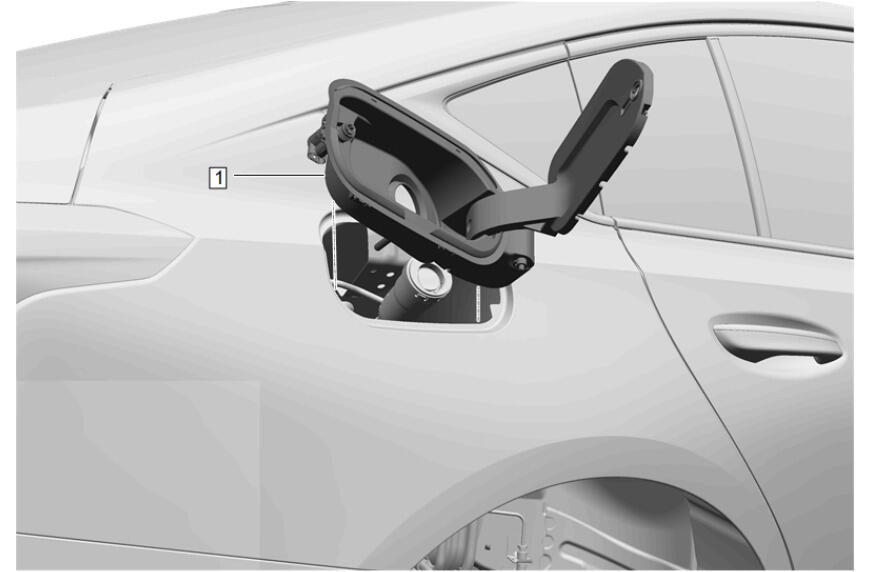

Fuel Tank Filler Door (1) - Install
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

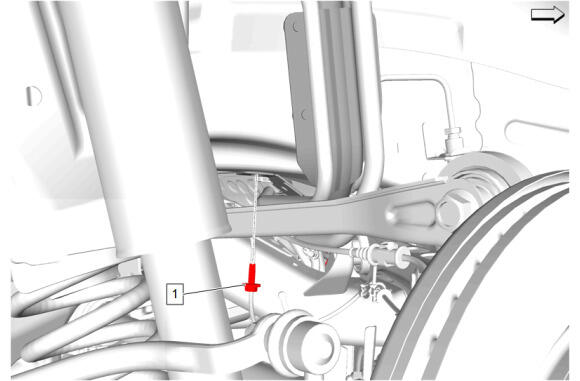

Fuel Tank Filler Pipe Ground Bolt (1) - Install - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

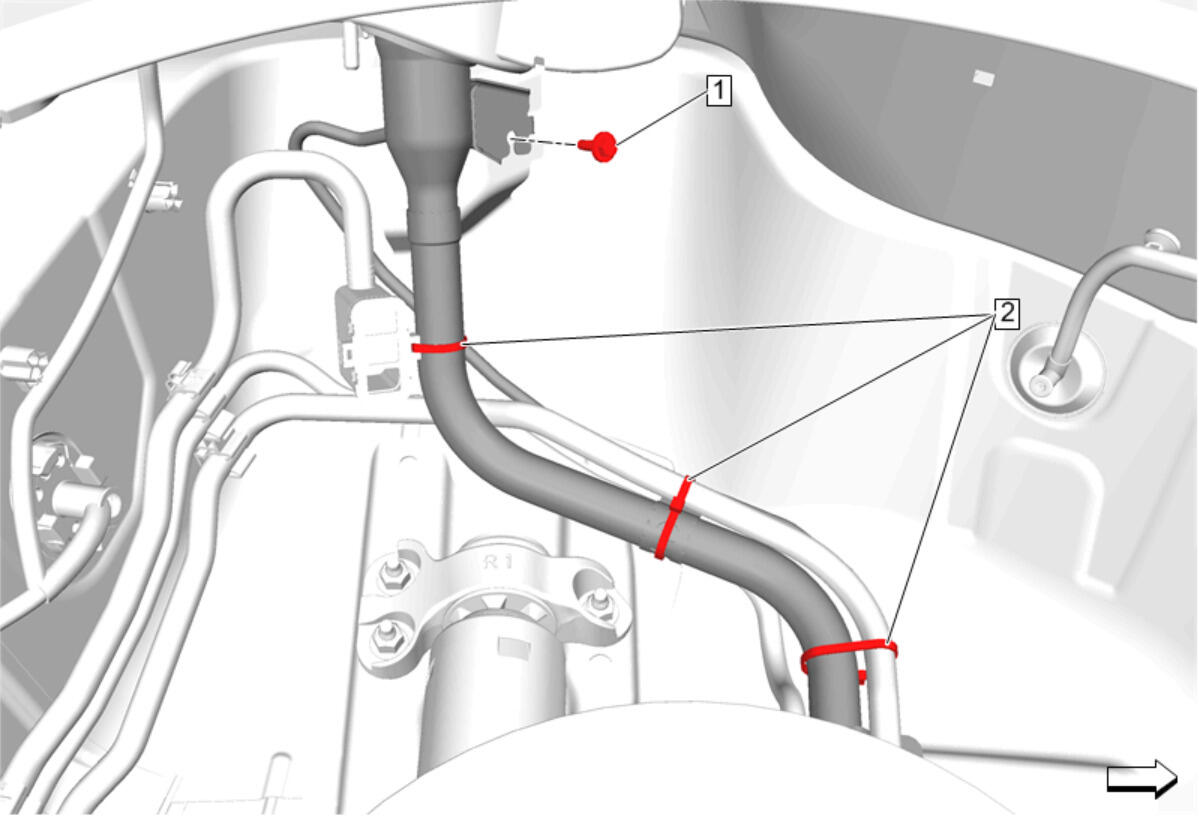

Fuel Tank Filler Pipe Ground Bolt (1) - Install - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

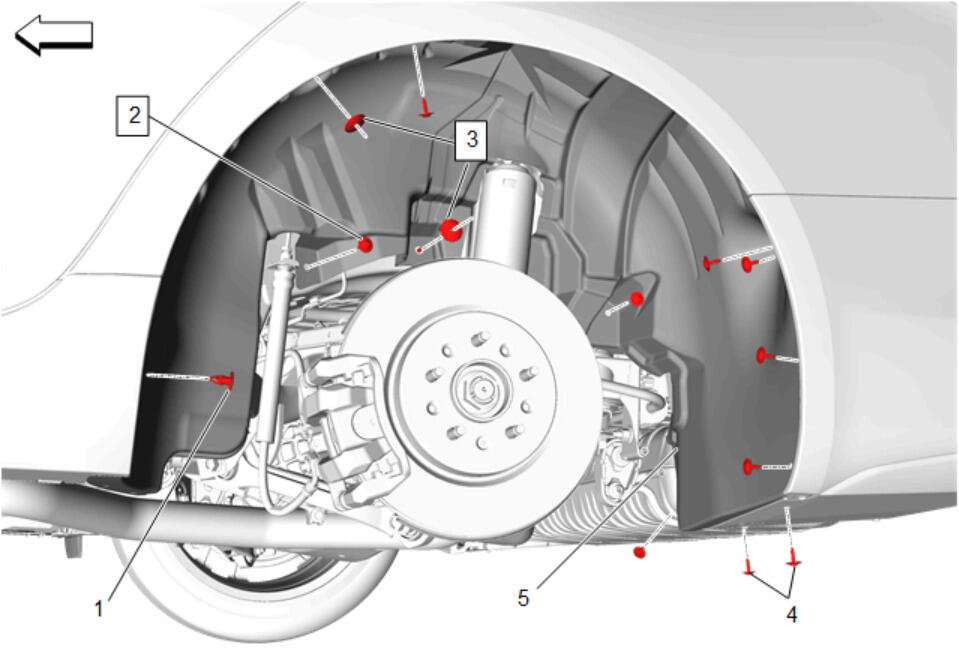

Rear Wheelhouse Liner (5) - Install
Rear Wheelhouse Liner Retainer (3) - Install [2x]
Rear Wheelhouse Liner Retainer (1) - Install
Rear Bumper Fascia Screw (4) - Install and tighten [2x] - Fastener Specifications
Rear Wheelhouse Liner Bolt (2) - Install and tighten [8x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

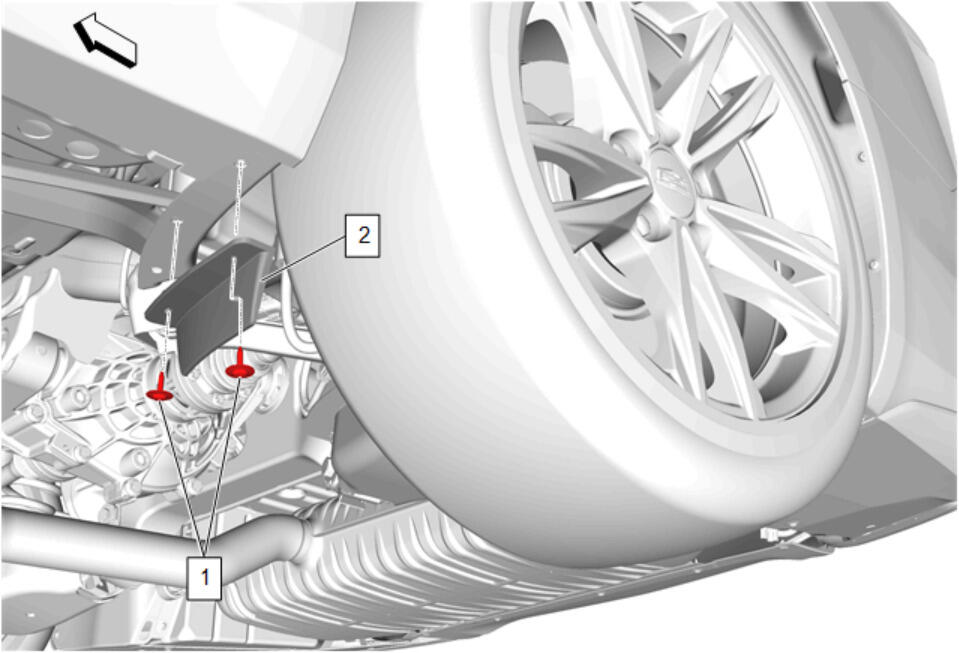

Rear Tire Front Air Deflector (2) - Install
Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
Lower the vehicle.
