Removal Procedure
WARNING:
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.
- Disable the SIR system. SIR Disabling and Enabling
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Radio Front Side Door Speaker Bolt (1) - Remove
- Radio Front Side Door Speaker (2) - Remove
- Disconnect the electrical connector.
Route front side door inside handle cable through hole in deflector (1).

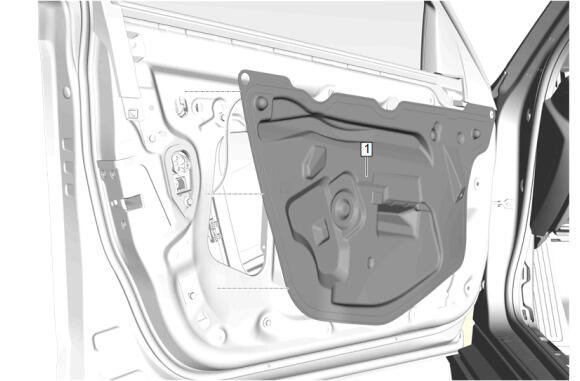

- Front Side Door Water Deflector (1) - Remove
Use a flat-bladed plastic tool to remove the push-in retainers.

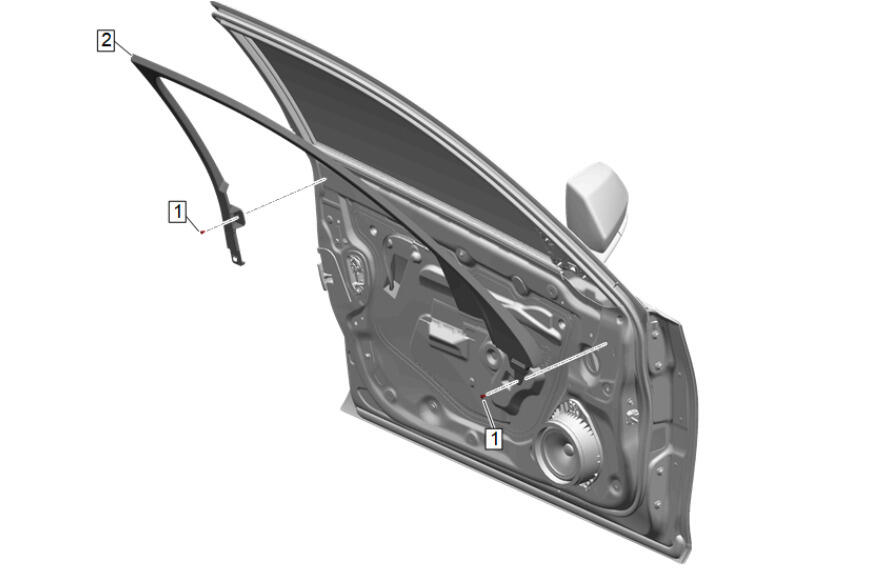

- Front Side Door Window Garnish Molding Retainer (1) - Remove [2x]
- Pull outward starting at the front and moving slowly rearward to remove the window garnish molding (2).
- Front Side Door Window Garnish Molding (2) - Remove
- NOTE:
Typical wiring harness shown, individual harness may be different due to option content.
Front Side Door Wiring Harness (1) - Remove
